Atdec TH-1040-CTL/S Bruksanvisning
Atdec
Inte kategoriserad
TH-1040-CTL/S
Läs gratis den bruksanvisning för Atdec TH-1040-CTL/S (2 sidor) i kategorin Inte kategoriserad. Guiden har ansetts hjälpsam av 46 personer och har ett genomsnittsbetyg på 4.5 stjärnor baserat på 23.5 recensioner. Har du en fråga om Atdec TH-1040-CTL/S eller vill du ställa frågor till andra användare av produkten? Ställ en fråga
Sida 1/2

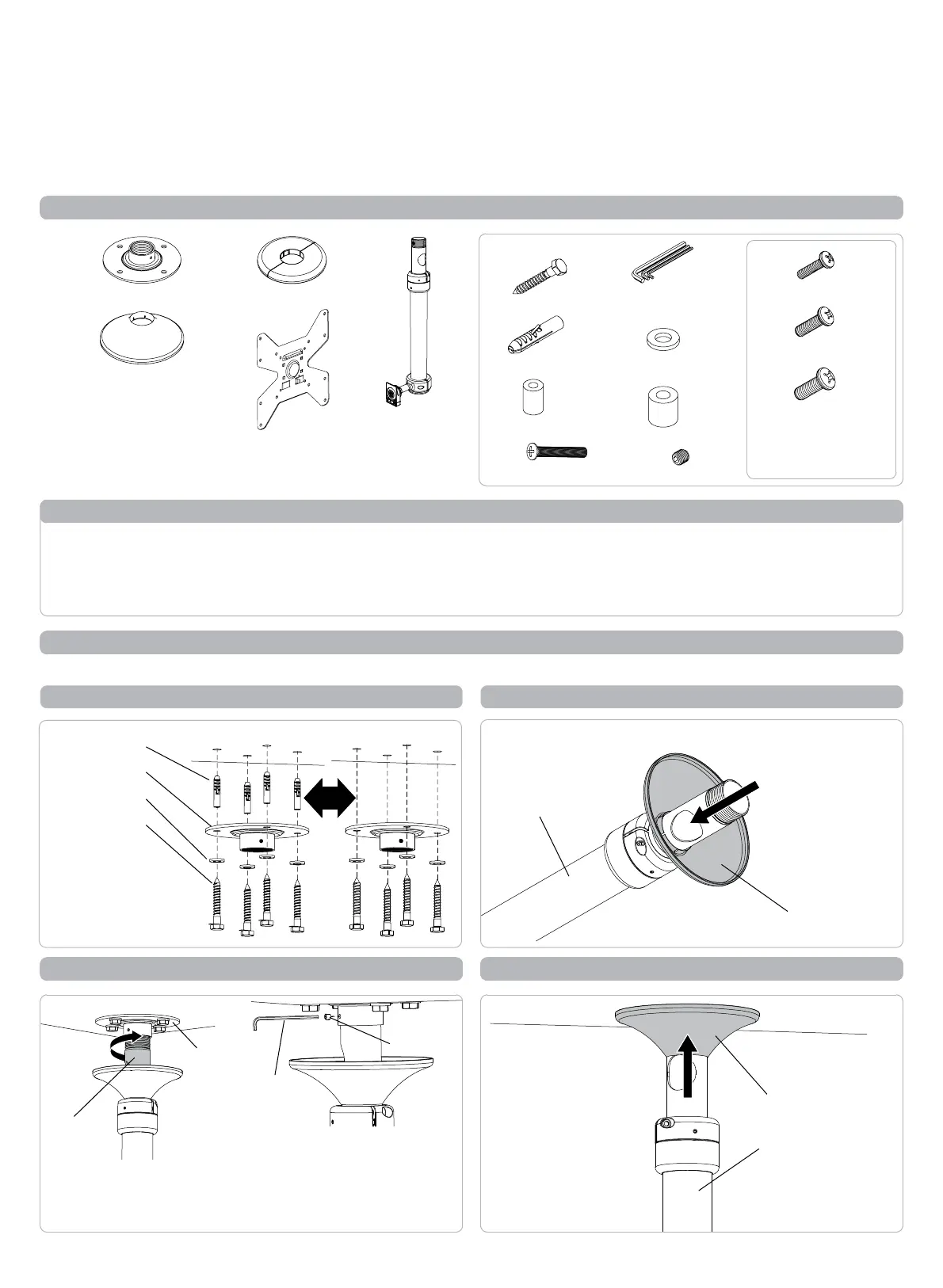

Component Checklist
Mounting Plate
Pole Assembly
VESA Plate
Mounting Plate Cover
Coach Screw (x4)
Nylon Anchor (x4)
M4/5/10 Washer
(x4 each)
Set Screw
M5/6 Spacer (x4)
M4/5 Spacer (x4)
(optional) Security Screw
2.5/3/5mm
Allen Key
M4x16/25mm (x4 each)
M5x16/25mm (x4 each)
M6x16/30mm (x4 each)
Pole Assembly
Mounting Plate Cover
PUSH
Screw Pole Assembly
A.
into Mounting Plate by
twisting top half of the
Pole Assembly only.
Pole
Assembly
Mounting Plate
TWIST
3mm
Allen Key
Set Screw
Insert Set Screw into the
B.
Mounting Plate to lock the
Pole Assembly in position.
Pole Assembly
Mounting Plate
Cover
PUSH
TH-1040-CTS
TH-1040-CTL
Ceiling Tilt Short Mount / Ceiling Tilt Long Mount
IMPORTANT INFORMATION:
Step 1. Check Components
Check you have received all parts against the Component Checklist and Hardware above.
Step 2. Install Mounting Plate
Step 4.
Attach Pole Assembly to Mounting Plate
! IMPORTANT - Install 1040 Ceiling Tilt Mount (Short/Long) as per Installation Instructions.
! This product supports a maximum load of 25kg (55lbs).
! This product supports VESA mounting hole configurations 75x75mm, 100x100mm, 200x100mm, 200x200mm.
! The manufacturer accepts no responsibility for incorrect installation.
Step 5. Position Mounting Plate Cover
Step 3. Install Mounting Plate Cover
Display Mounting
Screws
Hardware
Tools Required:
Power drill
•
7mm
(¼”)
drill bit
•
12mm
(½”)
masonry drill bit
•
Phillips head screw driver•
17mm
(
11
/
16
”)
Socket Wrench or Shifter
•
Masonry Ceiling
Timber Ceiling
Using the Mounting
Plate
as a template, mark
out
and drill
4x Ø7mm
(¼”)
holes,
Ø12mm
(½”)
for masonry
ceilings,
70mm
(2.75”)
deep.
OR
Nylon Anchor
Mounting Plate
Coach Screw
M10 Washer
False Ceiling Cover
TH-1040-CTSW
TH-1040-CTLW
Installation Instructions
