Sida 1/1
Hardware
TH-1040-RCA

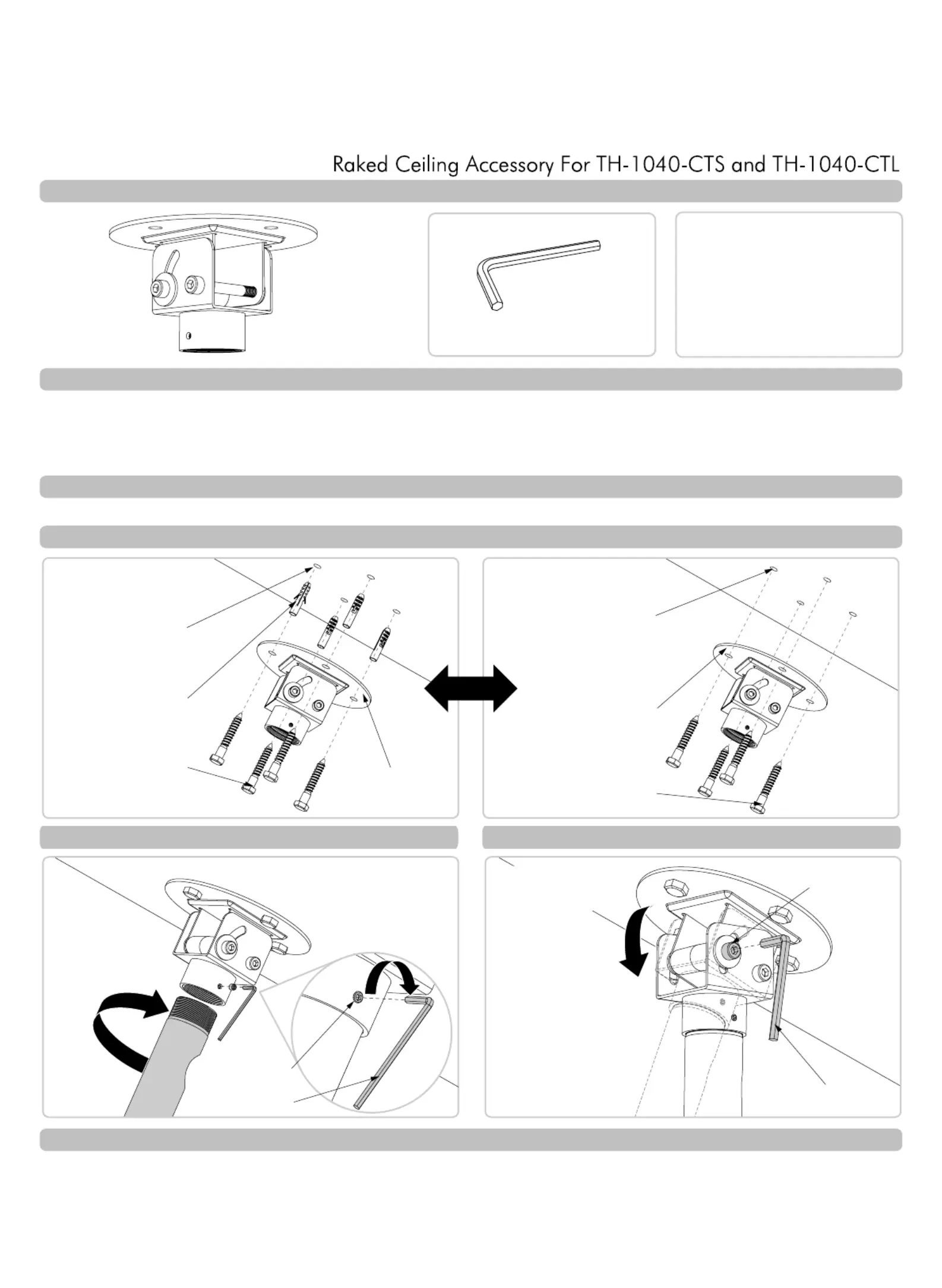

Components Checklist
IMPORTANT INFORMATION
! IMPORTANT - Install 1040 Raked Ceiling Accessory as per Installation Instructions.
! This product is to be installed in conjuction with TH-1040-CTS and TH-1040-CTL Ceiling Mounts only.
! Supports maximum angle of 45°.
! The manufacturer does not accept responsibility for incorrect installation.
Step 1. Check Components
Step 2. Mount Ceiling Adapter to Ceiling using hardware supplied with TH-1040-CTS/TH-1040-CTL
Tools Required:
•
Power Drill
•
7mm
(0.25”)
drill bit
• 12mm
(0.5”)
masonry drill bit
• 17mm
(0.69”)
Socket Wrench
or Shifter
Check you have received all parts against the component checklist and Hardware above.
6mm Allen Key
Raked Ceiling
Adapter
(use hardware from
TH-1040-CTS or TH-1040-CTL)
Step 3. Install Pole
Installation Complete, continue with installation of TH-1040-CTS/TH-1040-CTL from Step. 6 onwards.
Step 4. Adjust Angle
Masonry Ceiling Timber Ceiling
Coach Screw (x4)
Raked Ceiling
Adapter
Nylon Anchor (x4)
12mm
(0.5”)
Hole
Coach Screw (x4)
Raked Ceiling
Adapter
7mm
(0.25”)
Hole
A. SCREW IN
POLE
B. INSERT
SET SCREW
A. LOOSEN
SOCKET CAP
SCREW
B. SET ANGLE
OF POLE
C. TIGHTEN
SOCKET CAP
SCREW
OR
Set Screw
3mm Allen Key
Set Screw and 3mm Allen Key from TH-1040-CTS or TH-1040-CTL
6mm Allen Key
Socket Cap
Screw
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without noticed. Published 07.06.10 ©
Installation Instructions
