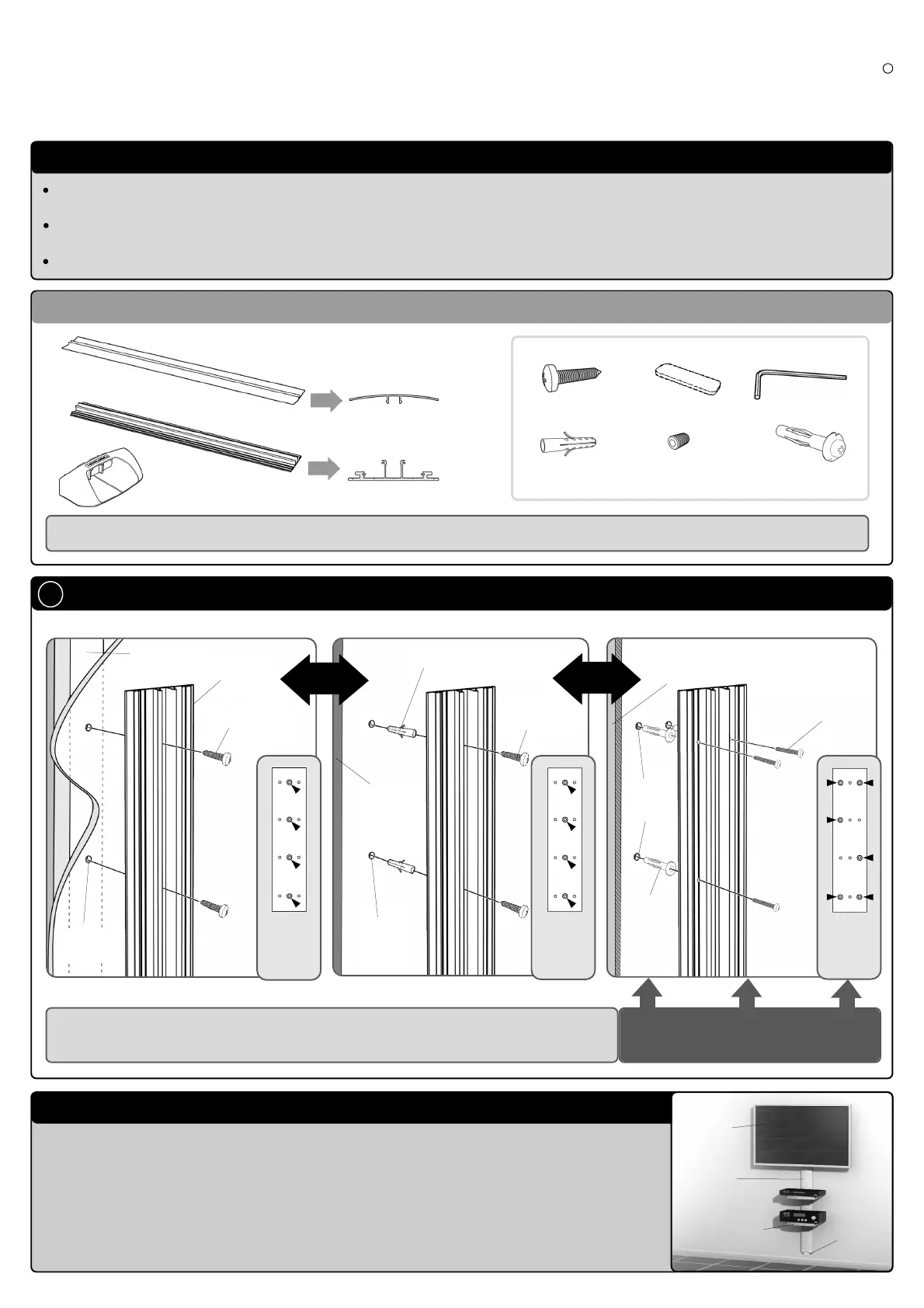

Sida 1/2

Dry Wall Anchor

Screw

Component Checklist

Installation Instructions

TELEHOOK

Cable Manager

Wall Plate

10g x 30mm

Screw (x4)

(Check you have received all parts against the Component Checklist below)

End Cap (x2)

Cable Tabs (x8)

A Mount the Wall Plate

Mounting Tips:

Nylon Wall

Plug (x4)

4mm (

”)

hole

10g x 30mm

screw

Nylon Wall Plug

6mm

(

”)

hole

Wall Plate

Telehook

Cable

Manager

Display

Timber Stud Wall

Masonry

Optional Shelf

(sold separately)

Dry Wall

Anchor (x6)

Telehook Cable Manager has been designed to hide the cables of a wall mounted display.

Therefore, it is recommended that it is mounted vertically and centrally below your display.

The adjoining image shows a typical Cable Manager installation.

Ideally, the top of Telehook Cable Manager should sit just under the lower edge of your display

with the bottom of Telehook Cable Manager (i.e. the End Cap) sitting approximately 50mm (2")

above the floor or skirting board.

IMPORTANT: Ensure the lower edge of the Wall Plate is positioned no less than 50mm

(2”) above the skirting board so that there is enough room to accommodate the End Cap

Front Fascia

Tools Required: z Power drill z 4mm (

”) drill bit z 6mm (

”) drill bit z Phillips head screwdriver

M4 x 5mm Grub

Screw (x4)

Timber Stud

Dry Wall

Mounting

Hole

Pattern

Dry

Wall

Anchor

Mounting

Hole

Pattern

To determine the best position for your Cable Manager, see “Mounting Tips” below

6mm

(

”)

hole

IMPORTANT: For Dry Wall Installation

use alternating mounting holes

10g x 30mm

screw

Masonry

Wall

Dry Wall

2mm Allen Key

End Cap

End Profile

Bits Box

It is recommended that your display be installed prior to the installation of this product.

If you wish to paint your Cable Manager, please consult your paint specialist for advice.

Surface finish: Clear Anodised Aluminium

IMPORTANT NOTES

Mounting

Hole

Pattern

Produktspecifikationer

Varumärke:	Atdec
Kategori:	Platt panelstöd
Modell:	TH-AN-CM
Bredd:	116 mm
Djup:	28 mm
Höjd:	1096 mm
Produktens färg:	Silver
Material, hölje:	Gjuten aluminium
Monteringssätt:	Vägg
Vikt (imperial):	176 lbs
Vikt (max):	80 kg
