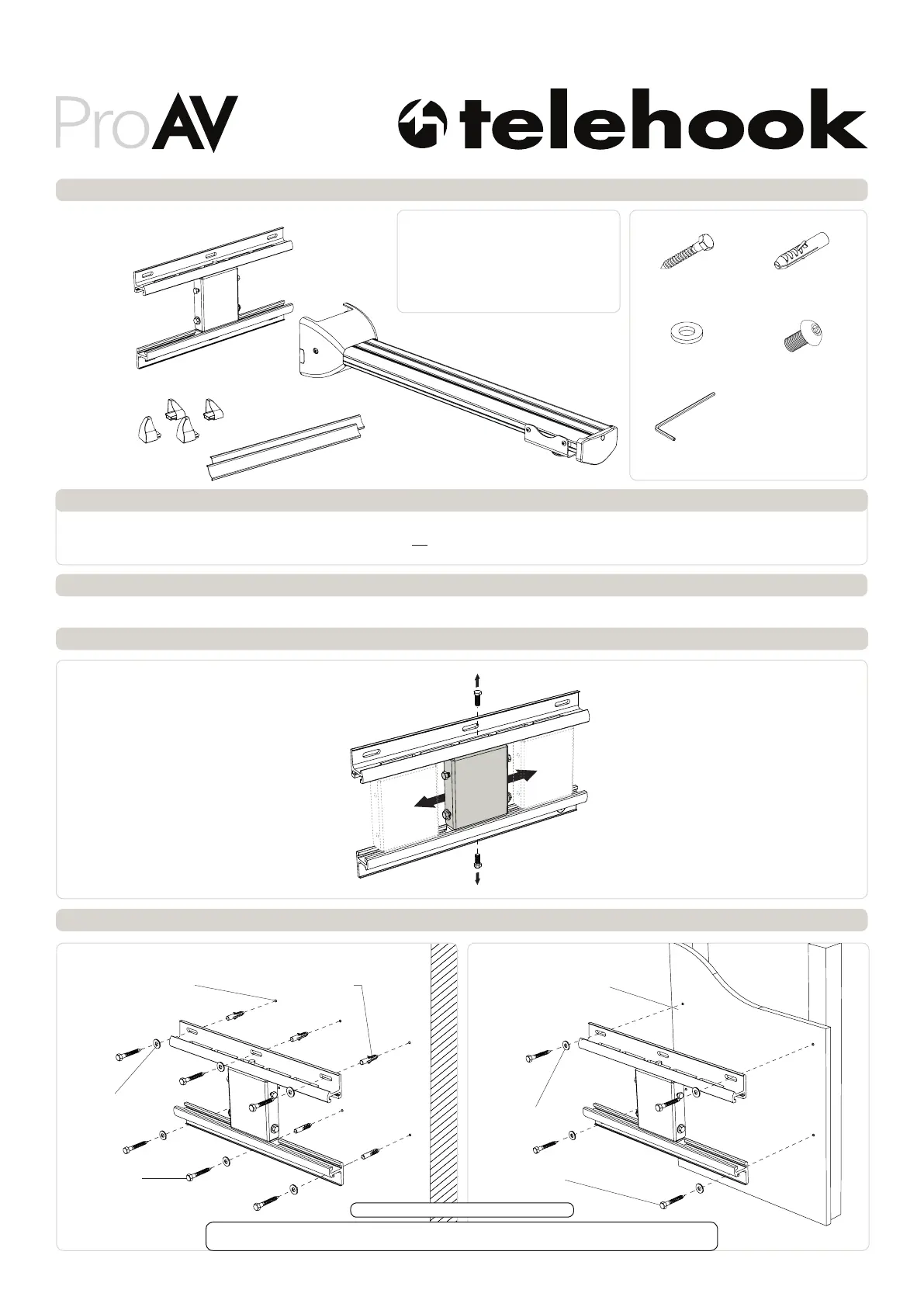

Step 2. Position Central Connector

Select the position of the Central

Connector before mounting the

Wall Plate to the wall.

TH-PS-D

Component Checklist

Short Throw Projector Wall Mount | Dual Stud

Support Arm

! IMPORTANT - Install Telehook Short Throw Projector Mount as per installation instruction.

! This product supports a maximum load of 25kg (55lbs.).

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received against the component checklist and hardware above.

Wall Plate

End Covers

Extrusions

HARDWARE

Coach Screw

(x6)

Nylon

Anchor (x6)

Washer (x6)

3mm Security

Allen Key

Security Screw (x2)

Tools Required:

• Power Drill

• 6mm(0.23”) Drill Bit

• 12mm(0.47”) Masonry Drill Bit

• 13mm (0.5”) Socket Wrench Shifter

• Phillips Head Screwdriver

Step 3. Mounting Wall Plate

MasonaryTimber Stud

Coach Screw

Coach Screw

Washer

Washer

Ø12mm x 65mm deep

Drilled Hole

Ø6mm x 65mm deep

Drilled Hole

Nylon Anchor

IMPORTANT! Any structural elements must be capable of supporting the combined weight of

all the equipment and devices being mounted. If in doubt, consult a structural engineer.

TIP: Use Mount as a drilling template.

Installation Instructions
