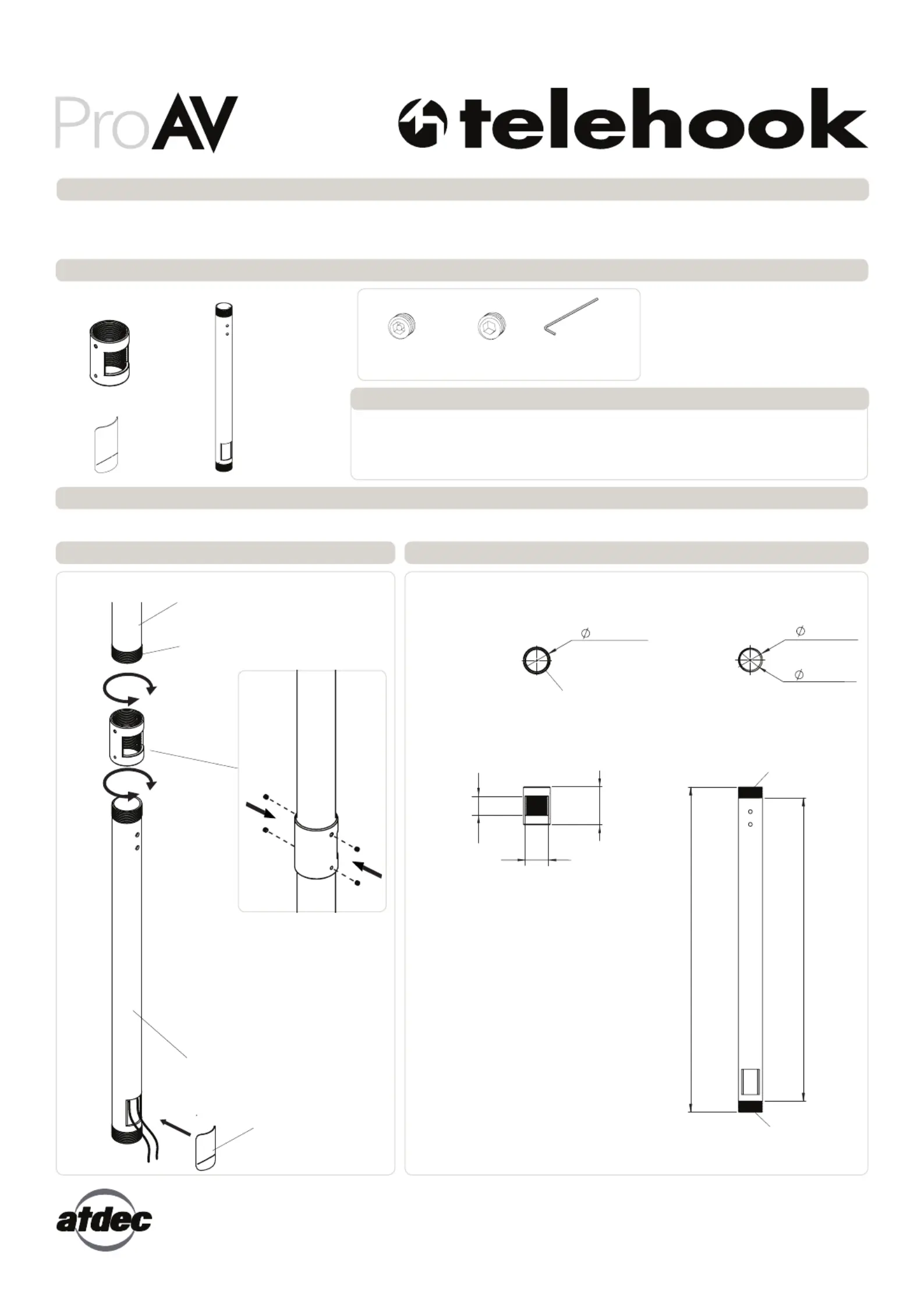

Step 2. Assembly

TH-PPE-24

Component Checklist

! IMPORTANT - Install Telehook Projector Pole as per

installation instruction.

! This product supports a maximum load of 454kg (1000lbs.).

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received all parts against the component checklist and hardware above.

Pole Connector

Plastic Cover

HARDWARE

Set Screw

(x4)

Security Screw

(x4)

Extension Pole

2.1. When pole & connector are

in place, secure by inserting the 4

Standard OR Security Set Screws

using the supplied Allen key.

Removable

Plastic Cover

Existing Installation

Thread must be 1.5”

NPT

Extension

Pole

Technical Specifications

54mm (2.1”)

76mm

(3”)

24”

(609.6mm)

649.6mm

(25.5”)

1.5”NPT

48mm

(1.9”)

2.5mm Security

Allen Key

41.8mm

(1.6”)

Installation Instructions & Technical Specifications

General Features

Maximum Weight:

454kg (1000lbs)

Pole Compatibility: Colour: Warranty:

1.5” NPT White 10 years

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 24.05.13 ©

39.1mm

(1.5”)

47.3mm

(1.8”)

24” (610mm) Fixed Length Projector Pole Accessory

Note: Pole can be installed in

reverse orientation.
