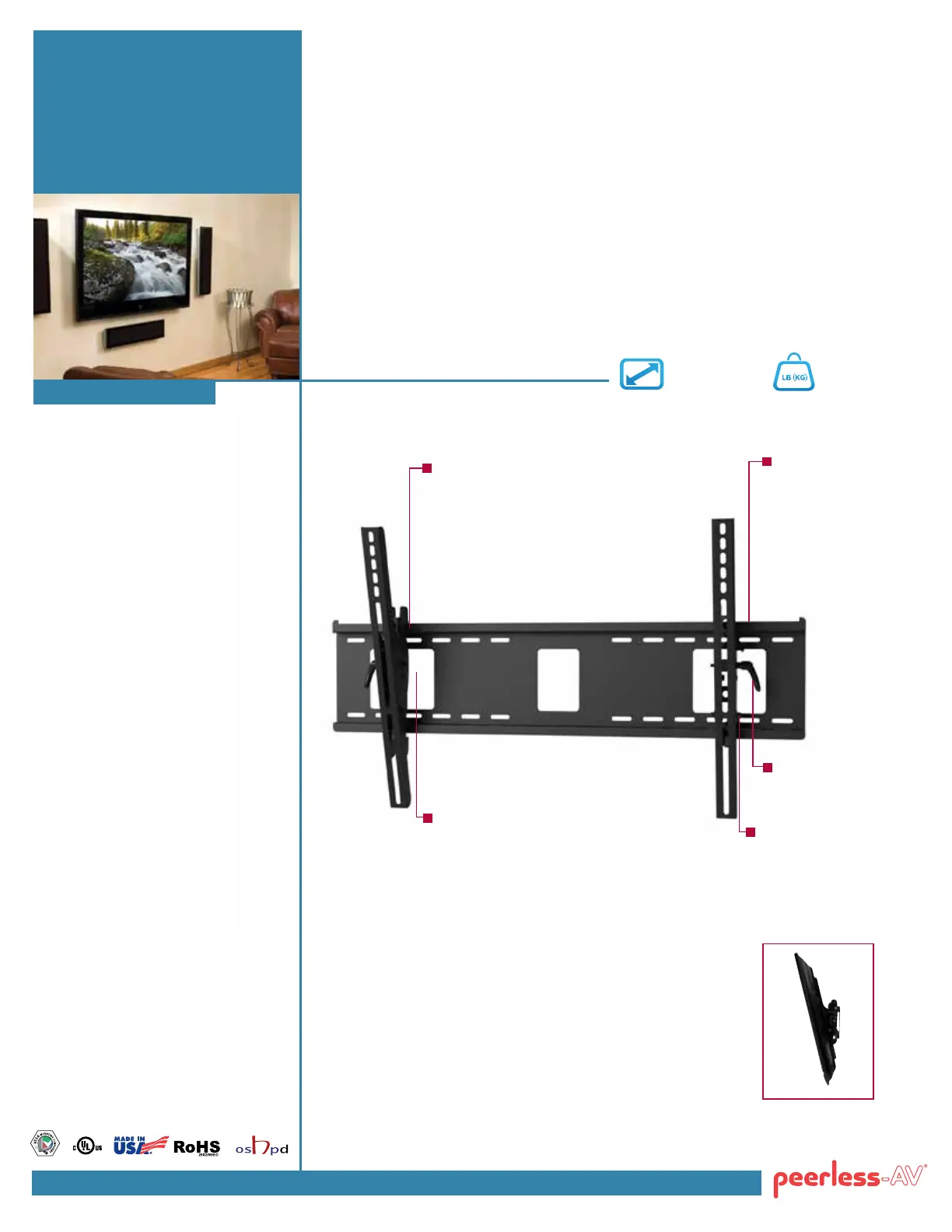

Universal Tilt Wall Mount

for 39" to 80" Displays

Easily install larger displays with this simple, intuitive mounting solution. Its simple three step

installation combined with its tool-less tilt angle adjustment enables displays to be installed

and adjusted quickly. Cables are easily managed behind the display with access ports in the

wall plate. For perfect display positioning, center the display by smoothly sliding it along the

horizontal rails of the wall plate.

Tilt adjustment of +15/-5°

Display size: 39"-80" Max load: 200lb (91kg)

PT660

 Universal mount

accommodates displays

with mounting hole

patterns up to 738 x 449mm

(29.04" W x 17.67" H)

 Adjustable up to 15° of

forward tilt and up to -5°

backward tilt for optimal

viewing angle

 Easy-Grip

handle locks the

display position into place

 Wall access ports for easy

access to electrical

outlets and cable

management

 Horizontal display

adjustment of up to 8"

(203mm) (depending on

display model) for perfect

display placement

 Mounts to wood studs,

concrete, cinderblock or

metal studs (metal stud

accessory required)

 Comes with fastener pack

with all necessary screen

attachment hardware

 UL Listed

FEATURES

WALL ACCESS

Wall plate knockouts allow

for wall access improving

cable management options

EASY INSTALLATION

Simple hook-on design

makes installation quick

and easy

VIEWING

FLEXIBILITY

Horizontal display

adjustment up to

8" (203mm)

INCRELOK

Optional tilt angle

lock in 5° increments

CLICK: peerless-av.com CALL: 800.865.2112 FAX: 800.359.6500

IDEAL VIEWING ANGLE

Tilt adjustment of +15/-5°

without the use of tools

Patented. Utility Patent No. 8,517,322 8,282,059 8,313,073.

A R C H I T E C T S S P E C I F I C A T I O N S

LIT-0486 Rev.4

PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE

PT660

31.8" x 8.63" x 3.88"

(808 x 219 x 99mm)

10.5lb (4.8kg) 735029254898

Wall plate, universal

adaptors, mounting

and display attachment

hardware

Package Speciﬁcations

Accessories

DIMENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITY FINISH AVAILABLE COLORS

PT660

30.75" x 18.50" x 2.56"-5.64"

(781 x 470 x 65-143mm)

9.6lb (4.4kg) 200lb (91kg) Matte Black

Product Speciﬁcations

Model Numbers

WARRANTY: Limited 5-year

ACC925: Security Fasteners

ACC415: 4-pack Metal Stud Fastener Kit

All dimensions = inch (mm)

PT660 Universal Tilt Wall Mount for 39" to 80" Displays

FRONT VIEW

SIDE VIEW

15° TILT

VERTICAL ADAPTER

SIDE VIEW

29.04"

MAX.

(738mm)

17.67"

MAX.

(449mm)

33.16"

(842mm)

2.75"

(70mm)

4.50"

(114mm)

4.00"

(102mm)

2.56"

(65mm)

5.64"

(143mm)

15°

30.75"

(781mm)

1.00"

(25mm)

7.45"

(189mm)

5.00"

(127mm)

16.00"

(406mm)

20.00"

(508mm)

24.00"

(610mm)

18.50"

(470mm)

0.85"

(22mm)

0.75"

(19mm)

1.25"

(32mm)

WALL PLATE

The Universal Tilt Wall Mount shall be a Peerless-AV model PT660 and shall be located where indicated on the plans.

Assembly and installation shall be done according to instructions provided by the manufacturer.
