Installation and Assembly:

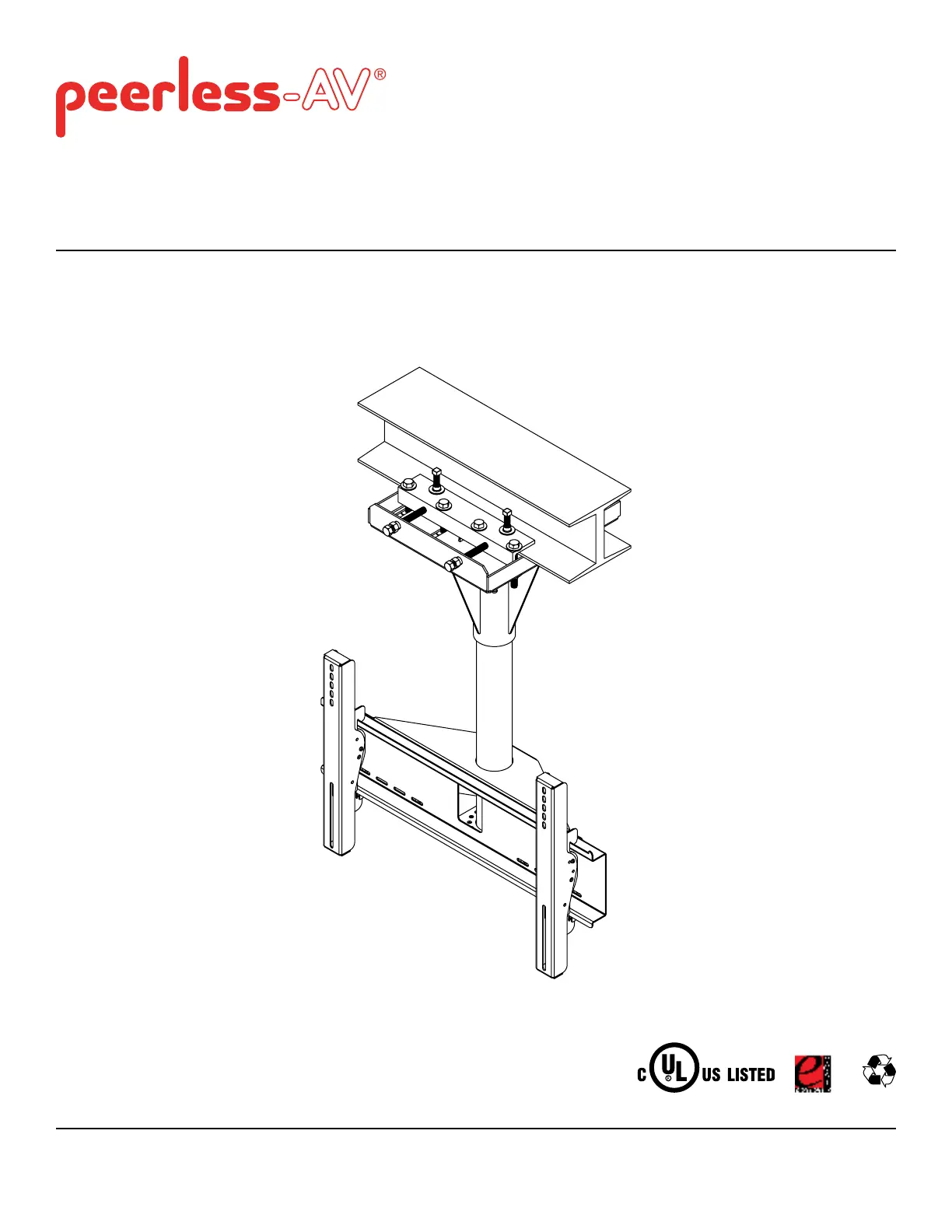

Wind Rated I-beam Tilt Mount for 32" - 65" Outdoor Flat Panel

Displays

Models: ECMU-01-I, ECMU-01-I-S, ECMU-02-I, ECMU-02-I-S

ECMU-03-I, ECMU-03-I-S, ECMU-04-I, ECMU-04-I-S

Max Wind Rating: 90 mph, elevation 200 ft, Category D

ISSUED: 06-22-10 SHEET #: 061-9055-7 07-08-15

Max UL Load Capacity: 200 lb (90.7 kg)

2 of 36

ISSUED: 06-22-10 SHEET #: 061-9055-7 07-08-15

NOTE: Read entire instruction sheet before you start installation and assembly.

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US

customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact

your local distributor.

• Due to outdoor environmental conditions such as strong wind gusts, heavy snow, hail, rain, etc. The environmental

enclosure, together with its mount, extension tube and hardware, must be inspected at least once a year, and

immediately following any time winds exceed 90 mph. A qualied installer or inspector must check for signs of rust,

loose fasteners, bent metal, etc. If evidence of excessive wear, deterioration or any unsafe condition is observed,

this product must be taken out of service immediately. Direct all inquiries to customer care if you have any

questions.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardware and components.

• Never exceed the Maximum UL Load Capacity. See page one.

• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of

an "edge to edge" stud nder is highly recommended.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

• This product was designed for use with other outdoor products only.

WARNING

Tools Needed for Assembly

• phillips screwdriver, 5/32" allen wrench, 3/16" allen wrench

• level

Table of Contents

Parts List.................................................................................................................................................................................3

Installation to I-beam ..............................................................................................................................................................4

Installing Tilt Brackets .............................................................................................................................................................7

Mounting and Removing Flat Panel Screen ...........................................................................................................................8

Produktspecifikationer

Varumärke:	Peerless-AV
Kategori:	plattskärmsfäste
Modell:	ECMU-01-I
Vikt:	29000 g
Bredd:	498 mm
Djup:	381 mm
Höjd:	781 mm
Maximal skärmstorlek:	65 "
Minsta skärmstorlek:	32 "
Maxvikt:	90.7 kg
Maximalt avstånd till tak:	382 mm
Produktens färg:	Svart
Vikt inkl. förpackning:	32000 g
Monteringssätt:	Tak
Antal displayer som stöds:	1
Monteringsgränssnitt kompatibilitet (min):	600 x 400 mm
Monteringsgränssnitt kompatibilitet (max):	600 x 400 mm
