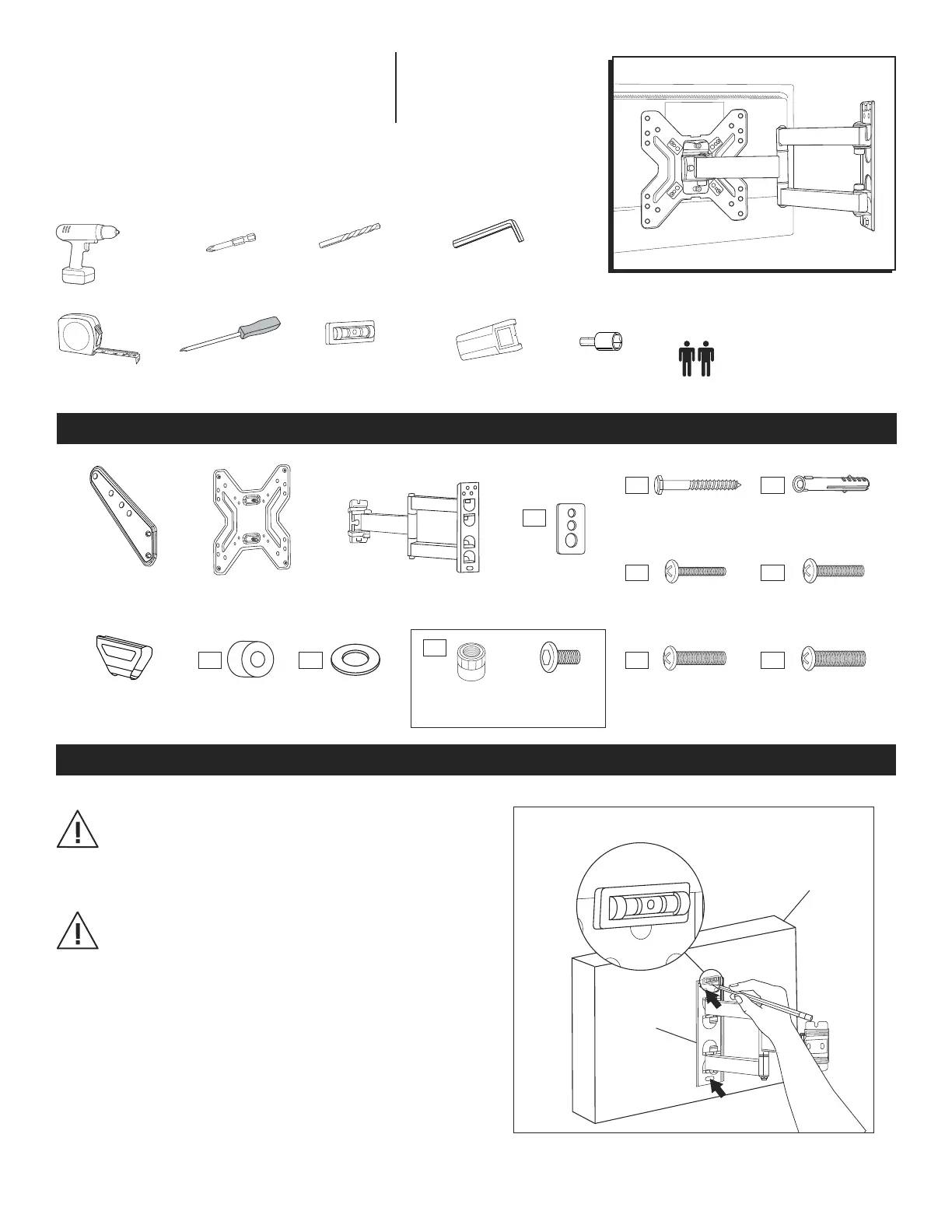

PAGE 1 OF 120223 IH-10161
H-10161
WALL MONITOR MOUNT –
17-50" FULL MOTION
1-800-295-5510
uline.com
π
TOOLS NEEDED
Electric
Drill
3/16" Drill Bit
3/8" Drill Bit
4 x 4 mm Allen Wrench
5 x 5 mm Allen Wrench
(included)
Magnetic Level
(included)
Stud Finder
Phillips
Screwdriver
Tape Measure
Phillips Head
Drill Bit
Two-Person Assembly
Recommended
INSTALLATION
CAUTION! This product is designed to be
installed on solid concrete walls or drywall
with wood studs. Before installing, make sure
the wall will support the combined load of the
equipment.
CAUTION! Be careful not to scratch the monitor
screen during assembly.
ATTACHING TO WALL
CONCRETE WALL
1. Align wall plate in desired location. Place level on
top of the wall plate to ensure it is leveled correctly.
Mark where holes for screws are to be located.
(See Figure 1)
Figure 1
Concrete
Wall
Level
PARTS
Wall
Plate
M4 x 20 mm Bolt x 4M5 x 20 mm Bolt x 4
Spacer x 4
Washer x 3
Lag Screw x 3
M6 x 20 mm Bolt x 4
M8 x 20 mm Bolt x 4
Adapter x 4
Cable Management
Clip x 1
Monitor Plate x 1Wall Plate x 1
Square
Washer x 4
Plastic Anchor x 3
M6 Nut x 2M6 x 6 mm
Bolt x 8
A5B3
B4
A6
B1
A1
A3
B2
A2
A4
13 mm Socket
Para Español, vea páginas 5-8.
Pour le français, consulter les pages 9-12.
