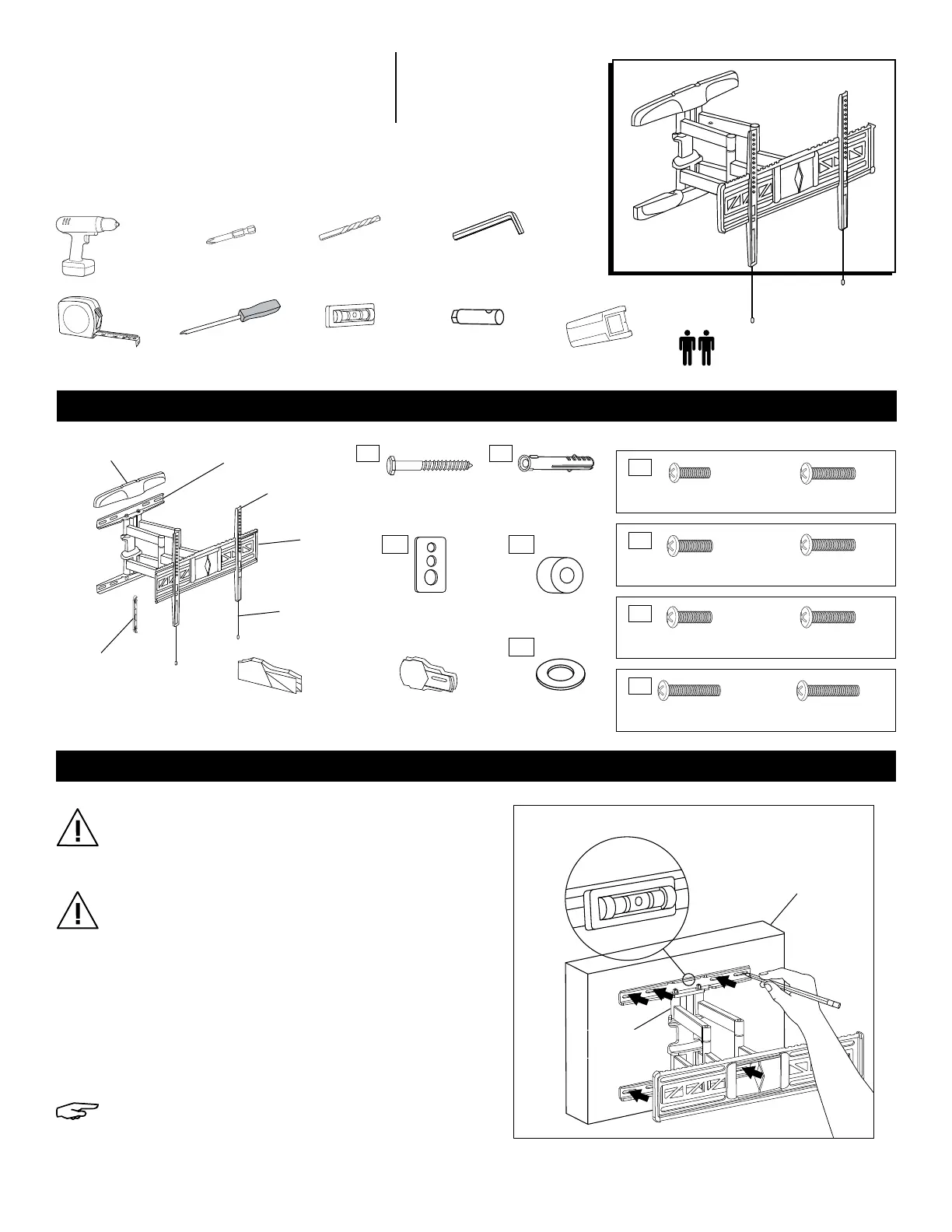

PAGE 1 OF 14 0924 IH-10162
H-10162
WALL MONITOR MOUNT –
32-80" FULL MOTION
1-800-295-5510
uline.com
π
TOOLS NEEDED
Electric
Drill
3/16" Drill Bit
3/8" Drill Bit
6 x 6 mm Allen Wrench
(included)
Magnetic Level
(included)
Box Wrench
(included)
Stud Finder
Phillips
Screwdriver
Tape Measure
Phillips Head
Drill Bit
Two-Person Assembly
Recommended
INSTALLATION
CAUTION! This product is designed to be
installed on solid concrete walls or drywall with
wood studs. Before installing, ensure wall will
support the combined load of the equipment.
CAUTION! Be careful not to scratch the monitor
screen during assembly.
ATTACHING TO WALL
CONCRETE WALL
1. Align wall plate in desired location. Place level on
top of the wall plate to ensure it is leveled correctly.
Mark where holes for screws are to be located.
(See Figure 1)
NOTE: Mark four hole locations on the top
section of wall plate, and two hole locations
on the bottom section.
Figure 1
Concrete
Wall
Level
Wall
Plate
PARTS
M5 x 25 mm Bolt x 4
M6 x 25 mm Bolt x 4
M4 x 25 mm Bolt x 4
M5 x 12 mm Bolt x 4
M6 x 12 mm Bolt x 4
M4 x 12 mm Bolt x 4
Spacer x 4
Washer x 6
Cable Management
Clip A x 4
Cable Management
Clip B x 2
Lag
Screw x 6
M8 x 25 mm Bolt x 4M8 x 16 mm Bolt x 4
Square
Washer x 4
Plastic
Anchor x 6
Monitor
Plate x 1
Bracket
String x 2
Bracket x 2
Plastic Cover x 2Wall Plate x 1
Plastic
Cap x 2
B1
A6A5
B3
B2
A1
A2
A3
A4
Para Español, vea páginas 5-9
Pour le français, consulter les pages 10-14
