INSTALLATION INSTRUCTIONS

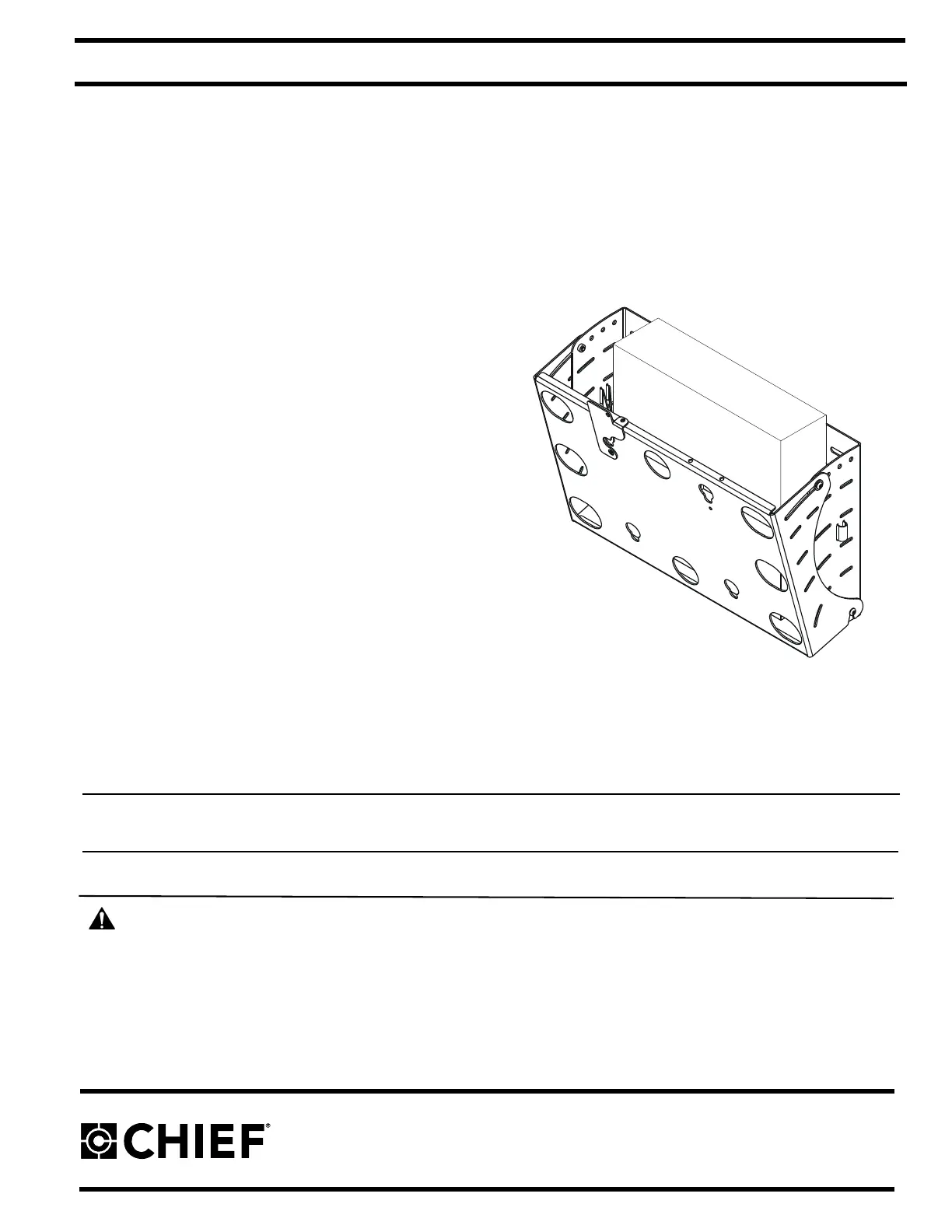

MEDIUM FLAT PANEL TILT WALL MOUNT WITH INTEGRATED

CPU

Model: MWC Series

Specifications:

• Accommodates three installation options:

- Dual Wood Stud (16" on-center; requires

5/16" x 2-1/2" long hex head lag screws -

included)

- Dual Steel Stud (requires Chief PAC-115 Steel

Stud / Drywall Anchor Kit - not included)

- Drywall (1/2" minimum; requires Chief PAC-

115 Steel Stud / Drywall Anchor Kit - not

included)

• Accommodates CPU up to approximately 18-3/4"

x 3-3/4"; see "DIMENSIONS" for specific details.

• Infinite display tilt adjustment between 0-15° with

positive stops at 0°, 5°, 10°, and 15°.

• Weight capacity of 100 lbs (45 kg).

NOTE: Requires display interface providing 200x200mm

mounting button pattern; not included.

WARNING: It is the installer’s responsibility to make sure all components are properly assembled and installed using

the instructions provided. Failure to read, thoroughly understand, and follow all instructions can result in serious

personal injury, damage to equipment, or voiding of factory warranty.

• If you have any questions about this these instructions or your specific installation, contact Chief Manufacturing

at 1-800-582-6480 or 952-894-6280.

BEFORE YOU BEGIN

CHIEF MANUFACTURING INC.

1-800-582-6480 952-894-6280 FAX 952-894-6918

8401 EAGLE CREEK PARKWAY, STE 700

SAVAGE, MINNESOTA 55378 USA

8804-000296 RevB

www.chiefmfg.com

10/07

Model: MWC Series Installation Instructions

IMPORTANT WARNINGS AND CAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or

damage to equipment! It is the installer’s responsibility to make sure the structure to which this component is

attached can support five times the combined weight of all equipment. Reinforce the structure as required before

installing the component.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of all components attached to the MWC Series Wall

Mount, including the CPU and display, does not exceed 100 lbs (45 kg).

WARNING: Make sure the latch securing the display is fully closed at all times except when removing or installing

the display. The latch must be fully closed when installing or removing cables from the display.

WARNING: Allowing any part of your body or component cables to be caught between movable parts can result in

serious personal injury or damage to equipment!

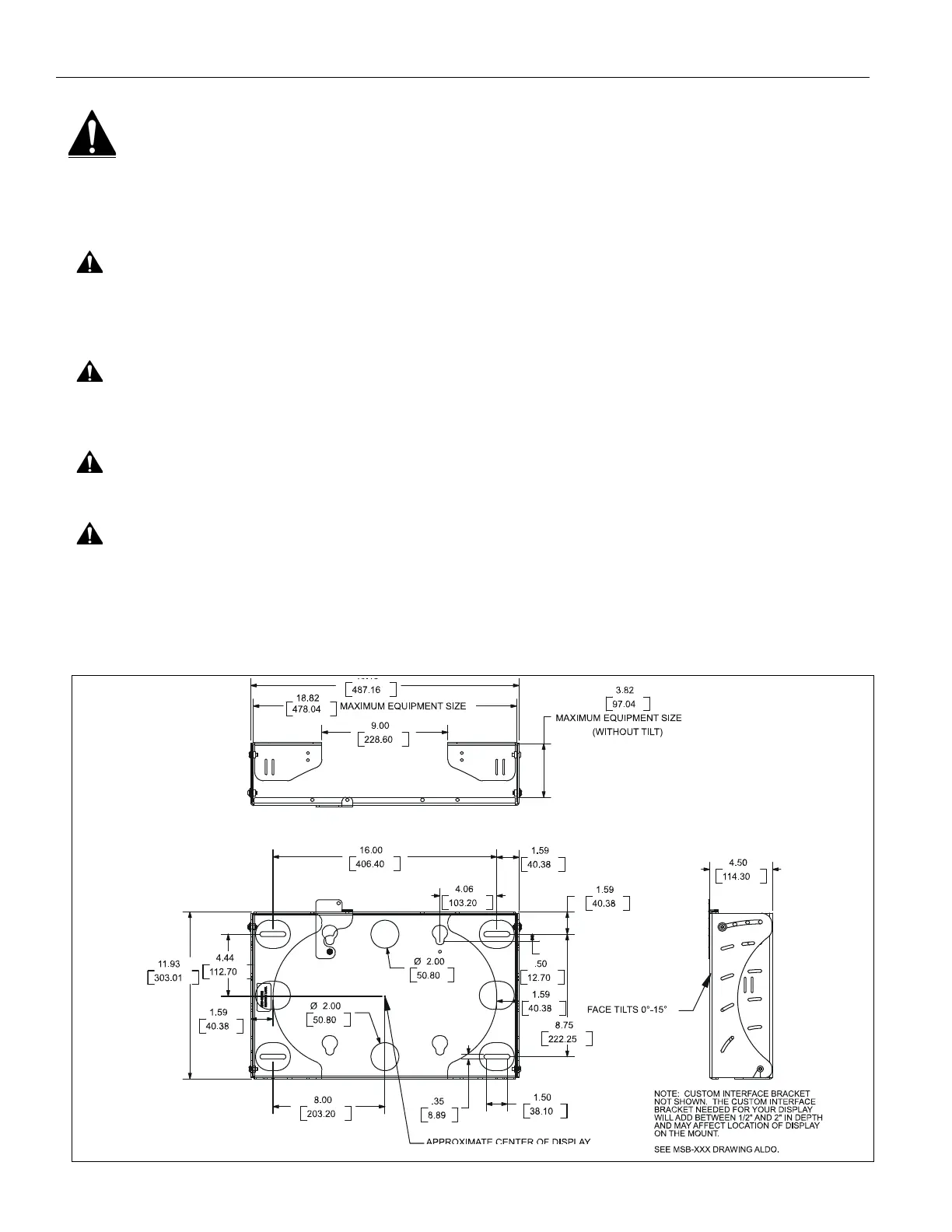

DIMENSIONS
