888-47-019-02 rev. N • 03/09

1 of 8

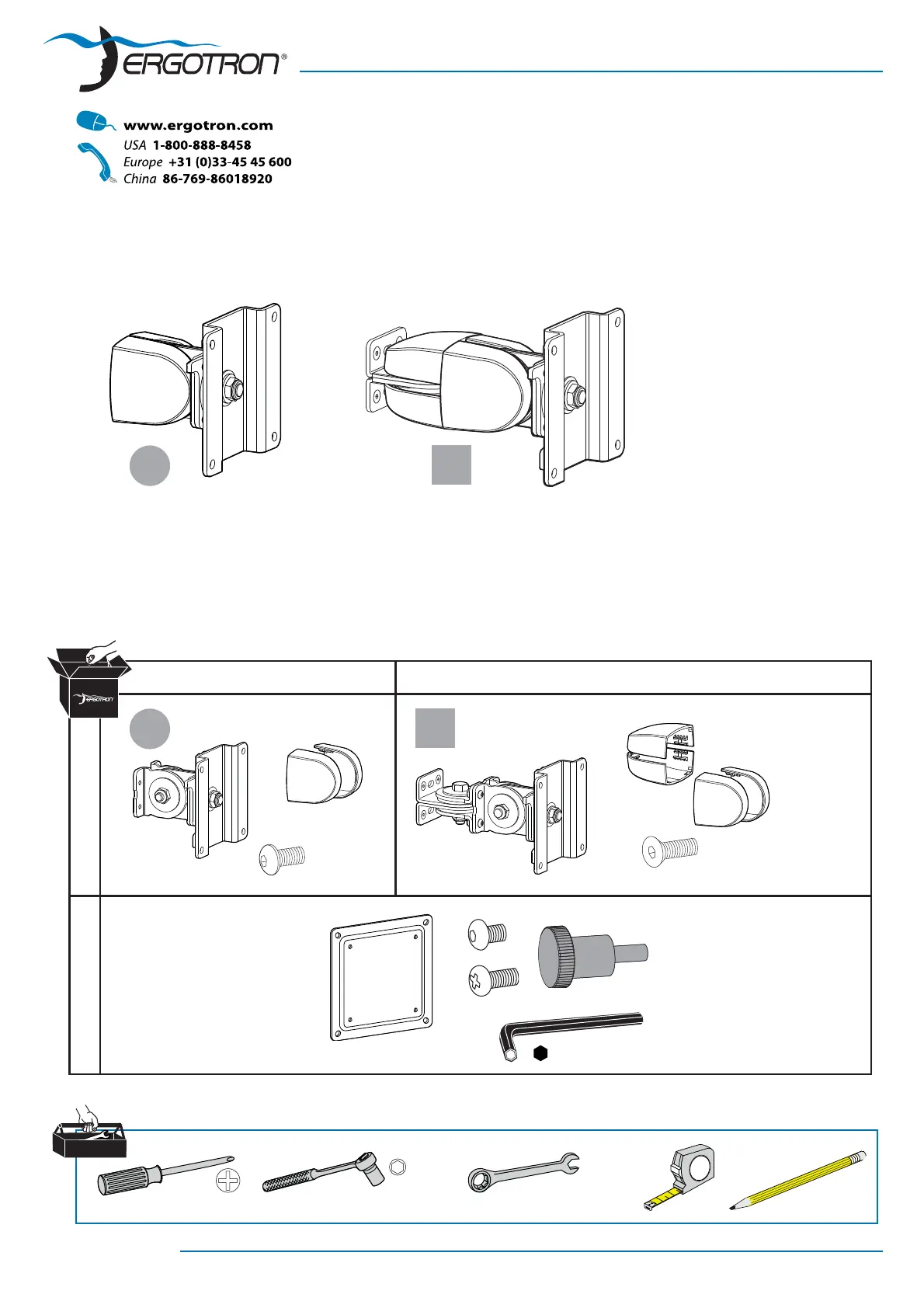

100 Series Flat Panel Monitor Pivots

Vertical Surface, Direct Mount

User's Guide

#8-32 x 5/16"

#8-32 x 3/8"

a b

1/2"

#8-32

M4 x 10mm

75-100mm

3/32"

a b

888-47-019-02 rev. N • 03/09

2 of 8

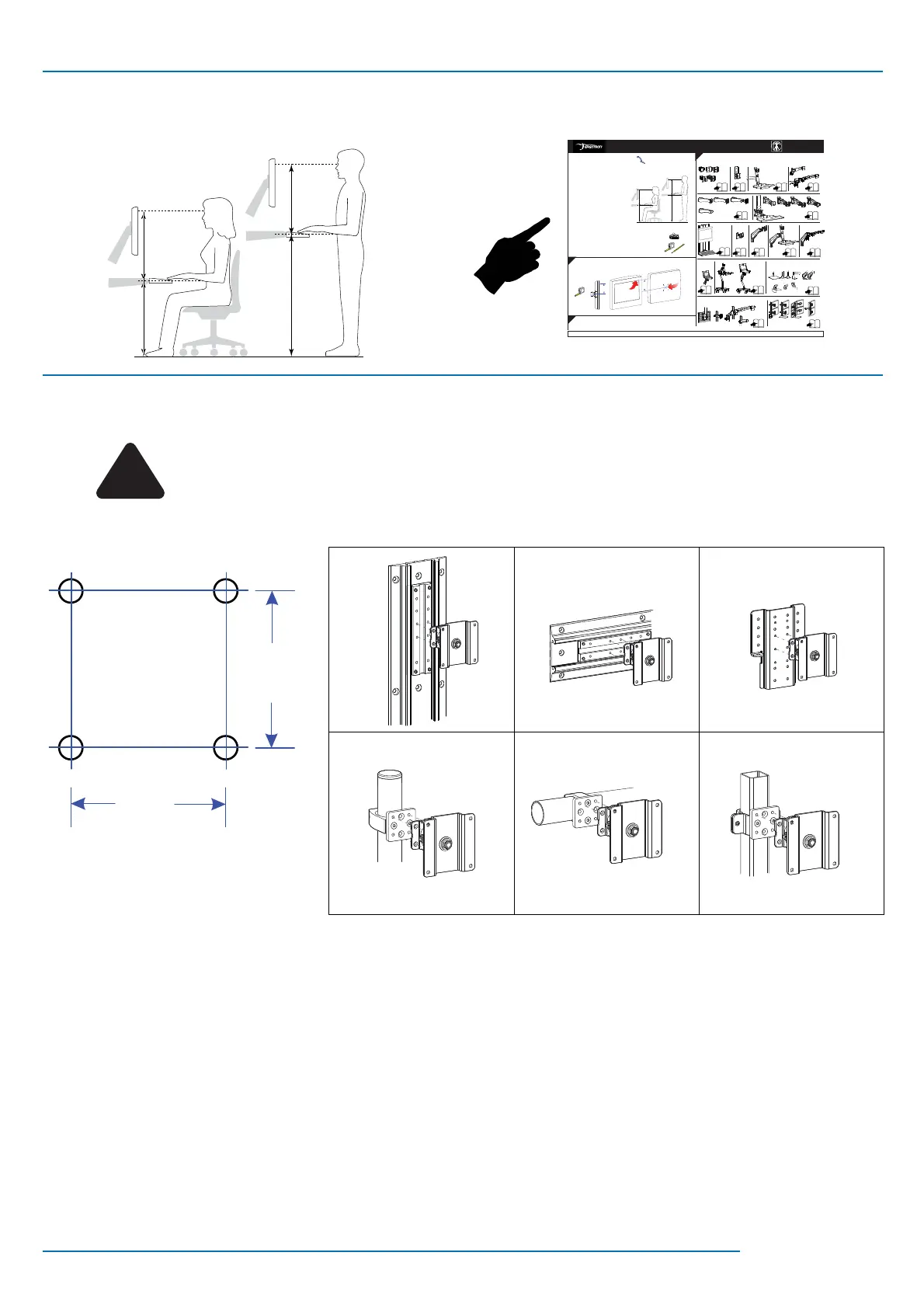

Determine Ergonomic Mounting Height

1.062"

(26.97mm)

1.062"

(26.97mm)

Determine Mounting Conﬁ guration

WARNING

Because surfaces vary widely and the ultimate mounting method is out of Ergotron’s control, it is

imperative that you consult with appropriate engineering, architectural or construction professional

to ensure that your Ergotron mounting solution is mounted properly to handle applied loads.

888-99-014

Rev E. 12/02 1 of 10 888-99-014-02

Ergonomic Mounting Heights

(for Flat Panel Monitors and Keyboards)

ERGONOMICS

Ergotron USA 1-800-383-1916

Ergotron Europe +31 20 312.29.39

Overview

When mounted properly, Ergotron

ARMS™ will provide ergonomic monitor

viewing and keyboard operation for a

wide range of users - whether sitting,

standing or in sit/stand situations.

The dimensioned drawings and formulas

contained in this guide can be used to

determine the ergonomically correct

mounting height of any of Ergotron's

Flat Panel Monitor/Keyboard solutions

mounted to either a vertical or a

horizontal surface. If mounting above

a worksurface, mounting heights may

change due to various worksurface

heights.

The Anthropometric Table on page

10 shows how mounting heights are

calculated based on the eye and elbow

heights of male and female operators.

To Mount your Flat Panel Monitor or Keyboard at an ergonomically

correct height, start at step 1 and continue as directed.

Center

Line of

mounting

holes

Top

Screen

Front View

Back View

Side View

FIND "x"

= Distance between Center line of Mounting Holes and Top of Monitor Screen.

Applications mounted to a

horizontal surface

Applications mounted to a 1.5" pole

FIND YOUR MOUNTING APPLICATION

USE "x"

to calculate mounting height for your application.

HD Laptop

Tray

2 33

4 5
