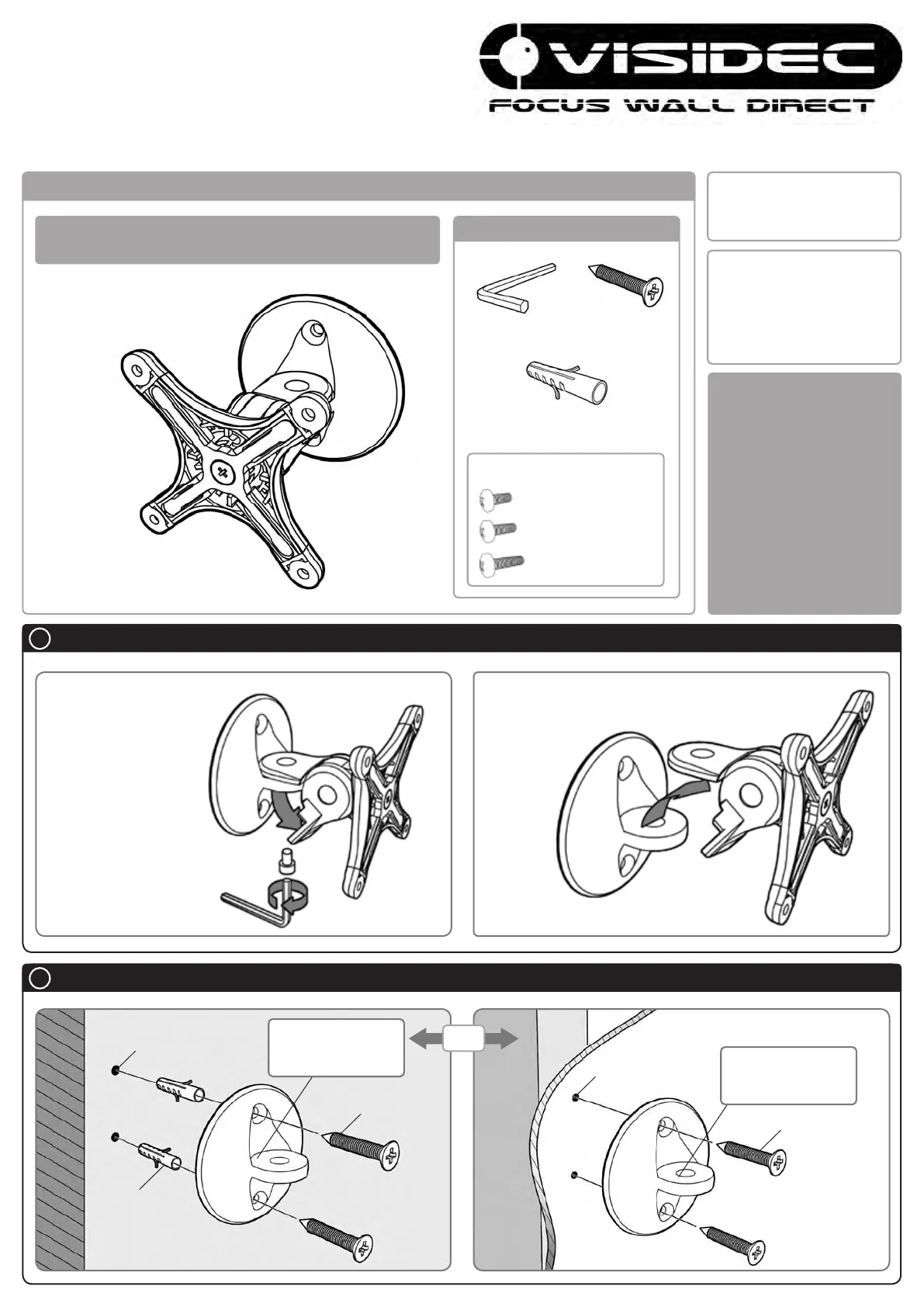

ComponentChecklist
ComponentChecklist
Component Checklist
ComponentChecklist
Disassemble
Step 1
Using the supplied
Allen Key, remove
the bottom screw.
Installation Instructions
IMPORTANT: Ensure you have received all parts
against the component checklist prior to installing.
Bits Bag
5mm Allen Key
Wall Plug (x2)
50mm Screw (x2)
Mounting Fasteners
M4x10mm Screw (x4)
M4x12mm Screw (x4)
M4x16mm Screw (x4)
Visidec Focus Wall Direct
supports a maximum
weight of 8kgs (17.5lbs)
TOOLS REQUIRED:
lPower Drill
l5.5mm (1/4”) Drill Bit
l8mm (5/16”) Drill Bit
lPhillips Head Screwdriver
NOTE: This product is
designed to support
a flat panel monitor
in a noninteractive
environment.
i.e. It should not be
used in a situation
where the display’s
position will be
frequently changed.
A
Step 2
Separate the two
components.
Wall Direct Assembly
Attach Base to Wall
Masonry Wall
B
Timber Stud Wall
OR
Wall Plug
8mm (5/16”) hole
50mm Screw
Tip: Use a Spirit Level
to ensure this surface
is horizontal.
5.5mm (1/4”) hole
Timber
Stud
50mm Screw
Tip: Use a Spirit Level
to ensure this surface
is horizontal.
Produktspecifikationer
| Varumärke: | Atdec |
| Kategori: | Platt panelstöd |
| Modell: | VF-WD |
| Hållare: | 95 ° |
| Lutningsvinkel: | -35 - 35 ° |
| Produktens färg: | Svart |
| VESA-montering: | VESA 75mm x 75mm / 100mm x 100mm |
| Monteringssätt: | Vägg |
| Vikt (imperial): | 17.5 lbs |
| Kompatibla skärmstorlekar: | 12 - 24 " |
| Vikt (max): | 8 kg |
