Sida 1/7

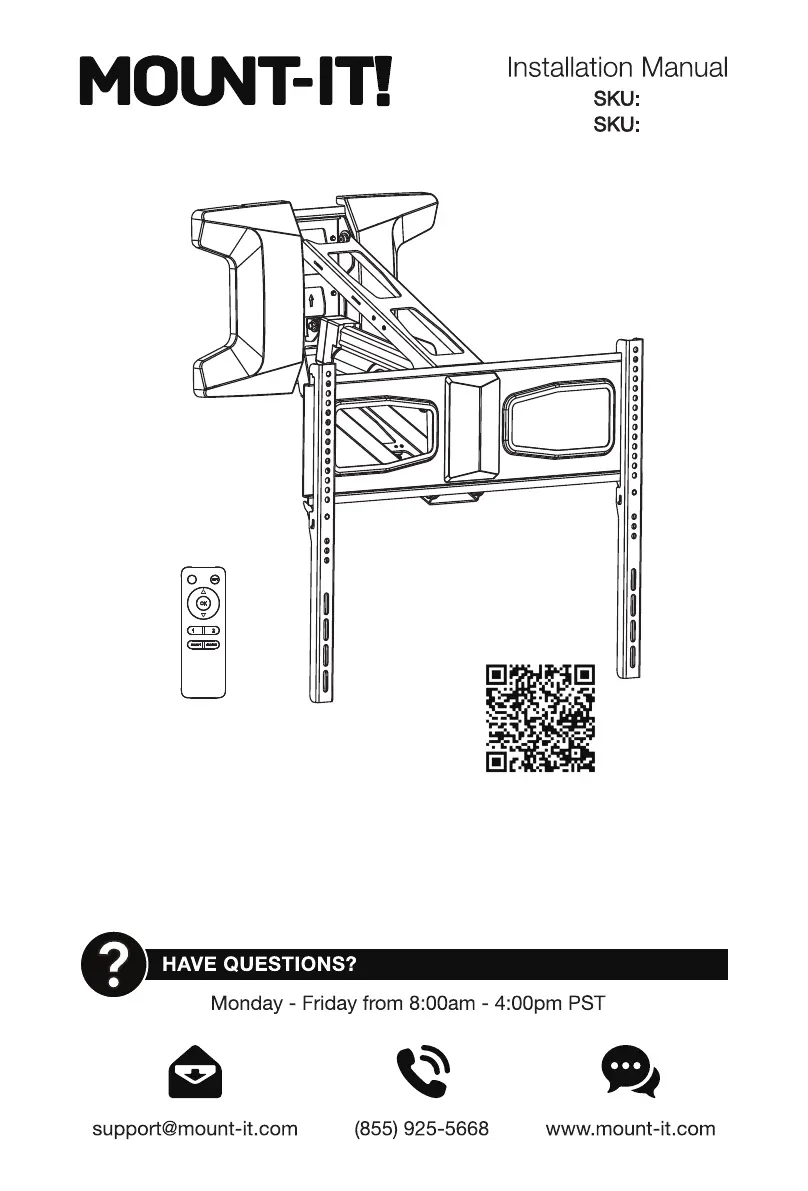

Motorized Fireplace TV Wall Mount
MI-386
MI-386W
Please Scan this QR code
to visit the product page.
Thank you for choosing Mount-It
2
3
Mount-It!
Mount-It!
will automatically move to the position saved in the
1. The mount beeps constantly or is making an abnormal noise.
a). Reset the system: Press and hold the " " button for 5 seconds. The mount will retract to the highest position, and
the reset is complete.
c). If the beeps or noise continueplease contact Mount-It! for more assistance.
2. The TV mount stops moving during operation and emits a long beep.
a). Check to see if a foreign object is impeding the mount from moving. If so, remove the obstruction.
b). The weight of TV may exceed the maximum weight limitation of the mounting system.
c). Reset the system: Press and hold the " " button for 5 seconds. The mount will retract to the highest position, and
the reset is complete.If the problem persists please contact Mount-It! for more assistance.
3. The mount emits 2 short beeps, then stops.
Weight Capacity/Over-current protection: Ensure the mount is not over the weight capacity, then raise and lower the
mountcontinuously for 2 minutes until the mount stops moving. Unplug the power cable and wait approximately 20
minutes for the motor to cool, then plug it back in. The mount should resume normal operation.
4. The mount emits 2 sets of 2 short beeps.
The Mount is Overextended and needs to be reset: Disconnect the power adaptor then plug it in again, next press and hold
the " " button on the remote for 5 seconds. The mount will retract to the highest position, and the reset is complete.
5. The mount emits 3 sets of 2 short beeps.
Operating Fault or Signal Error: Please contact Mount-It! for further assistance.
6. The mount emits 4 sets of 2 short beeps.
Mount strap is misaligned or stuck: Press the " " button to raise the mount to the highest position, if it will not move or
will not fully raise it will need to be reset, press and hold the " " button for 5 seconds. The mount will retract to the
highest position, and the reset is complete. If the mount still will not move, or is stuck in the highest position the belt may
be stuck. Please contact Mount-It! for assistance to manually reset the belt.
5
4
Motorized Arm
A (x1)
Decorative Cover
B (x2)
Wall Template
C (x1)
TV Plate
D (x1)
VESA Arms
E (x2)
W-A (x6)
ST6.3x55
Lag Screw
W-B (x6)
Ø10x45
Concrete Anchor
W-C (x6)
D6
TV Plate Cover
F (x1)
Remote Control
G (x1)
Power Cord
H (x1)
Wrench
I (x1)
PACKAGE CONTENTS
COMPATIBLE VESA SIZES
200x100 200x200 300x200
300x300 400x200 400x300
400x400 600x400
COMPATIBLE WITH
Screens UP TO
35kg
(77lbs)
RATED
Missing Parts? Call us at (855) 925-5668 and we will ship replacement parts free of charge.
CHOKING HAZARD. Package includes small parts.
Not for children under 3 years. Adult supervision is required.
Check carefully to make sure there are no missing or defective parts. Some hardware provided
may not be used. Use the correct wall mounting and monitor mounting hardware suitable for your
installation.
VESA HARDWARE
WALL MOUNTING HARDWARE
70
• The height of the mount is dependent on the depth of the mantel to ensure the motorized arm clears the
mantel when fully lowered.
• Determine the proper wall placement using the chart. Measure the depth of your mantel and locate the
closest measurement in column a that your mantel depth is Greater Than Or Equal To. The
corresponding measurement in column b will show the minimum required mounting height from the
mantel to the bottom of the wall plate.
Note: Installing below the required mounting height for your mantel depth will prevent the mount
from fully clearing the mantel.
Tools Needed
Take Wall Placement Measurement
≤3.94"
≤7.87"
≤11.81"
≤13.78" ≥11.81"
≥7.87"
≥9.84"
≥3.15"
a. If Mantel Extends:
b. Mounting Height
Required:
a. Mantel Extends
b. Mounting Height
Mounting Height Chart
