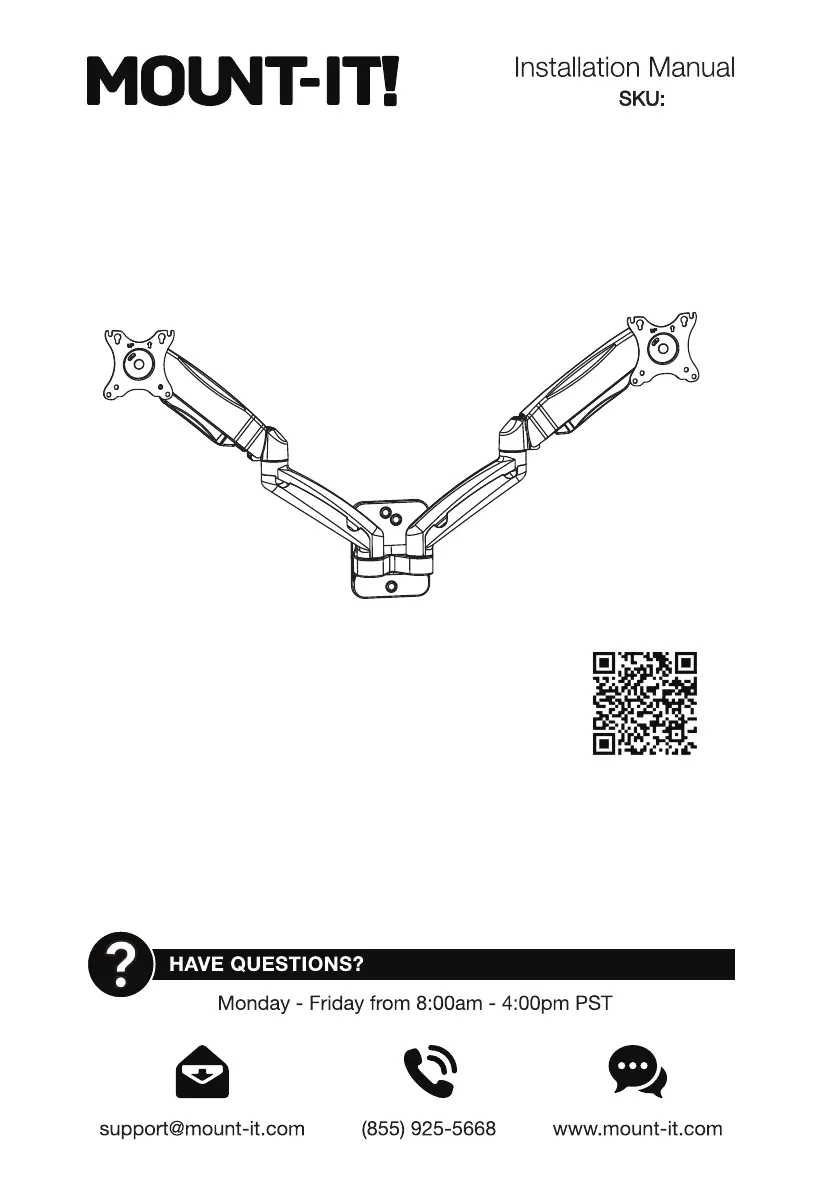

COUNTERBALANCE MONITOR
WALL MOUNT
MI-766
Please scan this QR code
to visit the product page.
Thank you for choosing Mount-It
2
3
Mount-It!
Mount-It!
COMPATIBLE VESA SIZES
COMPATIBLE WITH
TVs UP TO
Minimum weight: (2kg)x2
Maximum weight: (9kg)x2

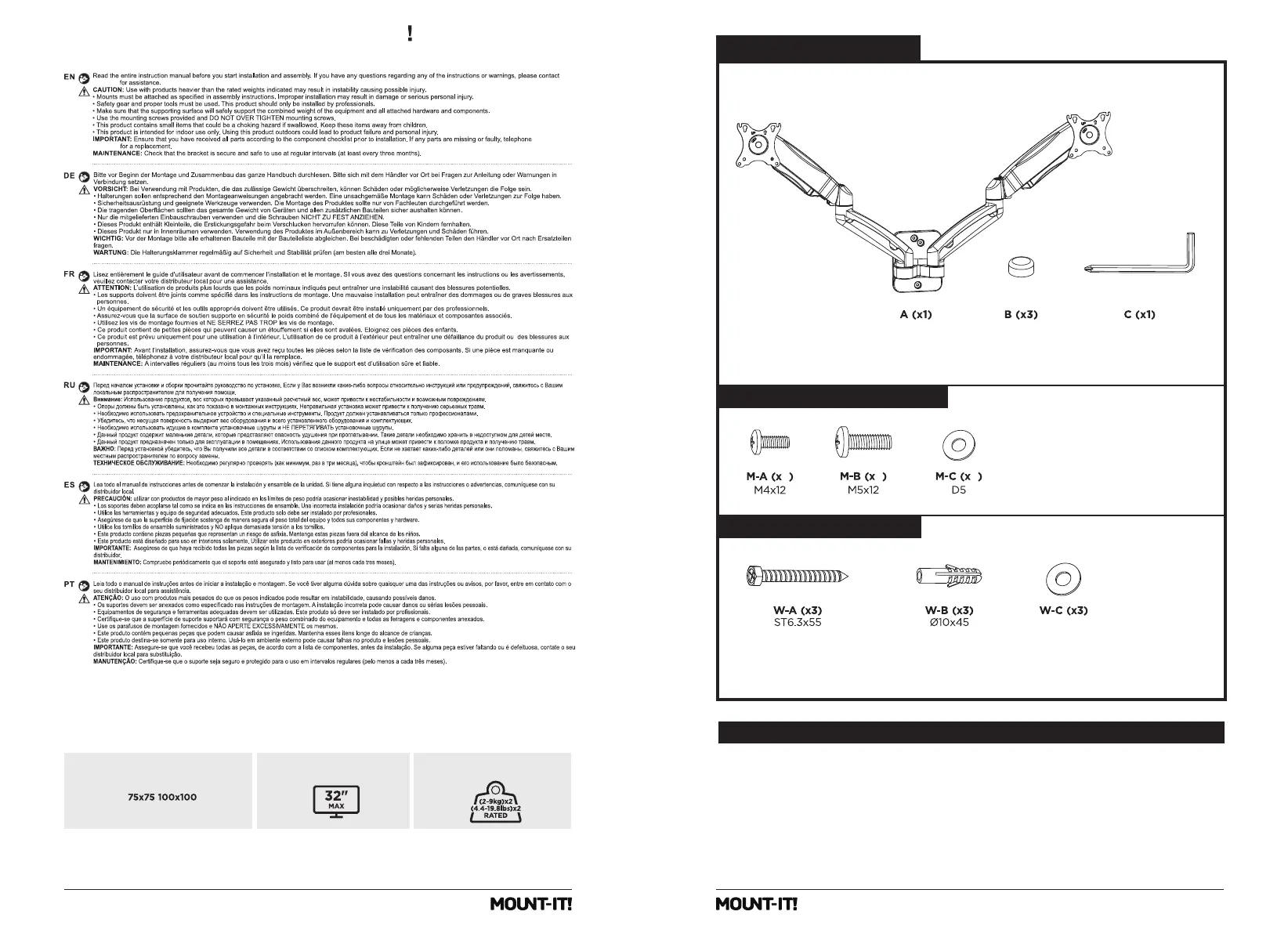

PACKAGE CONTENTS
MONITOR MOUNTING HARDWARE
WALL MOUNTING HARDWARE
Spring Arms
Lag Screw Concrete Anchor
Washer
Decorative Covers Hex Wrench
Missing Parts? Call us at (855) 925-5668 and we will ship replacement parts free of charge.
8 8 8
5
4

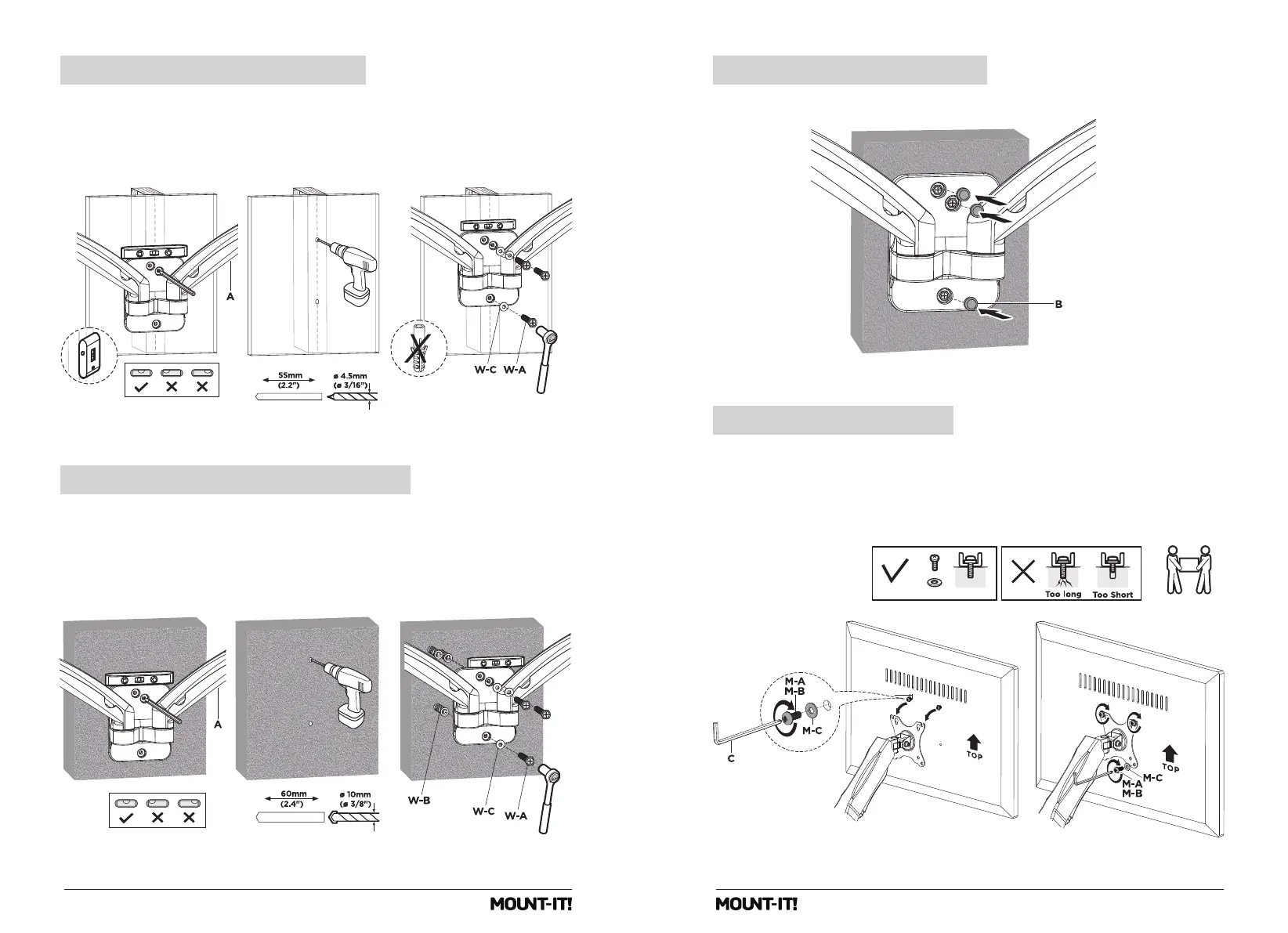

• Insert the Decorative Covers (#B) into each of the bolt holes.
Insert Decorative Covers
• With a stud finder locate the stud and center the mount on the stud at the desired height. Using a
bubble level to ensure straightness mark the center of the mounting holes with a pencil.
• Use a 3/16” drill bit and drill on the marked locations to a depth of 2.2”. Secure the Spring Arm (#A) to
the wall using Lag Screw (#W-A) and Washer (#W-C). Tighten the screws until secure.
Wood Stud Mounting Option
Step 1a
• Using a bubble level to ensure straightness hold the Spring Arm (#A) to the desired location on the wall
and mark the center of the mounting holes with a pencil.
• Use a 3/8” drill bit and drill on the marked locations to a depth of 2.4”. Clear any dust and debris from
the holes and insert the Concrete Anchors (#W-B). Secure the Spring Arm (#A) to the wall using Lag
Screw (#W-A) and Washer (#W-C). Tighten the screws until secure.
Concrete/Brick Mounting Option
Step 1b
Step 2
• Select the appropriate size mounting bolt (#M-A, M-B) for your display’s mounting holes and verify the
length of the VESA bolt is not too long. If you are unsure of the correct bolt size for your display refer to
your TV user manual or contact the TV manufacturer for sizing information.
• After selecting the appropriate bolt install the top two bolts and washers (#M-C) to the monitor leaving a
gap of approximately 0.11” (3mm). Hang the monitor onto the top of the VESA plate as shown.
• Install the lower two bolts and washers (#M-C) through the lower holes. Tighten all 4 bolts until secure,
do not overtighten. Repeat these steps for the second monitor.
Attaching the Monitor
Step 3
0.11" (3mm)
