UL CERTIFIED HEAVY DUTY FULL
MOTION TV WALL MOUNT
MI-14003
Scan this QR code for
product information, videos,
and assembly assistance.
Thank you for choosing Mount-It
2
3

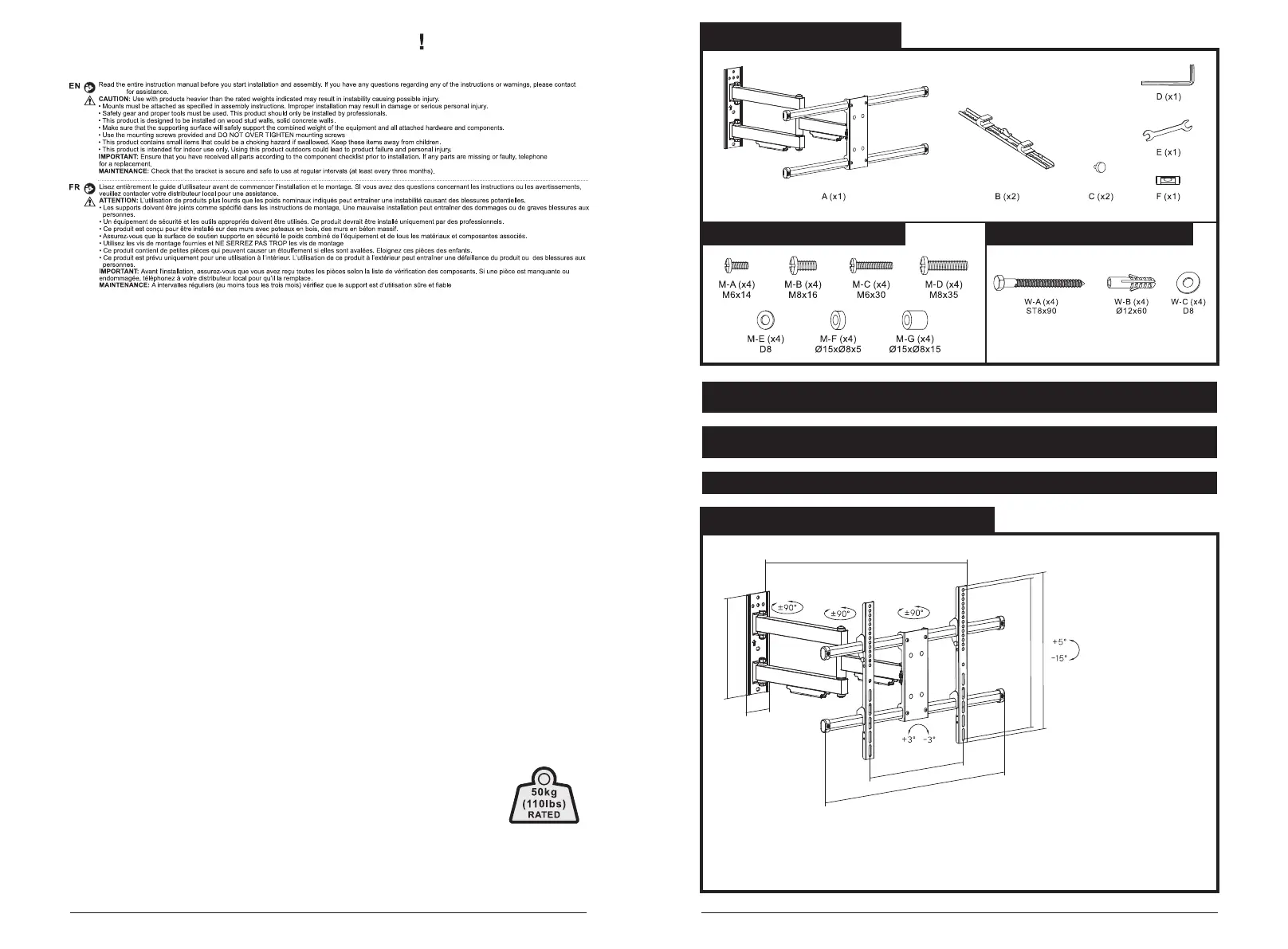

PACKAGE CONTENTS
Missing Parts? Call us at (855) 925-5668 and we will ship replacement parts free of charge.
CHOKING HAZARD. Package includes small parts.
Not for children under 3 years. Adult supervision is required.
Check carefully to make sure there are no missing or defective parts. Some hardware provided may not
be used. Use the correct mounting hardware suitable for your installation.
DIMENSIONS & WEIGHT CAPACITY
Rated weight capacity is 110lbs
for the mount.
Caution:
Ensure all mounting surfaces are
capable of holding the weight of
your mount.
DO NOT EXCEED MAXIMUM
LISTED WEIGHT CAPACITY.
SERIOUS INJURY OR PROPERTY
DAMAGE MAY OCCUR!
Mount Arm VESA Brackets Security Bolt Bubble Level
Wrench
Hex Wrench
Lag Screw Concrete Anchor
VESA MOUNTING HARDWARE WALL MOUNTING HARDWARE
10.8"
16.1"
16.9"
2.4"~24.2"
27"
3.5"
5.3"~24.3"
Mount-It!
Mount-It!
5
4

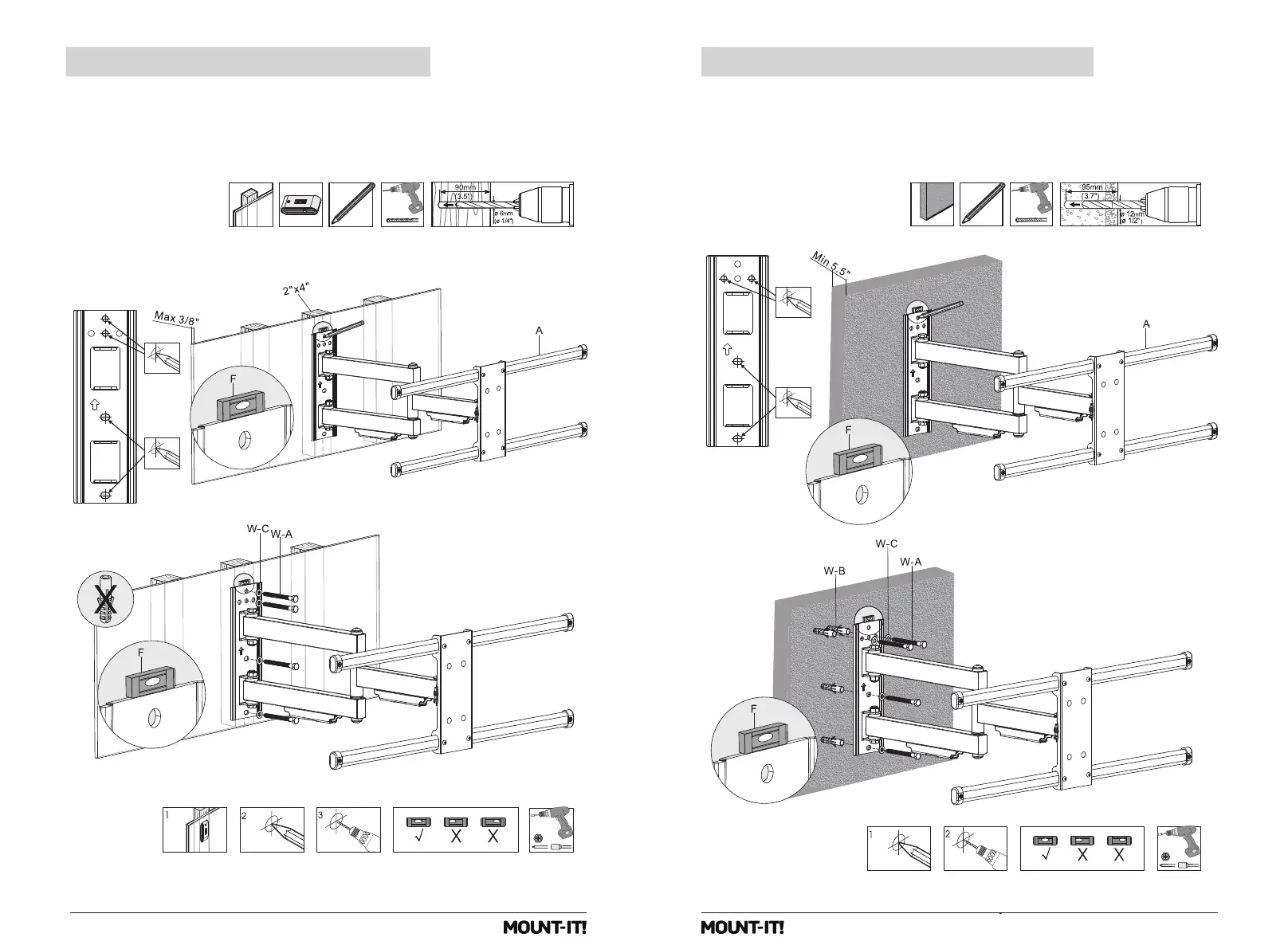

• Use the Bubble Level (#F) to ensure straightness and hold the Mount Arm (#A) to the desired location
on the wall. Mark the center of the 4 mounting holes indicated here with a pencil.
• Use a 1/2” drill bit and drill on the marked locations to a depth of 3.7”. Clear any dust and debris from
the holes and insert the Concrete Anchors (#W-B). Secure the Mount Arm (#A) to the wall using Lag
Screws (#W-A) and Washers (#W-C). Tighten the screws until secure.
B. Concrete/Brick Mounting Option
• Using a stud finder locate the stud and center the Mount Arm (#A) on the stud at the desired height.
Use the Bubble Level (#F) to ensure straightness and mark the center of the 4 mounting holes indicated
here with a pencil.
• Use a 1/4” drill bit and drill on the marked locations to a depth of 3.5”. Secure the Mount Arm (#A) to the
wall using 4 Lag Screws (#W-A) and Washers (#W-C). Tighten the screws until secure.
A. Wood Stud Installation Option
Step 1
