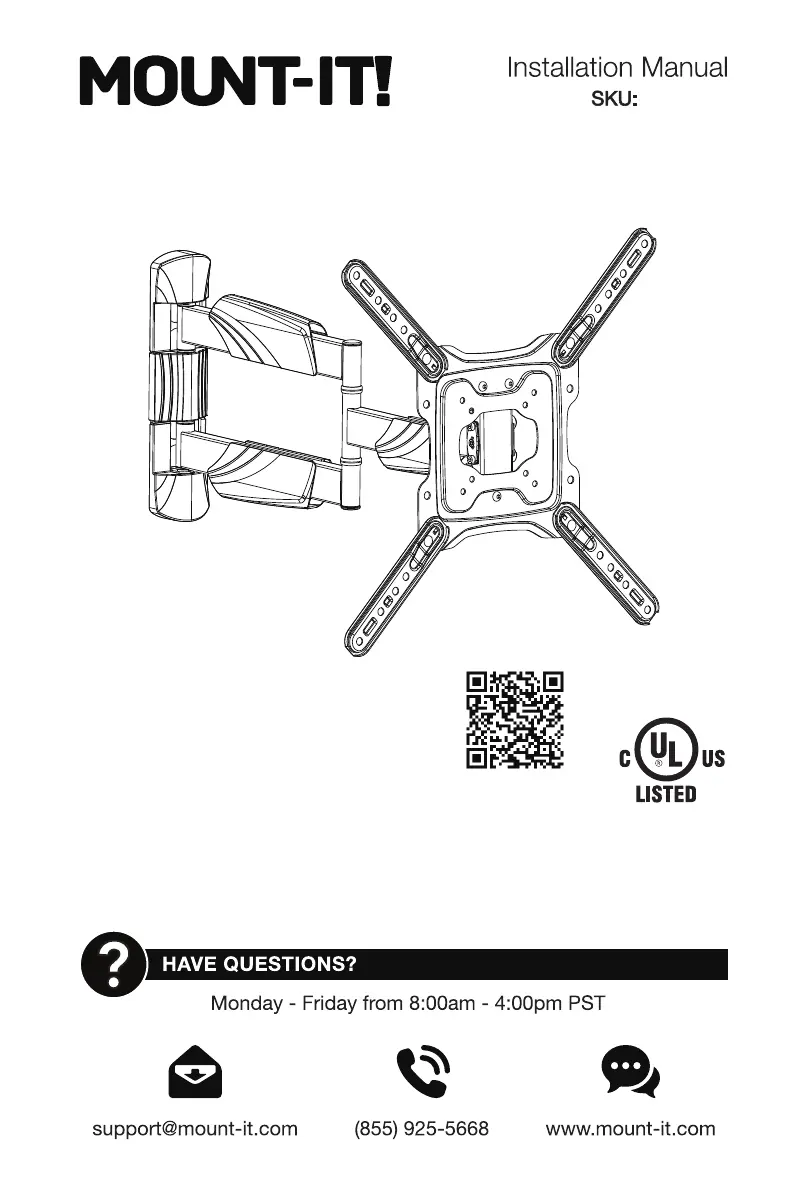

UL CERTIFIED FULL MOTION
TV WALL MOUNT
MI-14002
Scan this QR code for
product information, videos,
and assembly assistance.
Thank you for choosing Mount-It
2
3
PACKAGE CONTENTS
Missing Parts? Call us at (855) 925-5668 and we will ship replacement parts free of charge.
CHOKING HAZARD. Package includes small parts.
Not for children under 3 years. Adult supervision is required.
Check carefully to make sure there are no missing or defective parts. Some hardware provided may not
be used. Use the correct mounting hardware suitable for your installation.

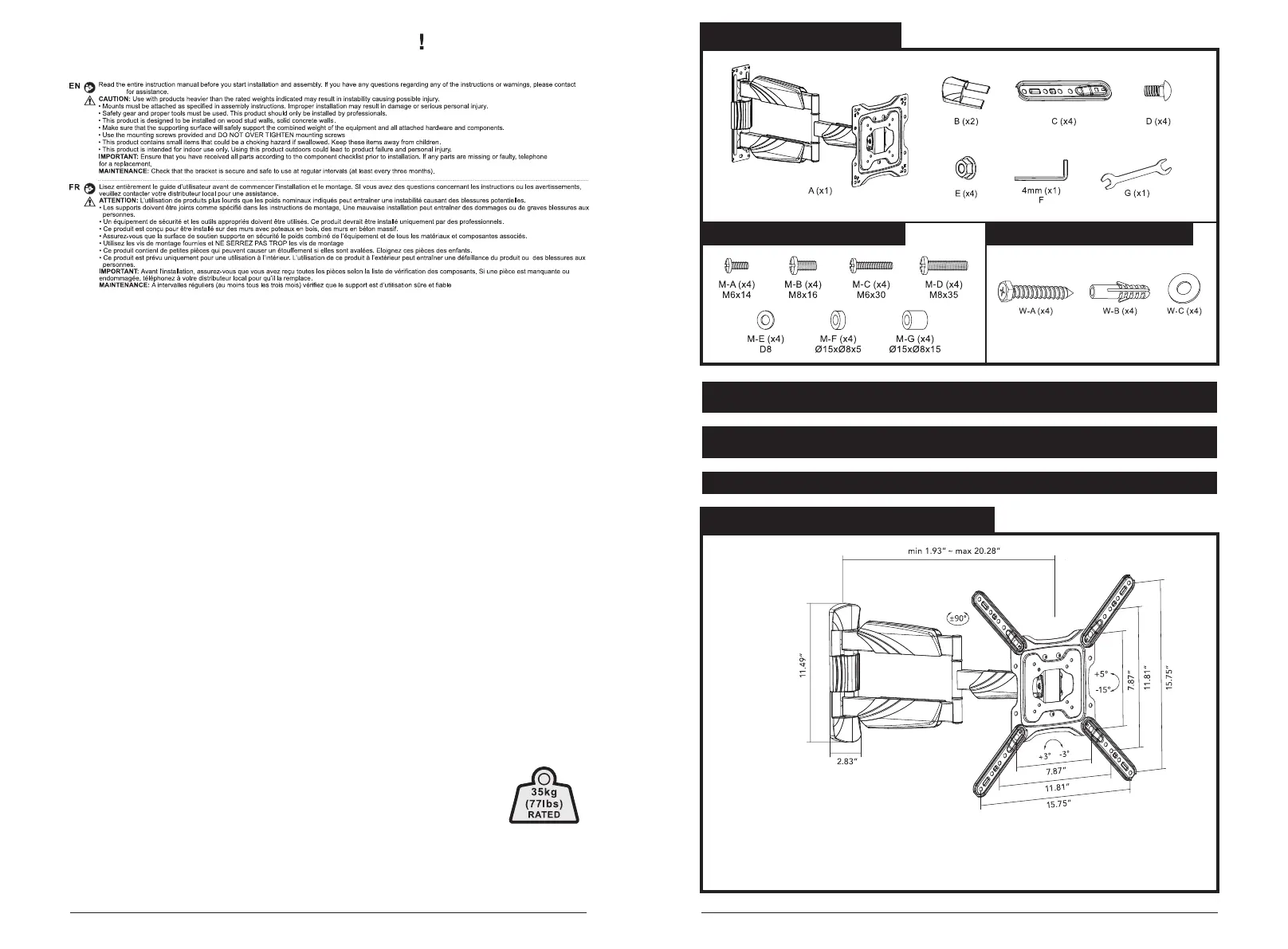

DIMENSIONS & WEIGHT CAPACITY
Rated weight capacity is 77lbs for the mount.
Caution:
Ensure all mounting surfaces are capable of
holding the weight of your mount.
DO NOT EXCEED MAXIMUM
LISTED WEIGHT CAPACITY.
SERIOUS INJURY OR PROPERTY
DAMAGE MAY OCCUR!
Mount Arm
VESA Arm Nuts Wrench
Hex Wrench
Lag Screw Concrete Anchor
Decorative Cover VESA Extension Arms VESA Arm Bolts
VESA MOUNTING HARDWARE WALL MOUNTING HARDWARE
Mount-It!
Mount-It!
5
4

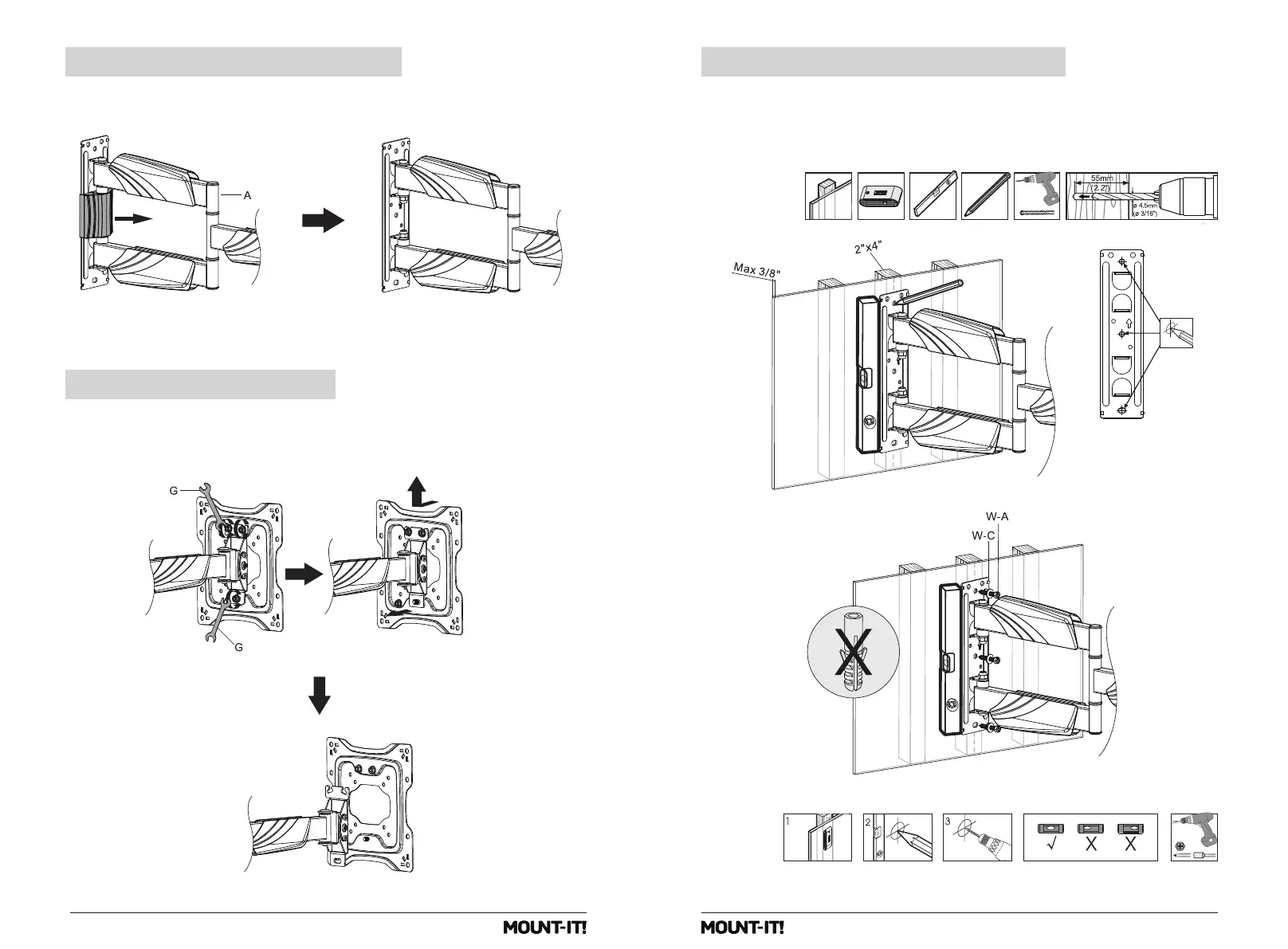

• Remove the preinstalled decorative cover from the middle of the wall bracket on Mount Arm (#A) to
allow access to the bolt hole beneath.
Remove the Decorative Cover
Step 1
• As shown in the diagram, loosen the top two nuts on the rear of the VESA plate, and remove the single
nut on the lower half (save this nut for the reinstallation of the plate later.) Lift the VESA plate up and off
of the Mount Arm (#A).
Remove the VESA Plate
Step 2
• Using a stud finder locate the stud and center the Mount Arm (#A) on the stud at the desired height.
Use the Bubble Level (#F) to ensure straightness and mark the center of the 3 mounting holes indicated
here with a pencil.
• Use a 3/16” drill bit and drill on the marked locations to a depth of 2.2”. Secure the Mount Arm (#A) to
the wall using 3 Lag Screws (#W-A) and Washers (#W-C). Tighten the screws until secure.
A. Wood Stud Installation Option
Step 3
