HEAVY-DUTY TILT
TV WALL MOUNT
MI-14009
Scan this QR code for
product information, videos,
and assembly assistance.
Thank you for choosing Mount-It
2
3
Mount-It!
Mount-It!
Mount and Accessories
Mounting Hardware Wall Mounting Hardware
TemplateWall Mount Bubble Level
Hex Wrench
VESA Brackets
Missing Parts? Call us at (855) 925-5668 and we will ship replacement parts free of charge.
CHOKING HAZARD. Package includes small parts.
Not for children under 3 years. Adult supervision is required.
Check carefully to make sure there are no missing or defective parts. Some hardware provided may not
be used. Use the correct mounting hardware suitable for your installation.
DIMENSIONS & WEIGHT CAPACITY
Rated weight capacity is 264lbs.
Caution:
Ensure all mounting surfaces are capable of holding the weight of your mount.
DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY.
SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!
5
4

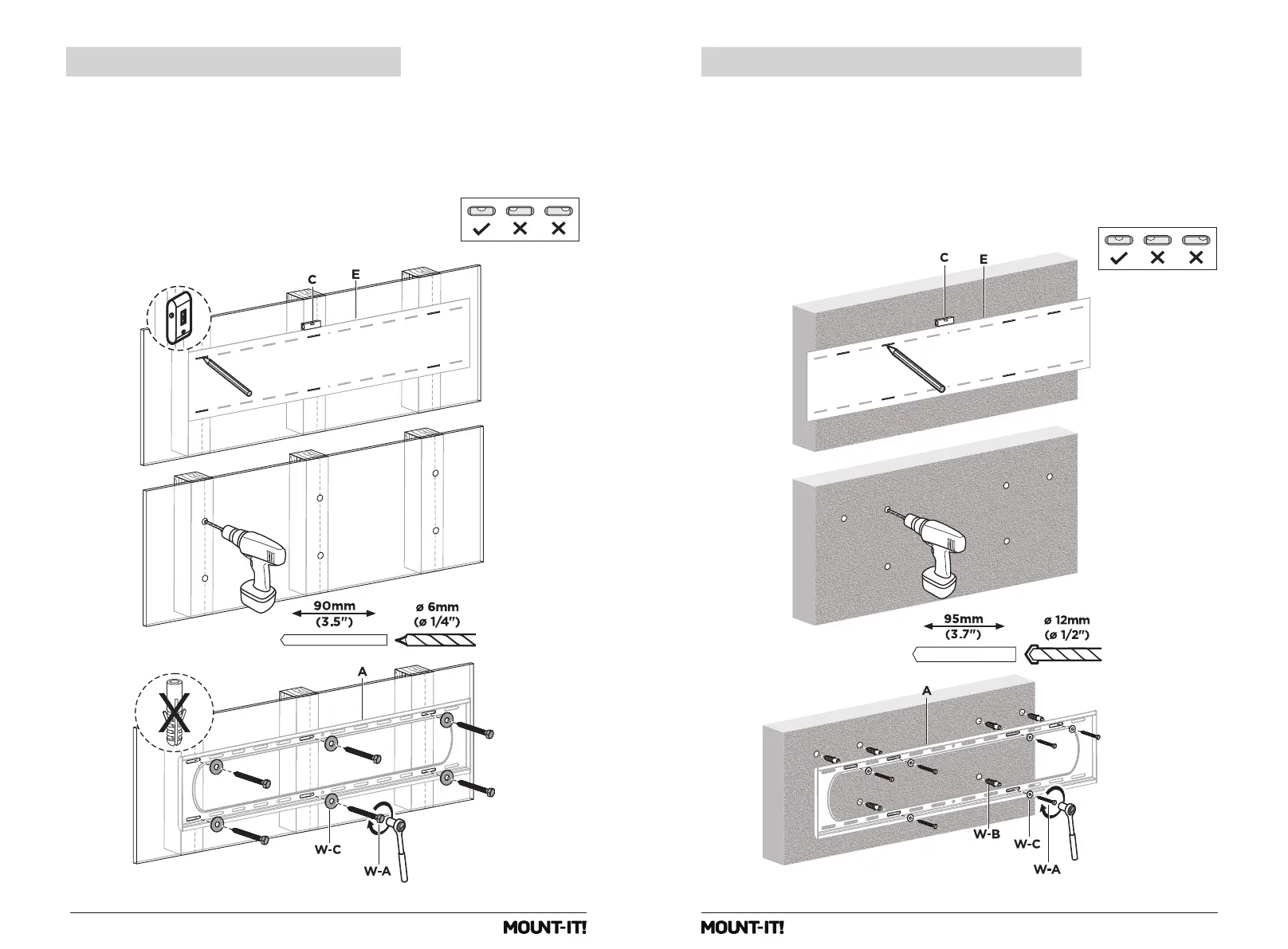

• Use a stud finder to locate the center of the studs and hold Template (#E) to the wall in the desired
mounting location.
• Use a Bubble Level (#C) to ensure that the template is level.
• Mark the center of the studs through the template as shown.
• Remove the template from the wall and drill holes in the marked locations using a 1/4” drill bit (6mm) to
a depth of 3.5” (90mm)
• Hold the Wall Mount (#A) to the wall over the holes, check the level once again, and install the 6 Lag
Screws (#W-A) and Washers (#W-C) then tighten until secure.
Wood Stud Installation Option
Step 1a
• Hold the Template (#E) to the wall in the desired mounting location.
• Use a Bubble Level (#D) to ensure that the template is level.
• Mark the center of the holes through the template in the locations shown.
• Remove the template from the wall and drill holes in the 6 marked locations using a 1/2” drill bit (12mm)
to a depth of 3.7” (95mm).
Note: Do not drill mounting holes into mortar (such as between bricks or stones) only drill and
install into solid stone or concrete surfaces.
• Clear dust or debris from the holes and insert the Concrete Anchors (#W-B) fully until flush with the
wall. Hold the Wall Mount (#A) to the wall over the holes, check the level once again, and install the 6
Lag Screws (#W-A) and Washers (#W-C) then tighten until secure.
Concrete/Brick Installation Option
Step 1b
