Indoor 2' x 2' Suspended Ceiling Mount Passive Speaker Install Sheet
IP-22SYSP

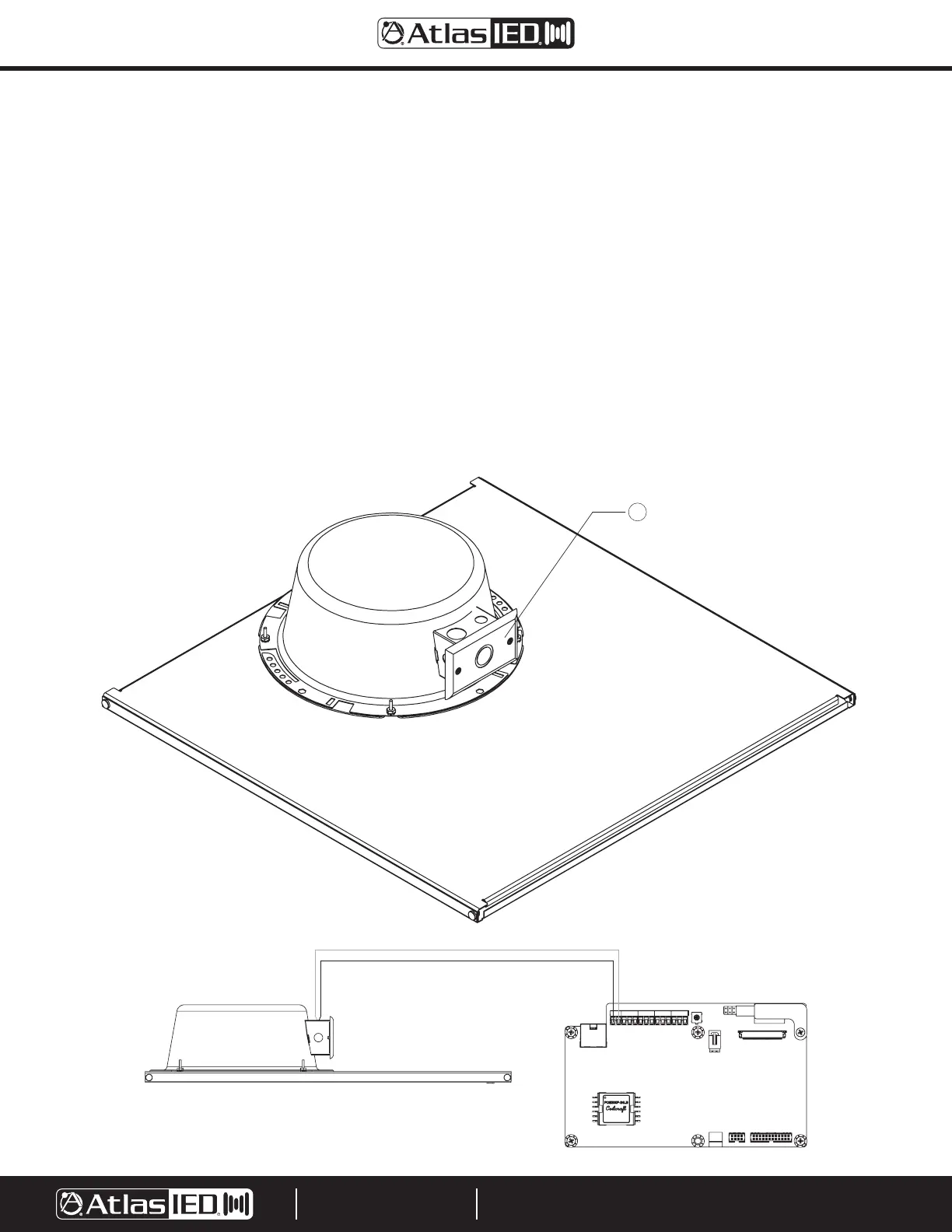

1. Remove power from the IPX that will be used to power the IP-22SYSP.
2. Connect the field wiring leads to pins 13 and 14 of the IPX endpoint speaker.
3. Remove E.O. box cover (A) on enclosure.
4. Use two wire nuts to attach the white (+) and black (-) leads to the field wiring.
5. Install the IP-22SYSP into the grid.
6. Apply power to the IPX and configure.
Note:Wiring cavity is not intended to be used as a junction box. A UL recognized conduit clamp must be used for conduit connections.
Installation must comply with all Building Codes and NFPA guidelines. Installation must adhere to N.E.C. and NFPA 70/72 wiring directives and comply
with all National and Local Building Codes.
–
+
1234567891011121314
A
