Sida 1/11

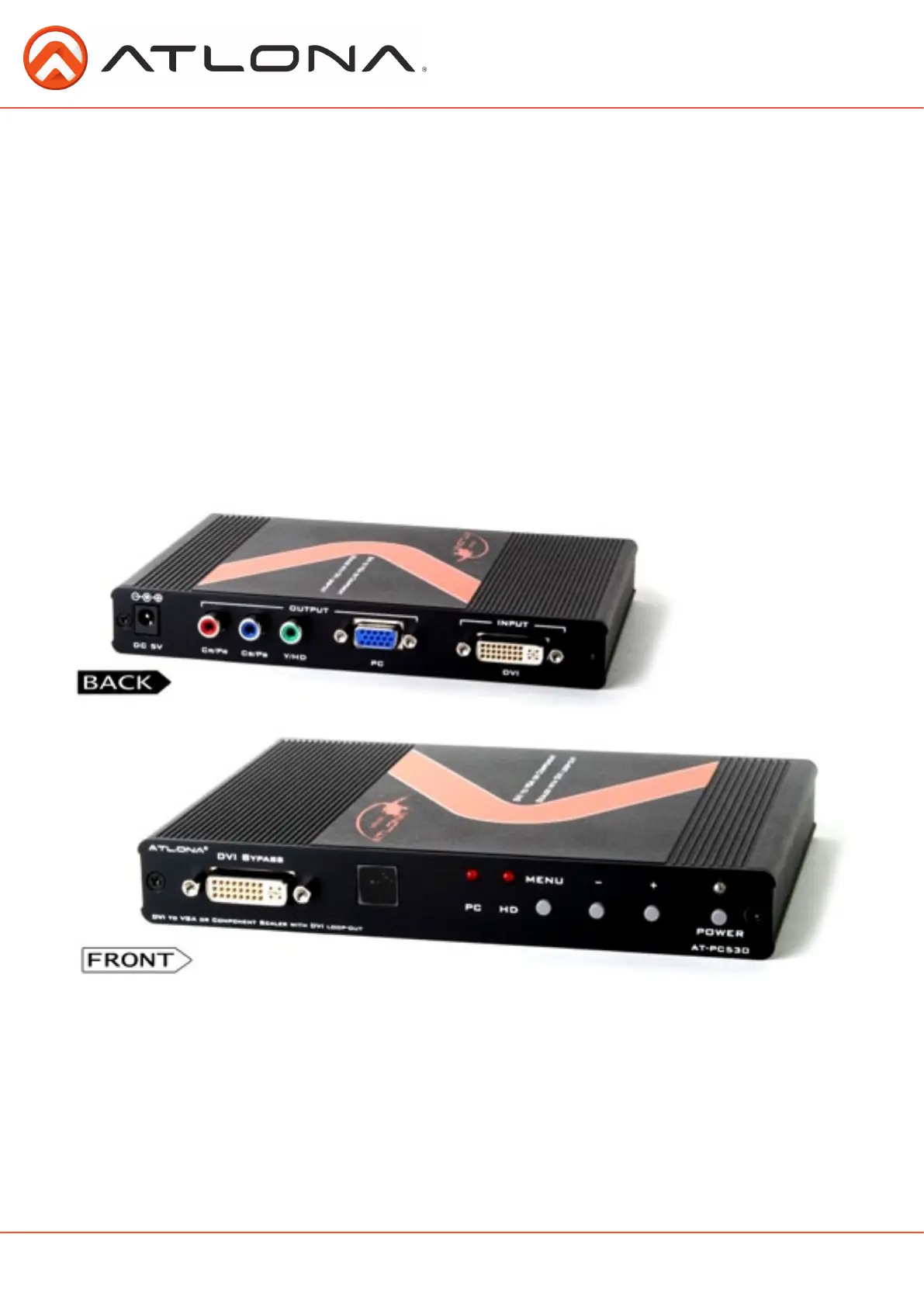

User Manual
DVI to VGA or Component Scaler with DVI loop-out
AT-PC530
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
1. Introduction .................................................. 2
2. Features .................................................. 2
3. Package Contents .................................................. 2
4. Applications .................................................. 2
5. Specification .................................................. 3
6. Panel Descriptions .................................................. 4
6.1 Front Panel .................................................. 4
6.2 Rear Panel .................................................. 4
7. DVI-D connector Pin Assignment .................................................. 5
8. OSD Operation .................................................. 5
9. Connection Diagram .................................................. 6
10. Support Resolution .................................................. 7
11. Safety Information .................................................. 8
12. Warranty .................................................. 9
13. Atlona Product Registration .................................................. 10
TABLE OF CONTENTS
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
1
Atlona Technologies new AT-PC530 is an innovative Scaler designed to convert DVI (digital) signal into variety
of HDTV or Computer resolutions through Component or VGA outputs. This unique scaler/converter handles
input and output signal at resolutions up to 1920x1200 or 1080p. The PC530 is featured with an On Screen
Display selection to enhance optimal video performances. Along with being HDCP compliant, the AT-PC530
support DVI resolution from VGA (640x480) up to WUXGA (1920x1200) and scale it to Component or VGA to
resolutions up to 1080p or 1920x1200.
• Atlona DVI (Digital) to VGA or Component Scaler
• IR Remote control
• 5V DC power adaptor (universal)
• Operation Manual
• DVI signal to be displayed on HDTV
• The AT-PC530 is able to accept DVI resolution from 640x480 to 1920x1200 and scaler them up or down
to either component video or vga at resolutions up to 1920x1200 or 1080p.
• The output resolution can be selected via IR Remote control or though On Screen Display
• The On Screen Display allows user to adjust brightness, contrast, color, RGB level and H-V position.
• PC530 features a Noise Reduction and Overscan/ Underscan adjustments.
Note: The DVI-D input is HDCP compliant which means if input is HDCP encrypted then DVI loop-out will
also be HDCP encrypted. In this case the PC/component output will be turned off.
INTRODUCTION
PACKAGE CONTENTS
APPLICATIONS
FEATURES
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
2
