Sida 1/9

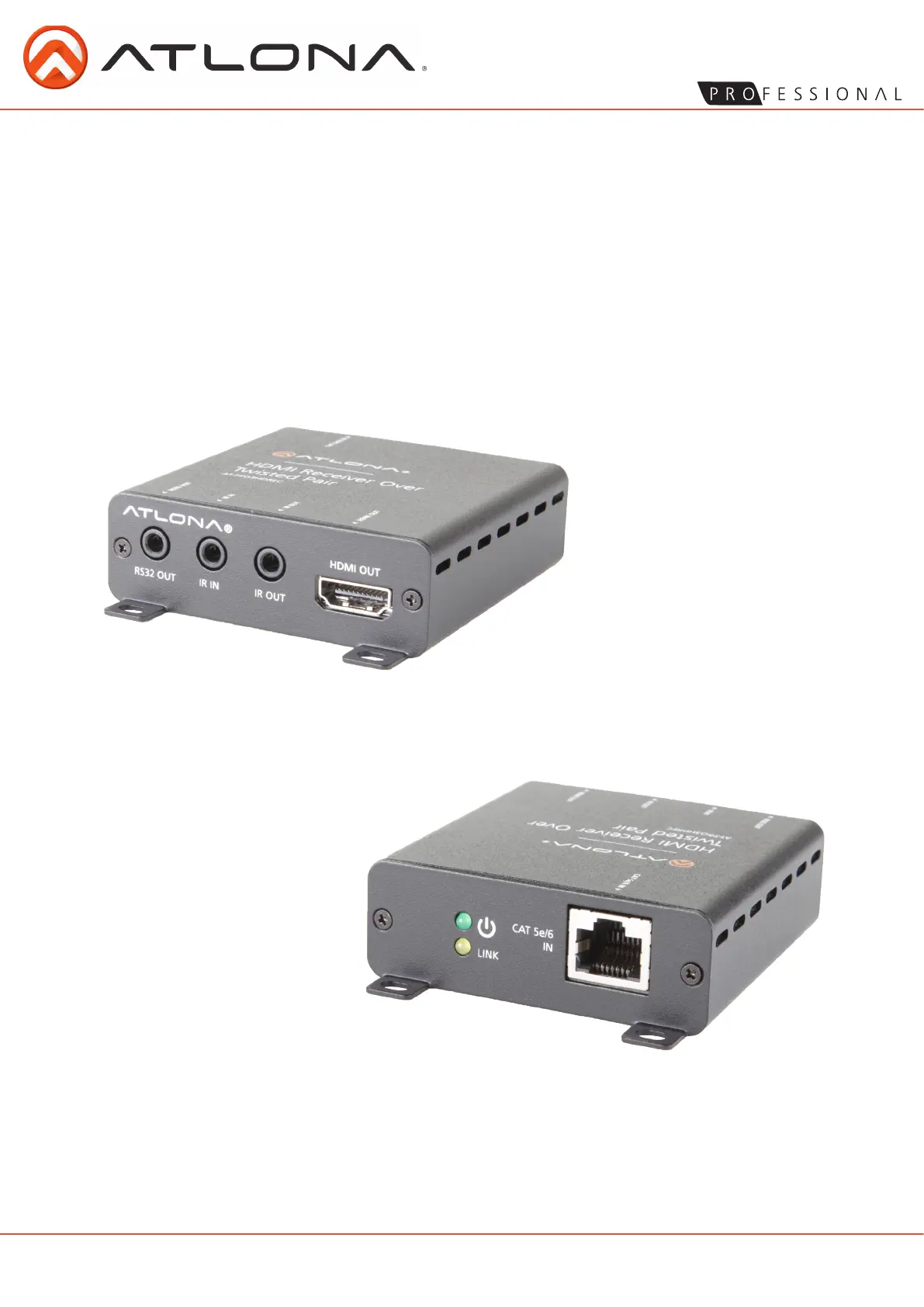

User Manual
Atlona HDMI Extender
over Single CAT5e/6/7
AT-PRO3HDREC
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
2
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
1. Introduction ........................................................................................ 3
2. Package Contents ........................................................................................ 3
3. Features ........................................................................................ 3
4. Specifications ........................................................................................ 3
5. Panel Descriptions
a. Front Panel ........................................................................................ 4
b. Rear Panel ........................................................................................ 4
6. Connection and Installation ........................................................................................ 5-6
7. Safety Information ........................................................................................ 7
8. Warranty ........................................................................................ 8
9. Atlona Product Registration ........................................................................................ 9
Table of Contents
3
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Introduction
With the latest, more affordable HDBaseT technology, extend IR, RS-232, audio and video content
between sources and displays up to 230ft (over CAT6a/7) with the PRO3HD44M matrix switcher.
With pass through support of up to 1080p or 1920x1200, 3D, 2Channel and
Multi-channel audio, bidirectional RS-232 and IR signals.
Package Contents
Features
• 1 x AT-PRO3HDREC
• 1 x IR 3.5mm Receiver
• 1 x IR 3.5mm Emitter
• 1 x 3.5mm RS-232 to 9pin RS-232 adaptor
• 1 x User Manual
• Extends IR, RS-232, audio and visual content up to 200ft over a single high quality CAT5e cable
• Extends IR, RS-232, audio and visual content up to 230ft over a single high quality CAT6/7 cable
• Supports resolutions up to 1080p or 1920x1200 on pass through
• IR ports for emitting and receiving IR control signals for use of IR remote controls and 3rd party
IR controllers
• PoE (Power over category cable)
• Lossy, and lossless multi-channel audio formats pass through (including Dolby TrueHD and
DTS-HD Master Audio)
• Full 3D pass through
• HDCP compliant
Specifications
Bandwidth frequency 6.75 Gbps
Input Ports 1 x CAT5e/6/7
1 x IR 3.5mm
Output Ports 1 x HDMI (Female type A)
1 x IR 3.5mm
1 x RS-232
Resolution outputs Video: up to 1080p@60Hz
Vesa: up to 1920x1200
Dimensions (HxWxD) .94x2.75x2.88 (inch) or 23.88x69.85x73.15 (mm)
Weight .3lbs or .14kg
Temperature -4°F to 158°F or -20°C to 70°C
Power consumption 6W
