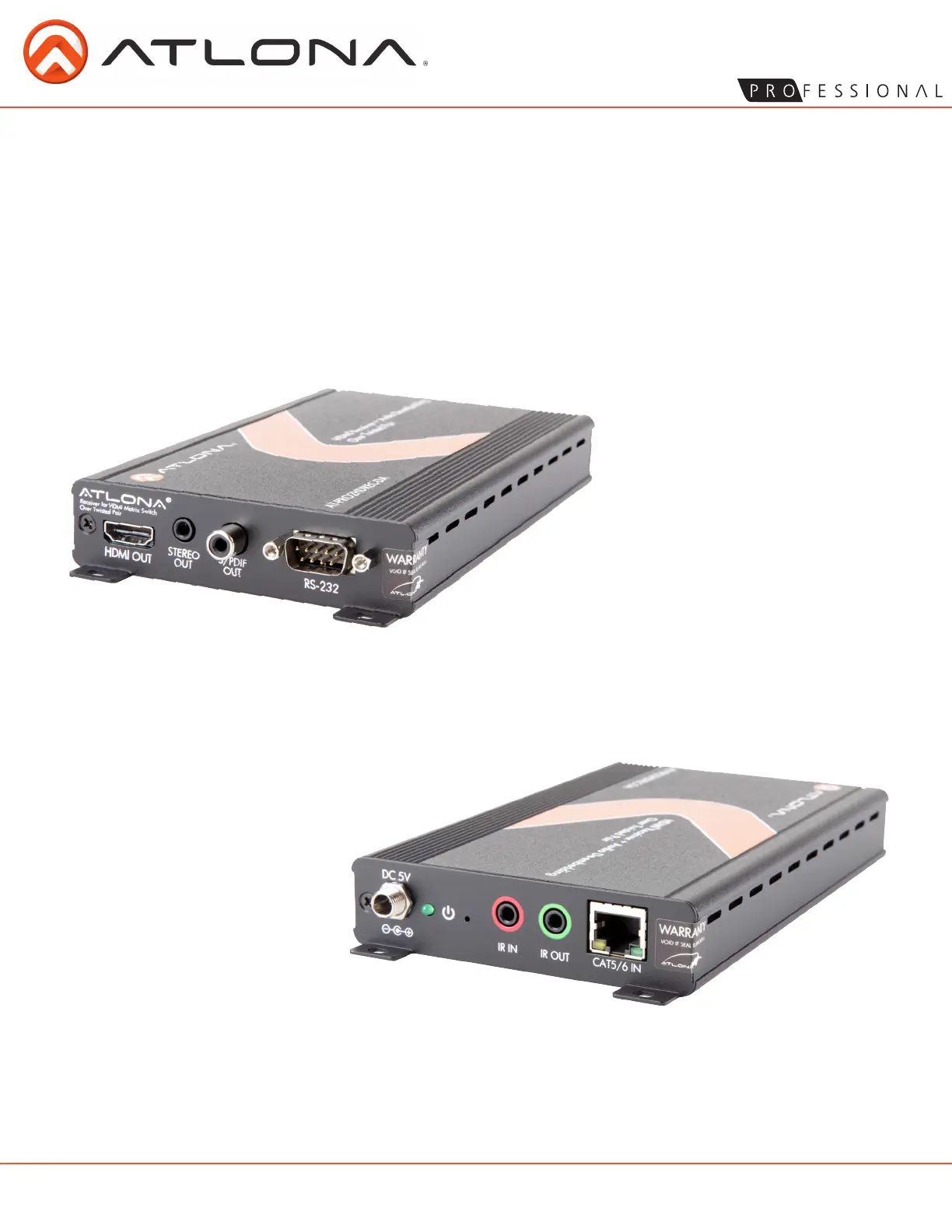

Sida 1/8
User Manual
HDMI Extender over Single CAT5e/6/7
W/Audio De-embedding
AT-PRO2HDREC-DA
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
2
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
1. Introduction ........................................................................................... 3
2. Package Contents ........................................................................................... 3
3. Features ........................................................................................... 3
4. Specifications ........................................................................................... 3
5. Panel Descriptions
a. Front Panel ........................................................................................... 4
b. Rear Panel ........................................................................................... 4
6. Connection and Installation ........................................................................................... 5
7. Safety Information ........................................................................................... 6
8. Warranty ........................................................................................... 7
9. Atlona Product Registration ........................................................................................... 8
Table of Contents
3
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Bandwidth frequency 6.75 Gbps
Input Ports 1 x CAT5e/6/7
1 x IR 3.5mm
Output Ports 1 x HDMI (Female type)
1 x IR 3.5mm
1 x RS-232
1 x Stereo audio
1 x S/PDIF
Resolution outputs Video: up to 1080p@60Hz
Vesa: up to 1920x1200
Dimensions (HxWxD) .98x4.02x7.09 (inch) or 25x102x180 (mm)
Weight .8lbs or .36kg
Temperature -4°F to 158°F or -20°C to 70°C
Power consumption 6.5W
Introduction
The Atlona HDMI Extender over single CAT5e/6/7 extends IR, RS-232, audio and video content
between sources and displays when used in tandem with PRO2HD matrix switchers. With pass
through support of up to 1080p or 1920x1200, 3D, 2Channel and Multi-channel audio, bidirectional
RS-232 and IR signals. The AT-PRO2HDREC-DA allows almost any audio/visual system set up to be
used.
Package Contents
Features
• 1 x AT-PRO2HD1616M-RX
• 1 x 5V/2.6A Universal DC adaptor
• 1 x IR 3.5mm Receiver
• 1 x IR 3.5mm Emitter
• 1 x User Manual
• Extends IR, RS-232, audio and visual content up to 330ft over a single high quality CAT5e/6/7 cable
• Audio de-embedding allows 2Channel and Multichannel audio to be passed to an amp through 3.5mm
S/PDIF or Stereo Audio ports
• Supports resolutions up to 1080p or 1920x1200 on pass through
• 2Channel and Multi-channel audio pass through ensures the highest quality signals are preserved
• Supports 3D pass through
• HDCP compliant
Specifications
