Sida 1/15

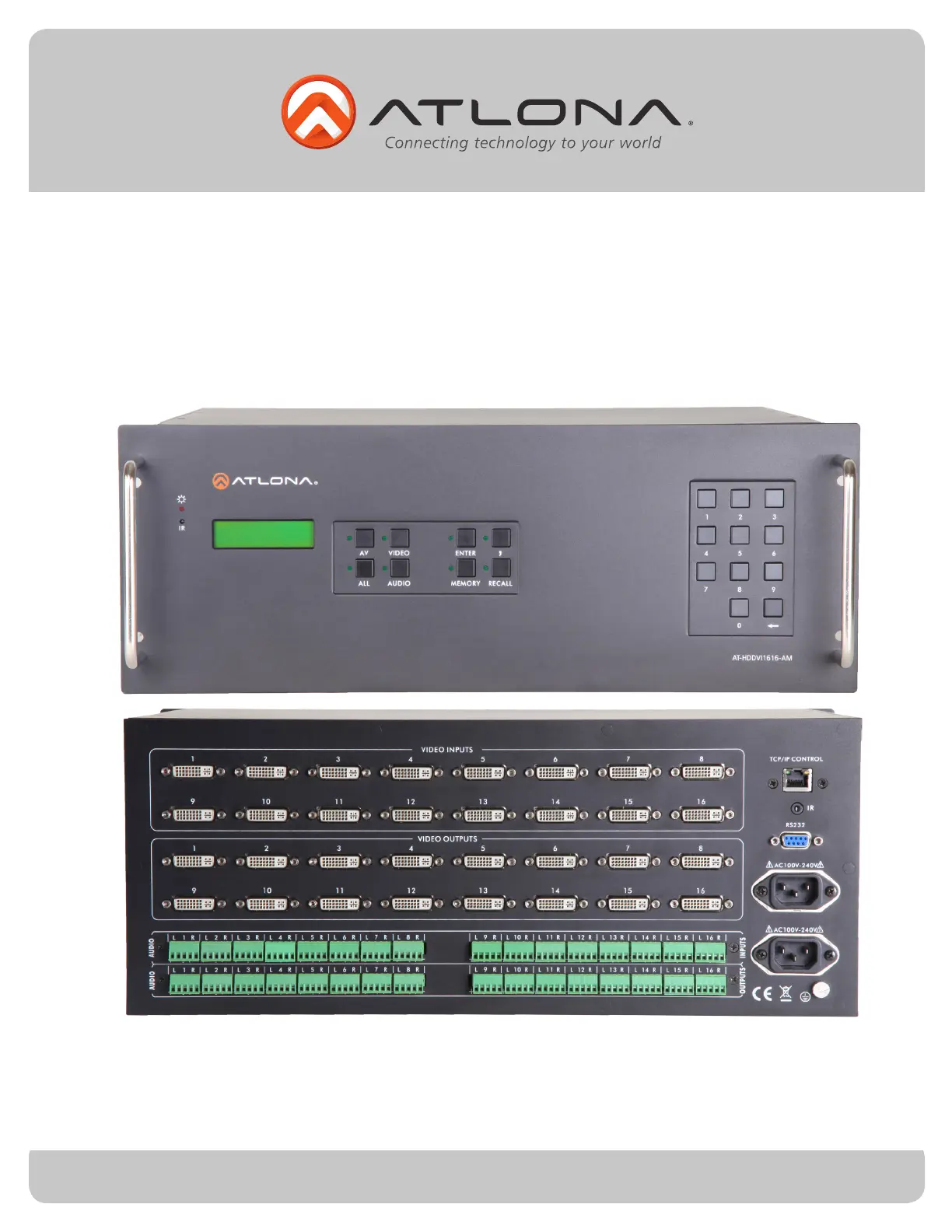

User Manual
Atlona 16 by 16 DVI and Audio
Matrix Switcher
AT-HDDVI1616-AM
Toll free: 1-877-536-3976
Local: 1-408-962-0515
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
2
atlona.com
1. Introduction ........................................................................................... 3
2. Package Contents ........................................................................................... 3
3. Features ........................................................................................... 3
4. Specifications ........................................................................................... 4
5. Panel Descriptions
a. Front Panel ........................................................................................... 4
b. Rear Panel ........................................................................................... 5
c. Panel Control ........................................................................................... 5
6. Remote Control ........................................................................................... 6
7. TCP/IP ........................................................................................... 6-8
8. RS-232 ........................................................................................... 9-10
9. EDID ...........................................................................................10-11
10. Audio ...........................................................................................11-12
11. Connection and Installation ........................................................................................... 12
12. Safety Information ........................................................................................... 13
13. Warranty ........................................................................................... 14
14. Atlona Product Registration ........................................................................................... 15
Table of Contents
Toll free: 1-877-536-3976
Local: 1-408-962-0515
3
atlona.com
Introduction
The Atlona 16 by 16 DVI and Audio Matrix Switcher is HDCP compliant, has 3 control options, 9
programmable memory presets, fast switching, and EDID learning. With switching as fast as .5
seconds and resolutions of up to 1920x1200 or 2k by 1k get the crisp video needed for presentations
of all types.
Package Contents
Features
• 1 x AT-HDDVI1616-AM
• 1 x IR Remote
• 1 x IR Receiver Module
• 1 x RS-232 cable
• 2 x Power Cord
• 1 x Software CD
• 1 x User Manual
• HDCP compliant for seamless connections.
• 9 programmable memory presets for quick switching to the most used settings
• With the learning feature, EDID allows for compatibility between any source and display
• Redundant power supply keeps the switcher running in the event the main power supply fails
• Fast selection, switching time can be as fast as 0.5 seconds. Switching time varies with different
displays.
• RS-232 compatible
• Independent audio and video switching, allowing 2Channel audio to be sent to any amp or recorder
needed.
• TCP/IP control enabled
• Mountable with 4RU Racks
Power Cord
IR Receiver Module
RS-232 cable
