Sida 1/10

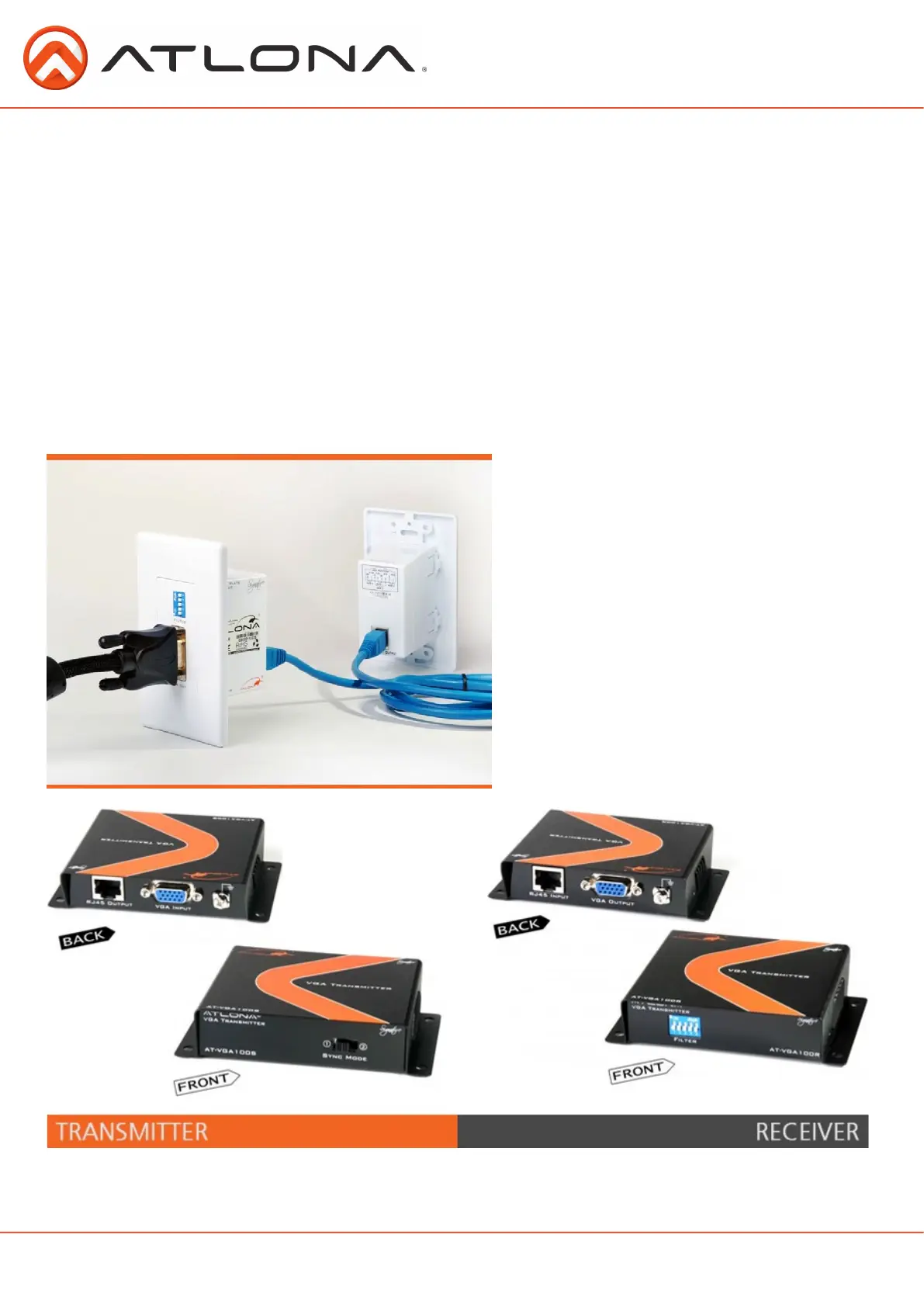

User Manual
Passive VGA Extender with Wall Plate or Box options
up to 330ft over 1 x CAT5/6/7 Cable
AT-VGA100-SR and AT-WPVGA-SR
AT-WPVGA-SR
AT-VGA100-SR
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
1. Introduction .................................................. 2
2. Package Contents .................................................. 2
3. Features .................................................. 2
4. Specification .................................................. 3
5. Connection and Operation .................................................. 3
6. Mode Selection .................................................. 4
7. Dip Switch .................................................. 4
8. Troubleshooting .................................................. 4
9. STP Connector .................................................. 5
10. Wiring Configuration .................................................. 6
11. Safety Information .................................................. 7
12. Warranty .................................................. 8
13. Atlona Product Registration .................................................. 9
TABLE OF CONTENTS
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
The Atlona passive VGA Extenders over 1 x CAT5/6/7 cable up to the distance of 330ft with resolutions up to
1280x1024. The Atlona VGA Extenders are a perfect way of extending video signal away from the computer.
The advanced design allows no limitations or delays when using extender versus a direct connection to the
computer.
There extenders can be mixed and matched with each other. The wall plate transmitter can be matched with
“box” receiver and the other way around. Of course, the wall plate transmitter will perfectly work with wall
plate receiver and “box” transmitter with “box” receiver.
Combinations are below:
a. AT-WPVGA-S + AT-WPVGA-R
b. AT-VGA100-S + AT-VGA100-R
c. AT-WPVGA-S + AT-VGA100-R
d. AT-VGA100-S + AT-WPVGA-R
Plug and Play, no drivers or software needed, user will not even notice the difference when using an extender
versus a direct connection. The extenders required no external power.
The VGA Extenders are a great solution for many different applications, e.g., classroom, office environment,
data-center, training room and many others where the computer must be placed further away from the users
display.
Depends on the package selected as this manual is for 6 models
• Module or 2 Modules – depending on the model purchased
• Instructions manual
• Wall plate Modules include white decora plate
• Perfect for extending VGA signal further away than standard cables may allows.
• Extend signals up to 330ft away from the computer on a single low-cost Cat5, 6 or 7 cables.
• Wall plate transmitter is compatible with “box” receiver and other way around.
• Resolution support up to 1280x1024
• No power supplies are needed
• Plug and Play, no drivers or software needed
• Any computer is compatible, no limitations
INTRODUCTION
PACKAGE CONTENTS
FEATURES
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
