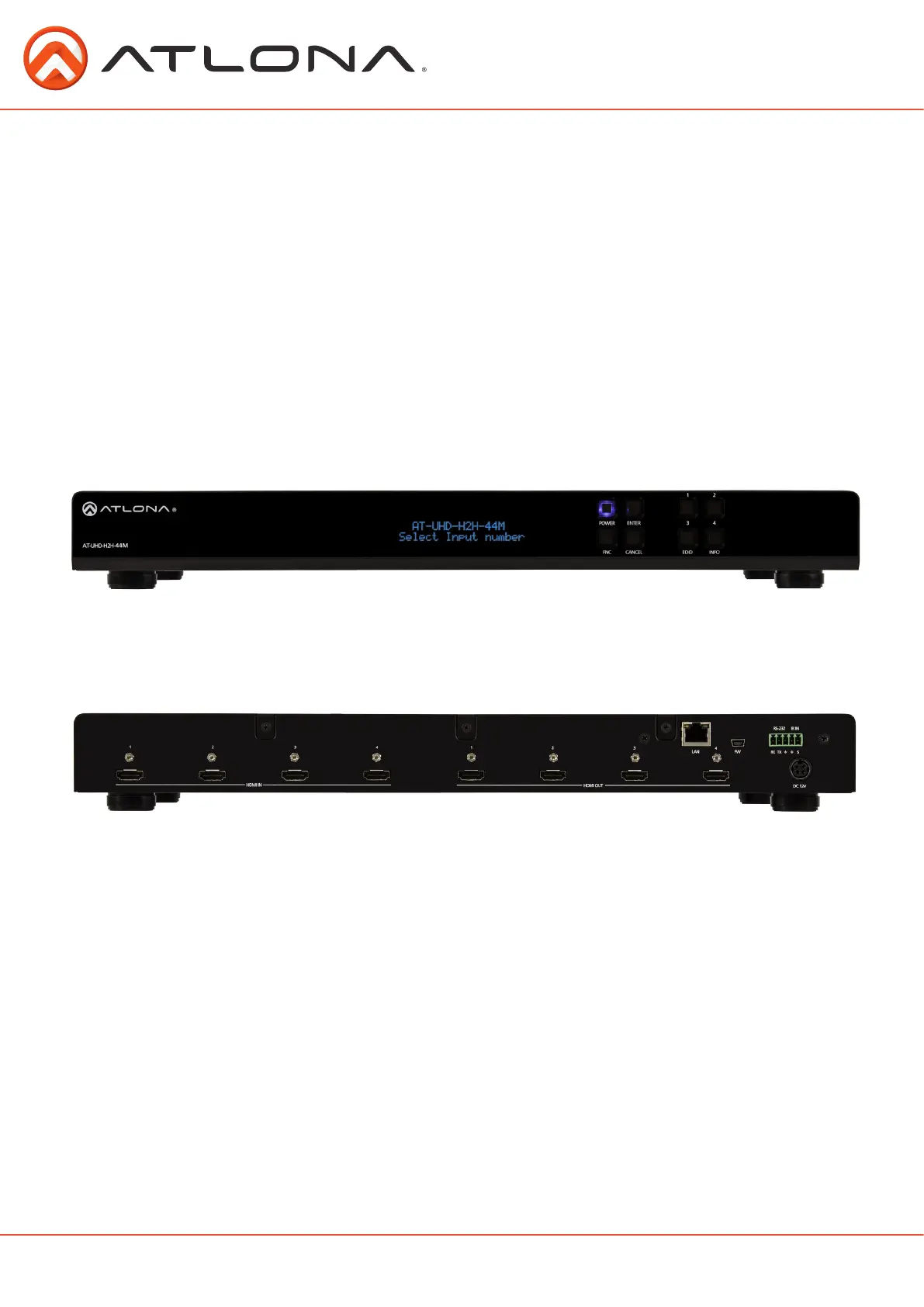

4x4 4K/UHD HDMI to HDMI
Matrix Switcher
User Manual
AT-UHD-H2H-44M
Please check http://www.atlona.
com/UHD-H2H-44M.html
for the most recent firmware
update or manual.

2
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
1. Introduction ................................................................................. 3
2. Package Contents ................................................................................. 3
3. Features ................................................................................. 3
4. Before You Start ................................................................................. 3
5. Panel Descriptions
• Front Panel ................................................................................. 4
• Back Panel ................................................................................. 4
6. Rack Mounting ................................................................................. 5
7. Connection Diagram ................................................................................. 6
8. Button Set Up ................................................................................. 7-10
9. WebGUI ................................................................................. 11-17
10. RS-232 ................................................................................. 18-20
11. IR Remote Control ................................................................................. 20
12. Captive Screw ................................................................................. 21
13. Specifications ................................................................................. 22
14. Safety Information ................................................................................. 23
15. Warranty ................................................................................. 24-25
16. Atlona Product Registration ................................................................................. 26
Table of Contents

3
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Introduction
The Atlona 4x4 4K/UHD HDMI to HDMI Matrix Switcher is designed for the best audio, video, and
control experience. Pass through of video up to 4K/UHD or 2560x2048, audio up to Dolby TrueHD,
DTS-HD Master Audio, or Dolby Atmos, and multiple control options (such as TCP/IP, RS-232, IR,
front panel, and WebGUI) enables the UHD-H2H-44M to provide the highest quality experience no
matter if playing a movie, giving a presentation, and more.
Package Contents
Features
• 1 x AT-UHD-H2H-44M
• 1 x 5 pin captive screw female connector - IR (2 pin), RS-232 (3 pin)
• 1 x 12V DC power supply
• 1 x IEC C13 power cable
• 1 x IR Remote control
• 1 x Pair of rack mount ears
• 1 x User Manual
• Supports resolutions up to 4K/UHD 60Hz @ chroma sub-sampling 4:2:0 8-bit
• HDCP 2.2 compliant
• EDID learning for up to 4 display EDIDs
• Built in internal EDID mode provides 14 unique EDIDs to ensure compatibility
• Multiple control options such as RS-232, IR, TCP/IP, WebGUI, and front panel
• Multi-channel audio pass through up to Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio,
and Dolby Atmos
• Supports digital audio up to 24-bit, 192 kHz
Before You Start
Use a component surge suppressor with line conditioning for best results.
Note: Atlona’s warranty does not cover damage due to electrical disturbances. A component surge
suppressor with line conditioning is highly suggested, especially in areas with electrical
storms.
