Installation Guide

AT-HDR-EX-70C-KIT

4K HDR HDMI Over HDBaseT TX/RX Kit

AT-HDR-EX-70C-KIT

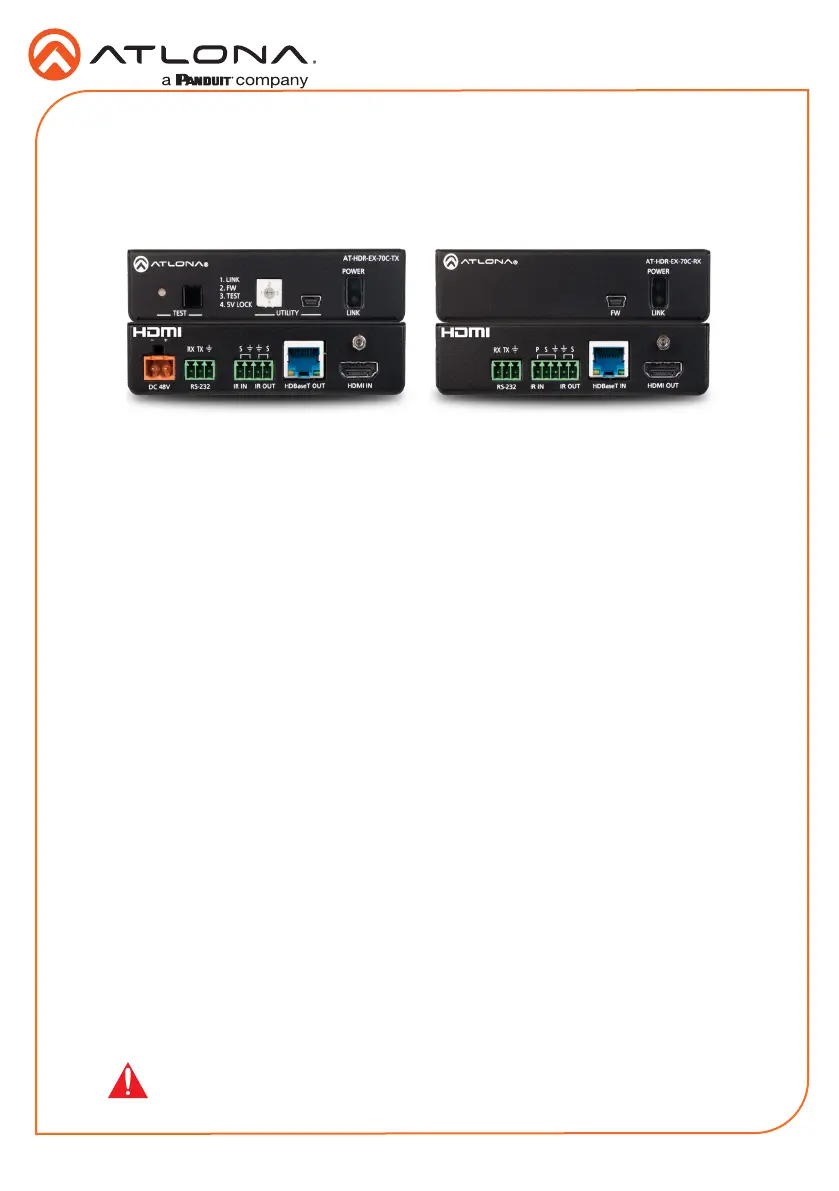

The Atlona AT-HDR-EX-70C-KIT is an HDBaseT transmitter/receiver kit for high dynamic range

(HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4

chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-70C-KIT provides

transmission of HDMI, as well as bidirectional IR and RS-232 control signals up to 230 feet

(70 meters) for 1080p video, and up to 130 feet (40 meters) for 4K HDR over CAT6a/7 cable.

This extender kit features visually lossless compression with no latency to enable HDR and

4K/60 4:4:4 video signal extension over HDBaseT. For additional integration convenience, the

transmitter remotely powers the receiver through Power over Ethernet (PoE). The HDR-EX-70C-

KIT delivers a cost-eective solution for HDMI and control signal extension, and includes surface

mounting hardware for discrete installation.

IMPORTANT: Visit http://www.atlona.com/product/AT-HDR-EX-70C-KIT for the

latest rmware updates and Installation Guide.

1 x AT-HDR-EX-70C-TX

1 x AT-HDR-EX-70C-RX

4 x Mounting brackets

8 x Mounting screws

1 x 48V DC power supply

1 x IR emitter

1 x 2-pin captive screw connector

2 x 3-pin captive screw connector

1 x 4-pin captive screw connector

1 x 5-pin captive screw connector

1 x Installation Guide
