Sida 1/9

Installation Guide

AT-USB-EX100-KIT

IMPORTANT: Visit https://www.atlona.com/product/AT-USB-EX100-KIT for the latest

rmware updates and User Manual.

1 x AT-USB-EX100-TX

1 x AT-USB-EX100-RX

2 x 5 V / 4 A Power Supplies

4 x Mounting Plates

8 x Mounting Screws

1 x Installation Guide

Package Contents

HDBaseT Extender Kit for USB 2.0

AT-USB-EX100-KIT

The Atlona AT-USB-EX100-KIT is a long-distance extender kit for high speed USB signals. It

supports transmission of USB 2.0 data up to 330 feet (100 meters) using a single, cost eective

Category-type twisted pair cable. The AT-USB-EX100-KIT is ideal for popular conferencing

applications such as Zoom® and Microsoft® Teams®, where USB components including

laptops, cameras, microphones, and speakers are located in dierent areas of the room. The kit

is also suitable in classrooms for routing USB between an interactive display or projector, and

the instructor’s laptop. The AT-USB-EX100-KIT includes both transmitter and receiver endpoints.

Compact enclosures and included brackets allow the devices to be discretely mounted near

computers and USB peripherals. The AT-USB-EX100-KIT is a great solution for connecting USB

components separated by distances not supported by traditional cabling.

Installation Guide

AT-USB-EX100-KIT

FW PWRHOSTDEVICE

AT-USB-EX100-TX

DC 5V HDBaseT OUT

FW PWR

AT-USB-EX100-RX

DC 5V HDBaseT IN

DEVICE

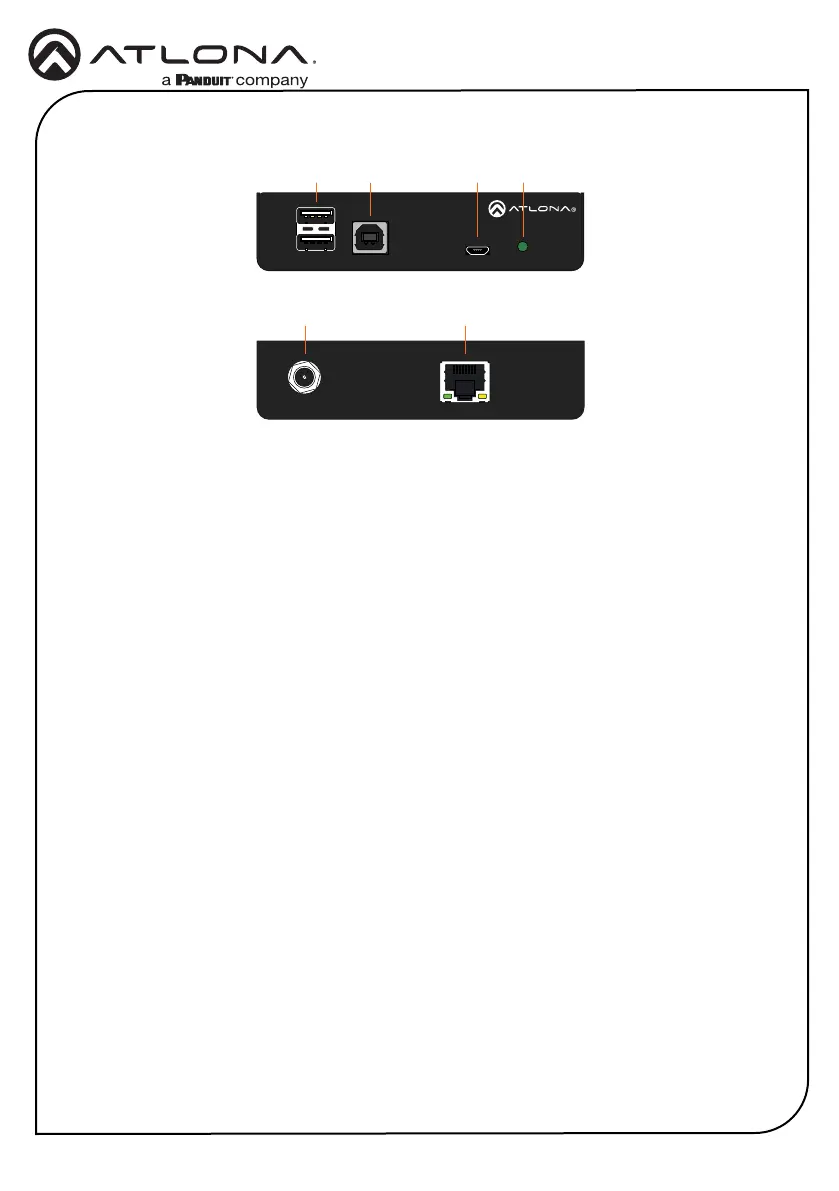

1 DEVICE

Connect up to two USB devices (e.g. mouse, keyboard, etc.) to these ports. These ports

provide 2.5 W per USB device interface.

2 HOST

Connect a USB cable from this port to the host computer.

3 FW

Connect a micro-USB to USB-A cable from this port, to a computer, to update the rmware.

4 PWR

The PWR LED indicator will glow green when the AT-USB-EX100-TX is powered.

5 DC 5V

Connect the included 5 V DC power supply to this power receptacle.

6 HDBaseT OUT

Connect a category cable from this port to the HDBaseT IN port of the AT-USB-EX100-RX.

Front

Rear

5 6

FW PWRHOSTDEVICE

AT-USB-EX100-TX

DC 5V HDBaseT OUT

FW PWR

AT-USB-EX100-RX

DC 5V HDBaseT IN

DEVICE

1 3 4

AT-USB-EX100-TX

Installation Guide

AT-USB-EX100-KIT

FW PWRHOSTDEVICE

AT-USB-EX100-TX

DC 5V HDBaseT OUT

FW PWR

AT-USB-EX100-RX

DC 5V HDBaseT IN

DEVICE

FW PWRHOSTDEVICE

AT-USB-EX100-TX

DC 5V HDBaseT OUT

FW PWR

AT-USB-EX100-RX

DC 5V HDBaseT IN

DEVICE

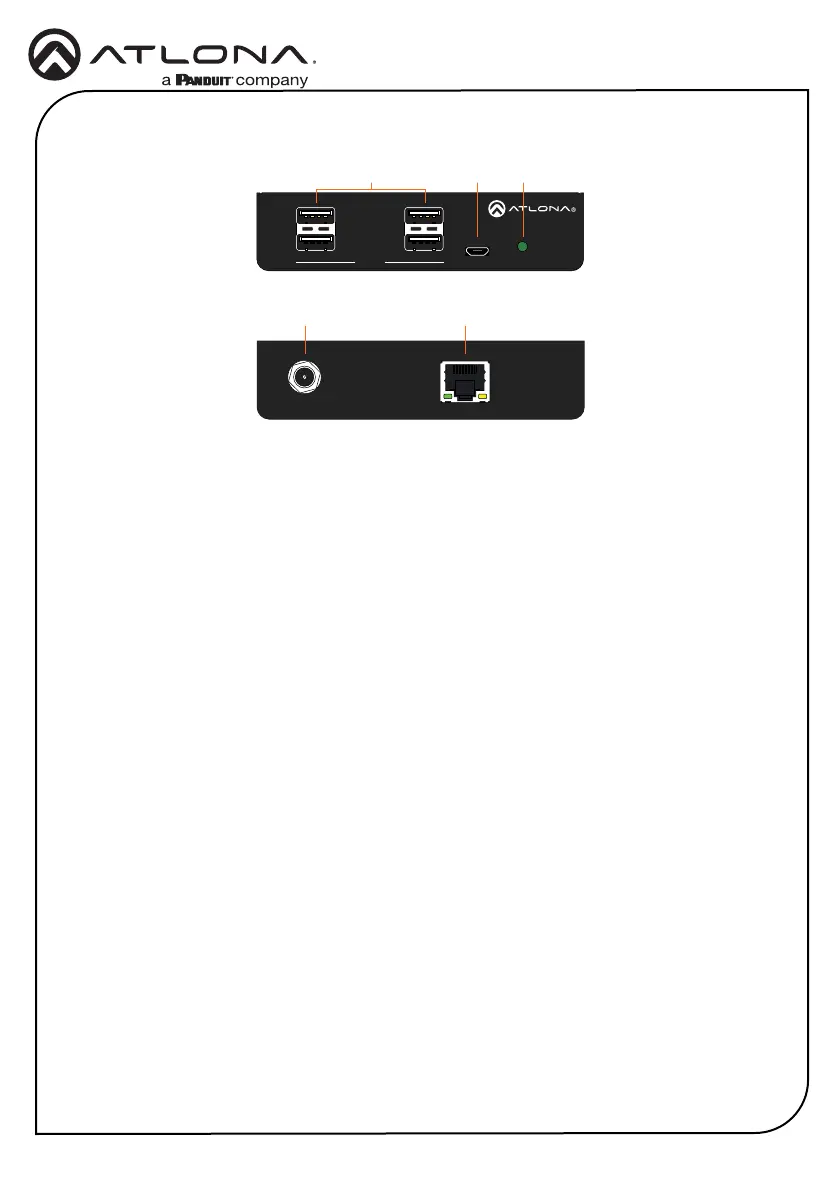

1 DEVICE

Connect up to four USB devices (e.g. mouse, keyboard, etc.) to these ports. These ports

provide 2.5 W per USB device interface.

2 FW

Connect a micro-USB to USB-A cable from this port, to a computer, to update the rmware.

3 PWR

The PWR LED indicator will glow green when the AT-USB-EX100-RX is powered.

4 DC 5V

Connect the included 5 V DC power supply to this power receptacle.

5 HDBaseT OUT

Connect a category cable from this port to the HDBaseT IN port of the AT-USB-EX100-TX.

Front

Rear

4 5

1 2 3

AT-USB-EX100-RX

Produktspecifikationer

Varumärke:	Atlona
Kategori:	AV extender
Modell:	AT-USB-EX100-KIT
LED-indikatorer:	Ja
Certifiering:	CE, FCC, CE, FCC, UL
Modell:	Sändare och mottagare för AV-utrustning
Uteffekt:	4 A
USB-anslutning:	Micro-USB, USB Type-A, USB Type-B
HDBaseT-certifierad:	Ja
Värdgränssnitt:	Micro-USB 3.2 Gen 1 (3.1 Gen 1) Type-B
RJ-45 utgångsportar:	1
RJ-45 ingångsportar:	1
Sändarens mått (BxDxH):	109 x 95.5 x 29 mm
Sändarens vikt:	281 g
Kabeltyper som stöds:	Cat5e, Cat6
Produktens färg:	Svart
Antal USB-portar:	9
Temperatur vid drift:	0 - 50 ° C
Temperaturintervall (förvaring):	-20 - 60 ° C
Intervall för relativ operativ luftfuktighet:	20 - 90 %
AC-inspänning:	100 - 240 V
Anslutningsteknologi:	Kabel
Likströmsingång:	Ja
Strömkälla av typen:	DC
Växelström Frekvens:	50 - 60 hz
Antal USB 2.0 anslutningar:	6
Faktisk dataöverföringshastighet:	315 Mbit/s
Maximal överföringshastighet avstånd:	100 m
Mottagarvikt:	280 g
Mottagare (B x D x H):	109 x 95.5 x 29 mm
Mottagare, bredd:	109 mm
Mottagare, djup:	95.5 mm
Mottagare, höjd:	26 mm
Micro-USB 2.0 anslutningar:	2
Antal RJ-45 portar (mottagare):	1
Antal RJ-45 portar (sändare):	1
Arbetsspänning (sändare):	5 V
Sändare, djup:	95.5 mm
Sändare, höjd:	26 mm
Sändare, bredd:	109 mm
