Sida 1/20
User Manual
User Manual
User Manual
User ManualUser Manual
AC
AC
AC
ACAC-
-
-
--FRESCO
FRESCO
FRESCO
FRESCOFRESCO-
-
-
--CAP-4
CAP-4
CAP-4
CAP-4CAP-4
1 HDMI Input/4 HDMI Outputs Dedicated Video Wall Processor-
Supports up to 18Gbps 4K60 (4:4:4) Output Resolutions
Cascade ultiple for M Processors Larger Video Wall Arrays

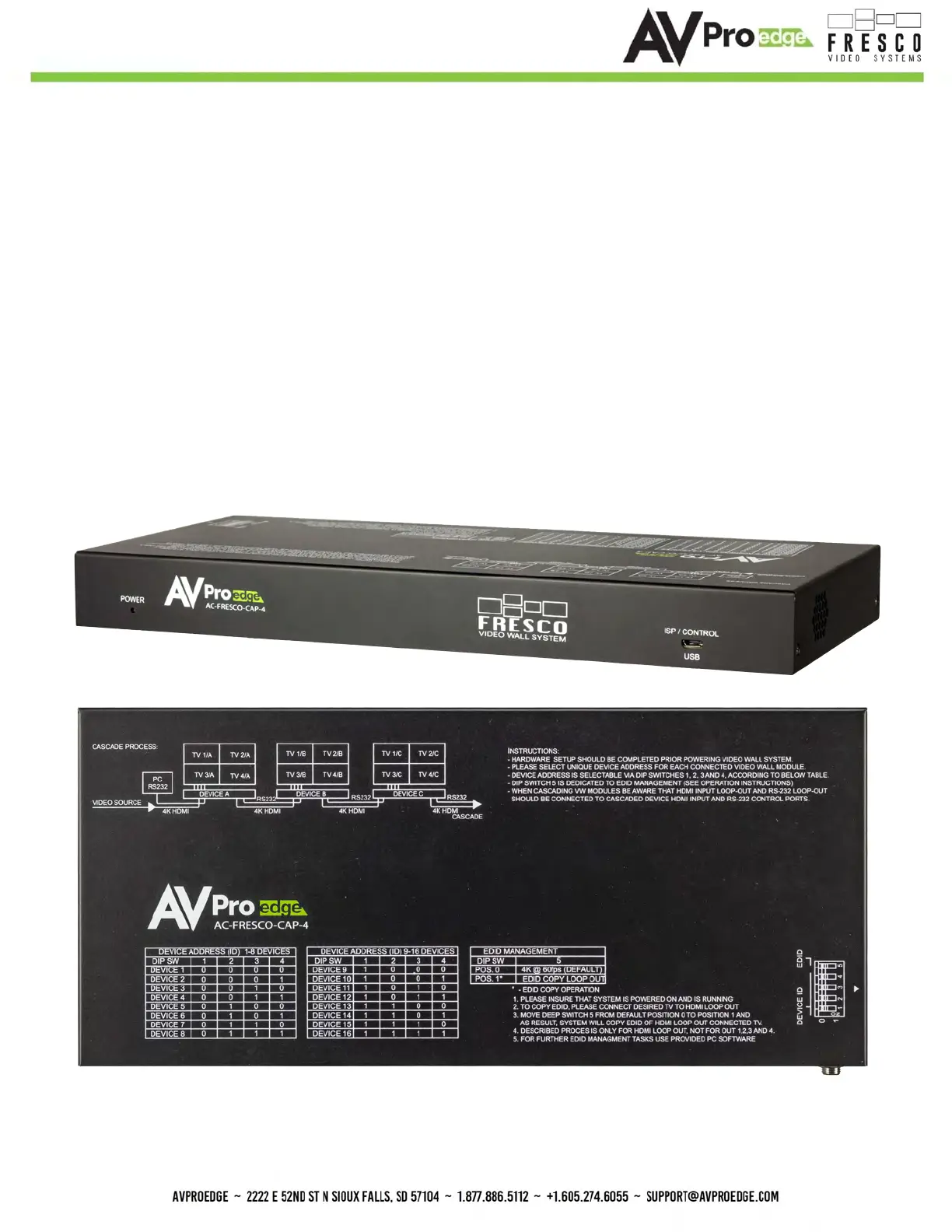

AC-FRESCO-CAP-4
Page 1
Features:
Features:
Features:
Features:Features:
•
HDMI 2.0(a/b)
•
18Gbps Bandwidth Support
•
720P to 4K60 4:4:4 Output Resolution
•
HDCP 2.2 (and all earlier versions supported)
•
EDID Management
•
IR, RS-232 and LAN Control Options
•
Balanced Analog Out (2CH PCM)
•
Down-scaling mode for mixed systems
Easy to use:
Easy to use:
Easy to use:
Easy to use:Easy to use:
•
Install in seconds
•
Feature rich
•
EDID management
•
IR Remote
•
IR & RS-232 Control
•
LAN Control
In The Box:
In The Box:
In The Box:
In The Box:In The Box:
•
AC-FRESCO-CAP-4 Video Wall
Processor
•
IR Remote Control
•
5V Locking Power Supply
•
Two 3 s-Pin Terminal Block
•
One 5-pin Terminal Block
•
Mounting Brackets
•
Rubber Feet
Quick Installation:
Quick Installation:
Quick Installation:
Quick Installation:Quick Installation:
1.
Connect the HDMI input source (Blu-ray, Set Top Box, etc...) to - - .the AC FRESCO CAP-4
2.
Connect the four HDMI O your Video Wall utputs from the AC-FRESCO-CAP4 to four displays.
3.
Power on the source.
4.
Connect the power supply into the AC- .FRESCO-CAP4
5.
Turn on output devices/displays.
6.
Use the free LAN/RS-232 PC software to setup the video wall configuration and image mapping.
The AC- FRESCO-CAP-4 is a Dedicated Video Wall Processor supporting Output Resolutions up to18Gbps 4K60 (4:4:4)
through its 1 HDMI Input and 4 HDMI outputs. The FRESCO is a "Plug-and-Play" 4-panel Video Wall which is
expandable cascading multiple processors larger Video Wall arrays. by FRESCO to build
Simple yet powerful, the FRESCO Video Wall Software makes setting up your video wall a breeze. Use either the PC
software, or built in browser based web GUI. Enter the bezel and visible picture dimensions for each display, and the
FRESCO will automatically adjust the picture mapping coordinates while compensating for bezel and visible picture
gaps. This process ensures an ideal Video Wall that is easy to do.
Video walls give sports bars, retail stores, entertainment venues, and hotels an opportunity eir customers to "WOW" th
with big, bold and bright messaging.
AC-FRESCO-CAP-4
Page 2
