User Manual
AC-CX42-AUHD
AC-CX42-AUHD
Page 1

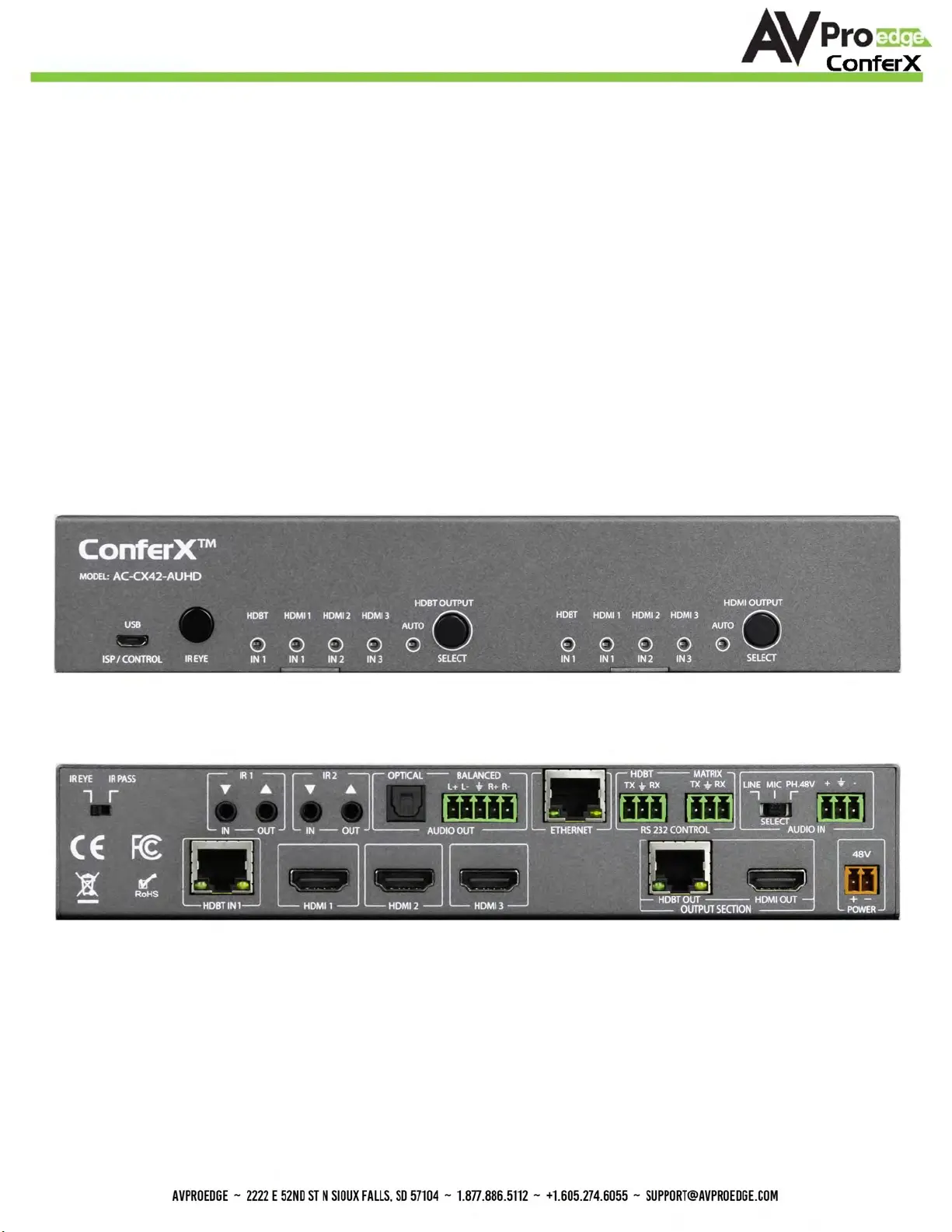

Introduction
The ConferX 4x2 Matrix Switcher is the ideal solution for any conference room, classroom or huddle space. This 4K
switcher is able to display any of the four sources through both the HDBaseT or HDMI output port. Each of these
outputs are completely independent of each other allowing to show two sources at the same time. With additional
audio inputs and outputs you will have no problems working with a microphone or intercom system. When you need
a stable solution for video distribution, look to the entire line of ConferX products.
With two HDBaseT inputs this switch works alongside two ConferX Wall Plate Transmitters at the same time. You can
have Mini DisplayPort, HDMI, VGA or USB-C inputs located up to 100 meters away from the AC-CX42-AUHD. This
allows a teacher or presenter to use their laptop directly at the podium or presenters’ station without having to
connect anything to the matrix switcher. The AC-CX42-AUHD gives any end user a simplified experience for sharing
their ideas inside a classroom, conference room or huddle space.
Simple, intuitive and automatic control makes this unit the ideal "leave in the room" matrix. The unit features an
"Auto" option where the it defaults to the last plugged in device or simple one button control for each output. Prefer
a control system? No problem, with a built-in web-based GUI and a full set of control commands you can make this
switch work for you.
Features:
Compatible AVProEdge HDBaseT products
HDBaseT Input/Transmitters
• AC-CXWP-HDMO-T
• AC-CXWP-MDP-T
• AC-CXWP-VGA-T
• AC-CXWP-USBC-T
· HDMI 2.0(a/b)
· 18Gbps Bandwidth Support (HDMI and HDBaseT output)
o Note: 18Gbps on HDBaseT requires AC-EX70-444-RNE Receiver with ICT
· 4K60 4:4:4 Support (HDMI and HDBaseT output)
· HDCP 2.2 (and all earlier versions supported)
· Advanced EDID Management
· Audio input and output
· Web based control GUI
· Works with 3rd party control (Control4, Crestron, Savant, etc)

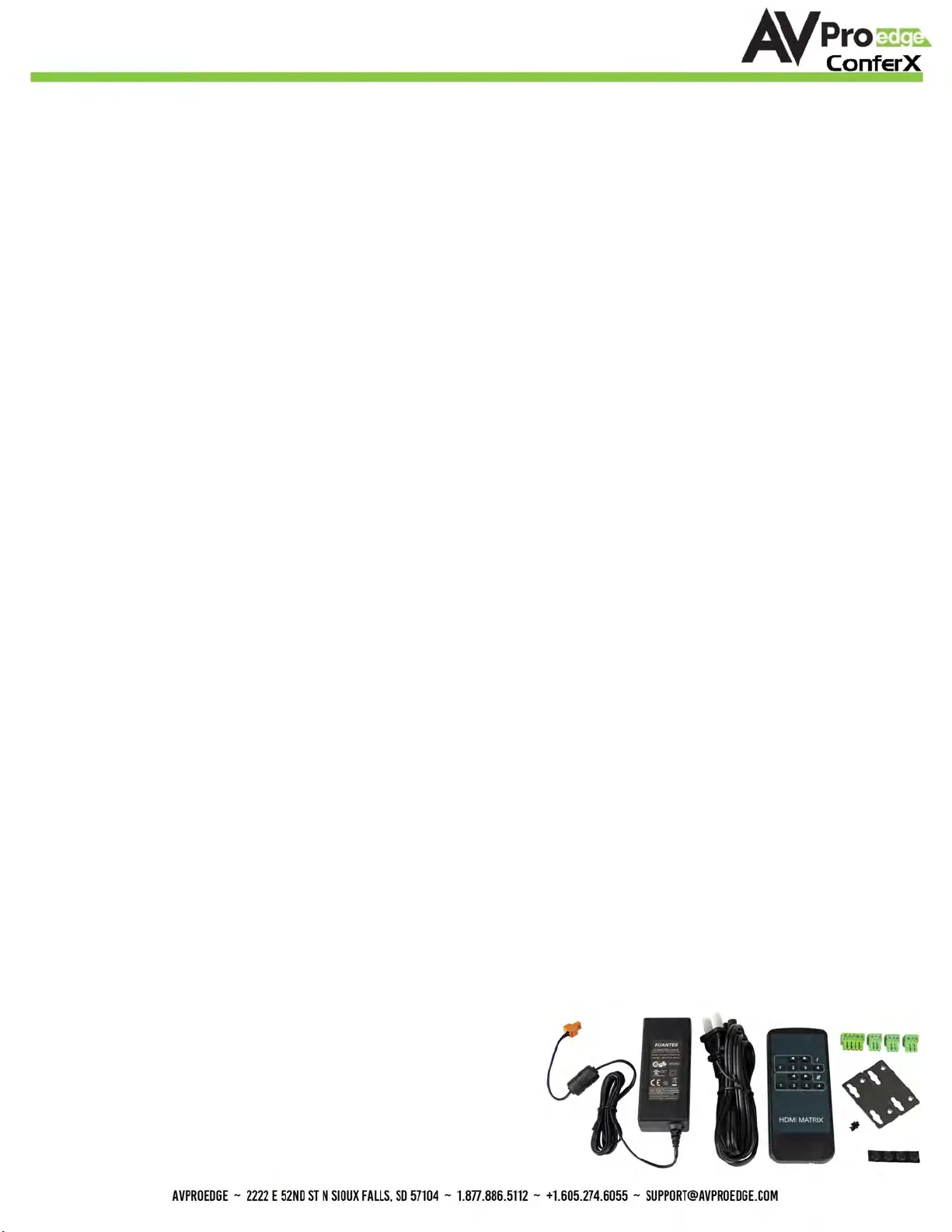

In The Box:
•
AC-CX42-AUHD Matrix Switch
•
IR Remote Control
•
48V/0.5A Power Supply
•
5 pin/3 pinTerminal Connectors
•
Mounting Brackets
HDBaseT Output/Receivers
•
•
•
•
AC-EX70-UHD-R
AC-EX100-UHD-R3
AC-EX70-444-RNE
AC-EX70-SC2-R
AC-CX42-AUHD
Page 2
