Sida 1/11

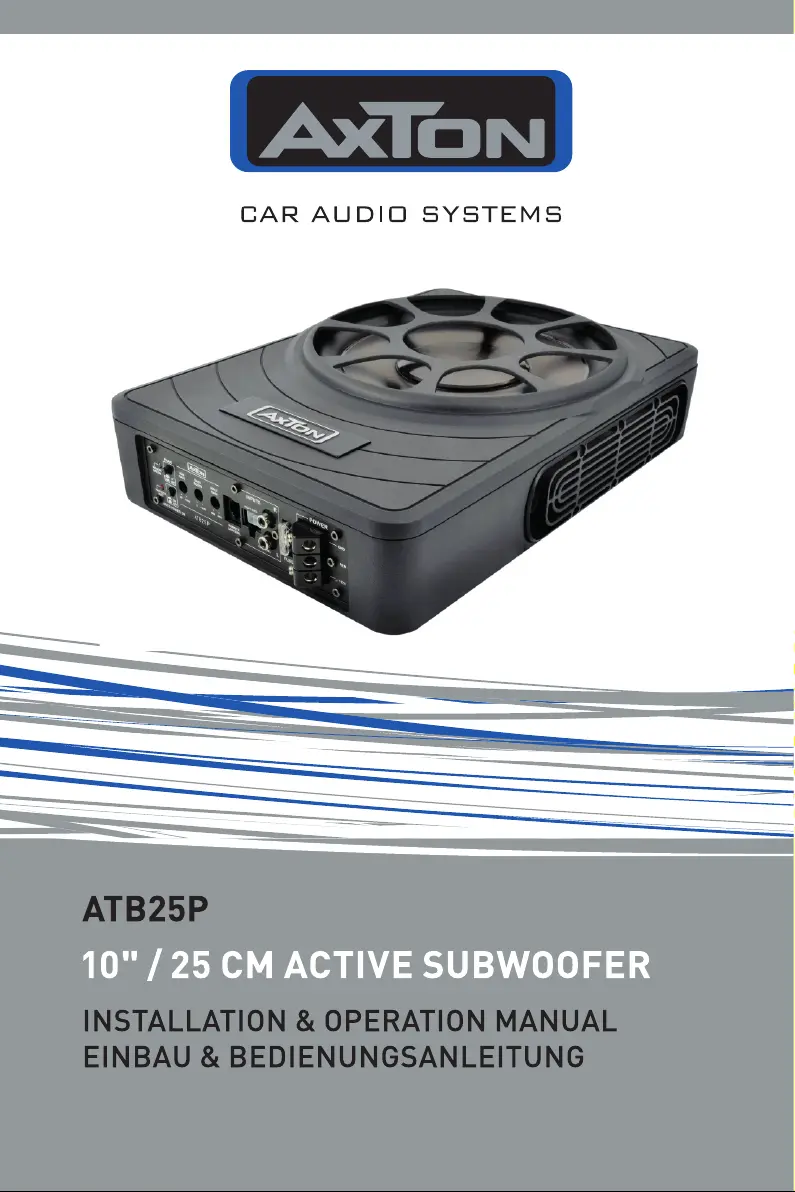

INSTALLATION & OPERATION MANUAL
EINBAU & BEDIENUNGSANLEITUNG
10" / 25 CM ACTIVE SUBWOOFER
ATB25P
– 2 –
Dear Customer
Thank you and congratulations on your purchase of the AXTON ATB25P. This active
subwoofer system exclusively uses very high quality parts and components. As with all
high-quality car audio components, professional installation is highly recommended. If you
plan on installing this active subwoofer by yourself, please read the following installation
guide carefully, before you attempt the installation. You should retain this manual, the
packing and the purchasing receipt for future reference. For any further information about
mounting, connecting or adjusting this subwoofer system, please contact your AXTON
dealer.
UNPACKING THE SYSTEM
Carefully remove all parts from the giftbox and check whether they are in good undam-
aged condition, and match with the set contents listed below:
n ATB25P active subwoofer
n Bass Boost remote control
n 4-wire high level input plug
n Mounting clamps
n Set of mounting screws
n Installation guide
Please contact your authorized AXTON dealer, if the content of this set is incomplete,
or parts of it show signs of transport damage.
SPECIFICATIONS
n 10” active subwoofer
n Frequency response: 20 Hz – 150 Hz
n 180 W rms x 1 @ 2 ohms (< 0.4% THD / 14.4V)
n Class-A/Bamplier
n Supply voltage: 11 – 15 V DC
n Fuse: 25 A
n Variablelowpasslter:50Hz–150Hzwith12dB/oct.
n Subsoniclter:20Hz
n Selectable phase: 0 / 180°
n Variable Bass-Boost: 0 – 18 dB @ 45 Hz
n RCA, variable input sensitivity: 100 mV – 6 V
n High-Level, variable input sensitivity: 330 mV – 9 V
n External bass level remote control
n Signal to noise ratio: > 90 dB
n Dimensions W x H x D: 345 x 81 x 245 mm
n Net Weight: 6.5 kg
– 4 –
SAFETY INSTRUCTIONS
1. This unit is designed to be used in a vehicle with a 12 V battery and negative ground.
2. Before any wiring, always remove the negative terminal of the battery to prevent short-
circuiting. This is also the last lead to be (re-)connected.
3. Do not disassemble or alter the unit in any way, because that will also void your
warranty. Do not attempt to repair or to service the unit yourself, but contact an
authorized AXTON dealer instead.
4. Use only original accessories which are designed and manufactured for the unit,
otherwise you will risk to damage it. Install the unit according to the mounting manual
and use only the supplied mounting accessories. The forces of acceleration for
accidents are sometimes huge. Incorrect mounted units are a big risk for the driver
and the passengers of the car, during an accident.
5. Protect the unit from water and other liquids, which can enter the casing. A short
circuit or even fire could be the result.
6. Before you replace a defective fuse, try to find the cause for the short circuit. Please
pay attention to the cables of the power supply! If the short circuit doesn‘t result from
a failure of the power supply or wiring, you can replace the defective fuse with a new
one of identical value. If the short-circuit still exists, please contact an authorized
AXTON dealer.
7. Be careful not to drain the car battery while using the unit when the car engine is
turned off. Because the unit uses a considerable amount of energy and the battery
will be charged only while the engine is running, it might happen that the battery will
discharge to a point where it‘s not longer possible to start the engine.
8. If your car is parked in direct sunlight and there is a considerable rise in temperature
inside the car, allow the unit to cool off before operation.
9. The amplifier module employs a protection circuit to protect the transistors and the
woofer if the amplifier malfunctions. The amplifier’s protection circuitry will shut-off
the amplifier in case of short-circuit, overload or DC offset at the speaker outputs or
in case of overheat. In case the cause for protection shut-off has been eliminated, the
amplifier will operate normally again (green LED ON/ Red LED OFF). Otherwise the
amplifier will continue to switch on and off!
10. Do not use the unit with a weak or old battery as its optimum performance depends on
a normal battery supply voltage.
11. Please pay attention to the volume inside your vehicle, because you are obliged to
notice exterior sounds like a police siren or you might face penalties in case of an
accident or even loose your insurance cover.
12. Do not operate the unit in any other way than described in this manual. Failure to
follow the instructions within this manual will void your warranty.
