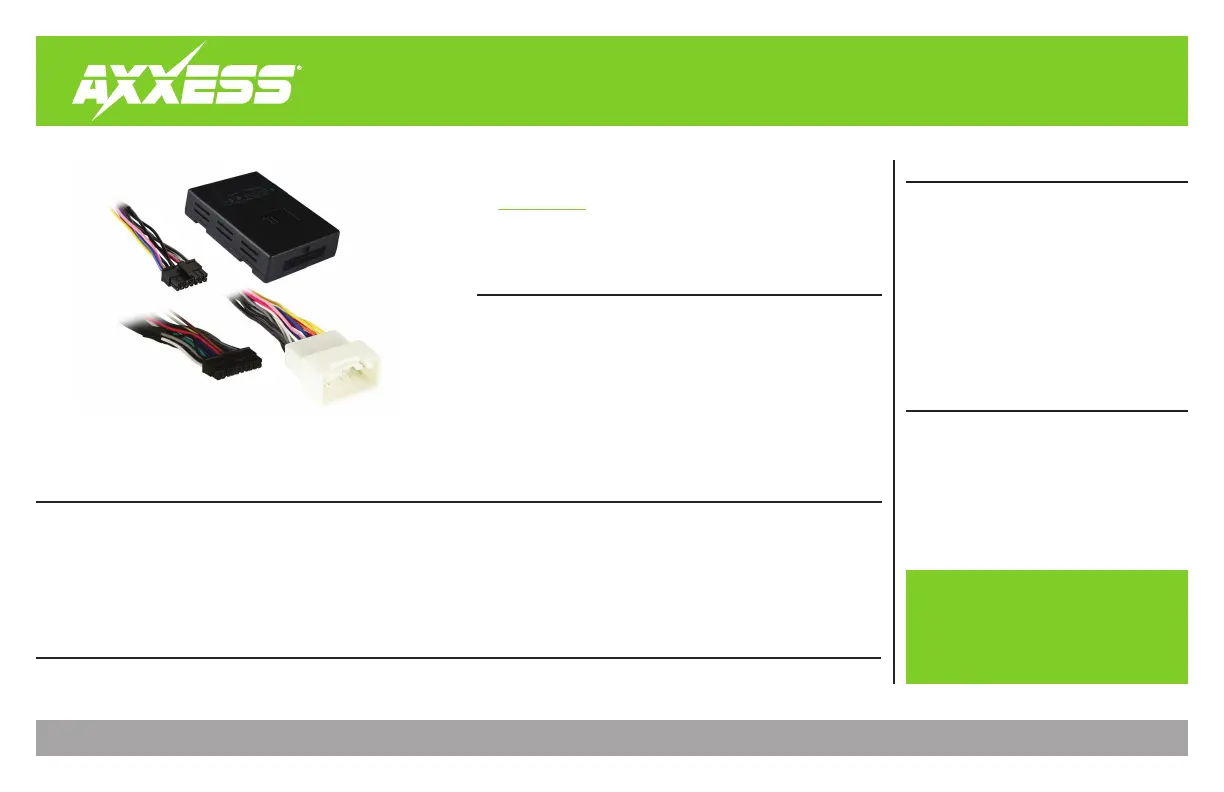

TYTO-01
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 11/28/18 INSTTYTO-01
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
• Small flat-blade screwdriver
TABLE OF CONTENTS
Connections .........................................................2-3
Installation .............................................................3
Programming .........................................................3
Audio level adjustment .........................................3
Wiring diagram ......................................................4
Toyota Digital Amplifier Interface 2001-2015
• Designed for amplified models
• Retains balance and fade
• Micro-B USB updatable
• TYTO-01 harness
• TYTO-01 interface
• 16-pin harness with stripped leads
APPLICATIONS
See inside front cover
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date
vehicle specific applications
2
APPLICATIONS CONNECTIONS
LEXUS
ES Series 2007-2012
ES Series (w/ multi disc) 2002-2006
GS Series 2001-2005
IS Series 2002-2005
LS Series 2001-2006
RX Series 2004-2008
SC Series 2002-2010
TOYOTA
4-Runner 2003-2013
Avalon 2005-2010
Avalon 2011-2012
(Camry) Solara 2004-2008
Camry (w/o nav) 2012-2013
Camry 2007-2011
Corolla 2003-2011
TOYOTA (Cont.)
FJ Cruiser 2011-2014
Highlander 2008-2013
Matrix 2005-2012
Prius 3rd Gen (w/o nav) 2012-2015
Plug-In (PHV) (w/o nav) 2012-2015
Prius 2004-2011
Rav-4 2004-2014.5
Sequoia 2005-2012
Sequoia (w/o nav) 2013
Sienna 2004-2014
Tacoma 2005-2013
Tundra 2006-2013
Tundra (Double Cab) 2004-2005
Venza (w/ SD card based nav) 2013-2014
Venza 2009-2012
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the White wire to the left front positive speaker output.
• Connect the White/Black wire to the left front negative speaker output.
• Connect the Gray wire to the right front positive speaker output.
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the Green wire to the radio’s left rear positive speaker output.
• Connect the Green/Black wire to the radio’s left rear negative speaker output.
• Connect the Purple wire to the radio’s right rear positive speaker output.
• Connect the Purple/Black wire to the radio’s right rear negative speaker output.
• Connect the Blue/White wire to the amplifier turn on wire. This wire must be connected to
hear sound from the factory amplifier.
• Tape off and disregard the following (6) wires, they will not be used in this application:
Red, Brown, Light Green, Blue/Pink, Green/Purple, Orange/White
