200mm

7.87in

480mm

18.9in

600mm

23.62in

1500mm

59.06in

1200mm

47.24in

300mm

11.81in

400mm

15.75in

500mm

19.69in

600mm

23.62in

800mm

31.5in

1000mm

39.37in

600mm

23.62in

(Max VESA Width Distance)

8.2mm

0.32in

10.4mm

0.41in

1256mm

49.45in

1520mm

59.84in

(Product Height)

6mm

0.24in

21mm

0.83in

(Excluding End Caps)

21mm

0.83in

(Excluding End Caps)

705mm

27.76in

Product Width

(Including End Caps)

542mm

21.34in

57.5mm

2.26in

(Product Depth)

ISOMETRIC VIEW

BT8390-WFK3 (x2)

BT8390-VESA1200F (x1)

BT7564 (x2)

(Option for VESA 1500mm)

BT8390-070 (x2)

80mm

3.15in

(Excluding End Caps)

80mm

3.15in

(Excluding End Caps)

264mm

10.39in

758mm

29.84in

158mm

6.22in

158mm

6.22in

426mm

16.77in

24mm

0.94in

24mm

0.94in

400mm

15.75in

(Adapter Installation

Distance)

400mm

15.75in

(Adapter Installation

Distance)

B-Tech International Design & Manufacturing Limited

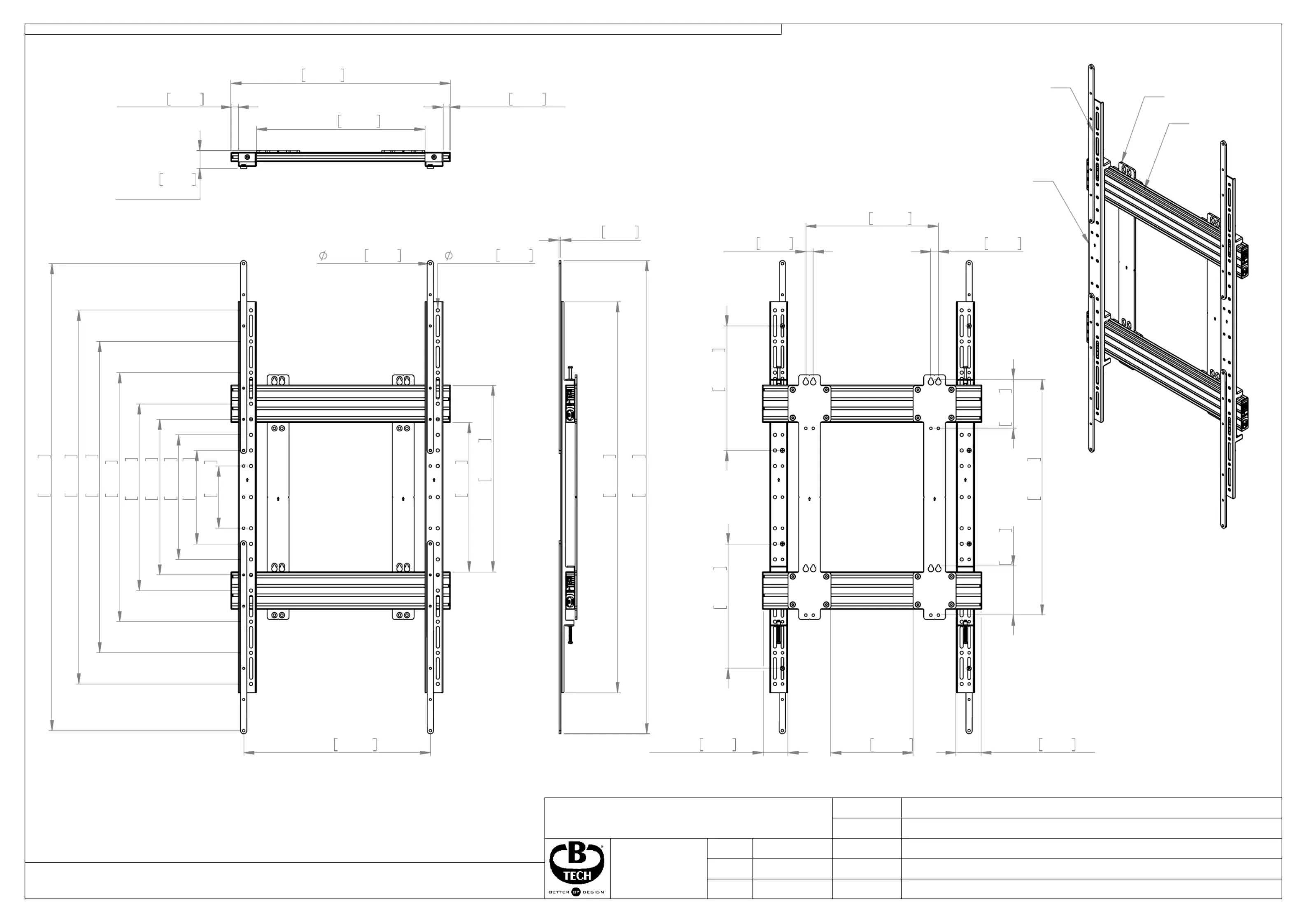

XL Portrait Wall Mount for Ultrawide Displays

BT9923

R00

B-Tech No:

Title:

Revision:

The information contained in this drawing is the sole property of B-Tech International Design and Manufacturing Limited, any reproduction in part or whole without the written permission of B-Tech International Design and Manufacturing Limited is prohibited.

Sheet:

1 of 1

File Name: BTD-BT9923

Date:

26/05/2023

1:10

Scale:

Size:

Part of the B-Tech International Group

UNLESS

OTHERWISE

SPECIFIED

DIMENSIONS ARE

IN MILLIMETERS

B-Tech International Design and Manufacturing Limited makes no representation or warranties, express or implied, with respect to the reuse of the data provided herewith,

regardless of its format or the means of its transmission. B-Tech International Design and Manufacturing Limited makes every effort to provide accurate information, however

there is no guarantee or representation to the user as to the accuracy, currency, suitability or reliability of this data. The user assumes all risks associated with its use. B-Tech

International Design and Manufacturing Limited assumes no responsibility for actual or consequential damage incurred as a result of any user's reliance on this data.

Produktspecifikationer

Varumärke:	B-tech
Kategori:	Inte kategoriserad
Modell:	BT9923
Certifiering:	TUV
Modell:	Fast
Förbättrad kabelhantering:	Ja
Maximal skärmstorlek:	120 "
Minsta skärmstorlek:	105 "
Maxvikt:	200 kg
Justerbart djup:	Ja
Produktens färg:	Svart
Lutningsjustering:	Ja
Monteringssats:	Ja
Antal per förpackning:	1 styck
Hållbarhetscertifiering:	TUV
Material, hölje:	Stål
Monteringssätt:	Vägg
Harmonized System (HS)-kod:	94039010
Gränsssnitt för panelmontering:	1000 x 400,1000 x 600,1500 x 600 mm
Antal displayer som stöds:	1
Monteringsgränssnitt kompatibilitet (min):	1000 x 400 mm
Monteringsgränssnitt kompatibilitet (max):	1500 x 600 mm
