C - 1/4-20 x 12mm Screws

4mm Socket Drive

x 4

A - 4mm Hex Driver x 1

B - 5/16-18 x 50mm Screws

4mm Socket Drive

6201 x 8

6202 x 6

CASCADIA

These distinctive product configurations are protected by US and international

patents, trade dress, and/or copyright laws.

BDI are trademarks of Becker Designed, Inc.

6201 6202 Revision: 03-16-11

Component List

CASCADIA are engineered for easy assembly. Carefully follow this procedure to prevent any damage.

Unpack and identify the components. The assembly workspace should be a non-marring surface such as clean carpet.

For missing hardware pieces, please contact BDI Customer Service at customerservice@bdiusa.com.

For all other concerns, please contact your BDI Retailer.

6201 6202

ASSEMBLY INSTRUCTIONS

BDIUSA.COM CUSTOMERSERVICE@BDIUSA.COM

Placement and Maintenance

CASCADIA are designed for indoor use on level floors. Clean glass with glass cleaner, and shelf with a moist cloth.

D - Table Assembly x 1

E - Left Leg x 1

F - Right Leg x 1

G - Horizontal Bar x 1

CASCADIA 6201 Desk

CASCADIA 6202 Console

CASCADIA

6201 6202

ASSEMBLY INSTRUCTIONS

BDIUSA.COM CUSTOMERSERVICE@BDIUSA.COM

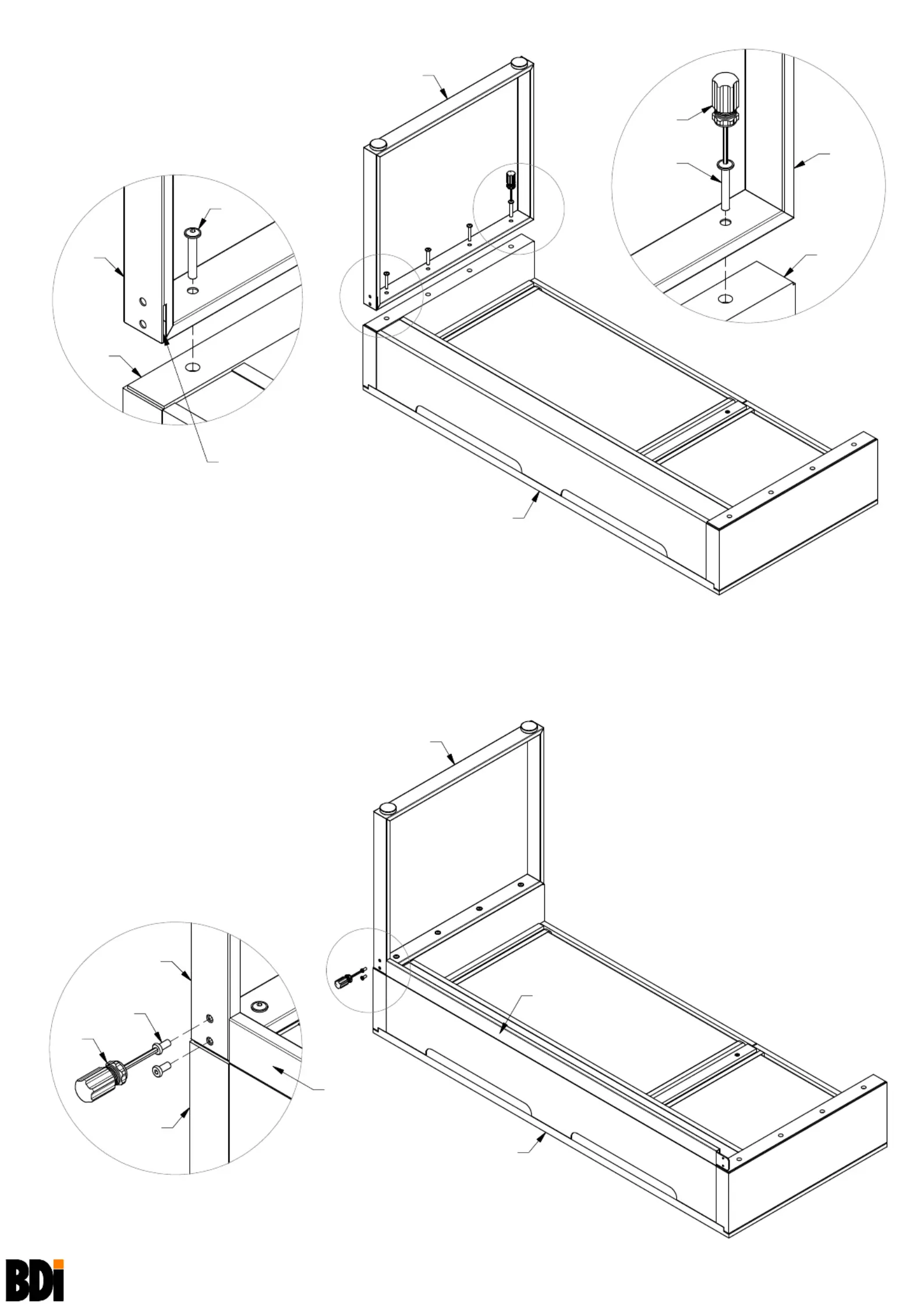

Step 1

Attach 1st Leg to Table Assembly

Identify Left and Right Legs. Notch on

Leg towards inside and back of desk.

Attach Leg using

Screws (B) and

tighten with

Hex Driver (A).

Step 2

Attach Horizontal Bar

Insert tab on Horizontal Bar (G) into

notch on inside of Leg. Attach 1 side of

Horizontal Bar (G) using Screws (C)

tighten with

Hex Driver (A).

Identify Left and Right Legs.

Notch on Leg towards inside

and back of desk.

CASCADIA

6201 6202

ASSEMBLY INSTRUCTIONS

BDIUSA.COM CUSTOMERSERVICE@BDIUSA.COM

Step 3

Attach 2nd Leg and Horizontal Bar

Insert tab on Horizontal Bar (G) into

notch on 2nd Leg. Attach Leg to

Table Assembly (D) using Screws (B)

and tighten with Hex Driver (A).

Attach

Horizontal Bar (G) to 2nd Leg

using

Screws (C) and tighten with

Hex Driver (A).

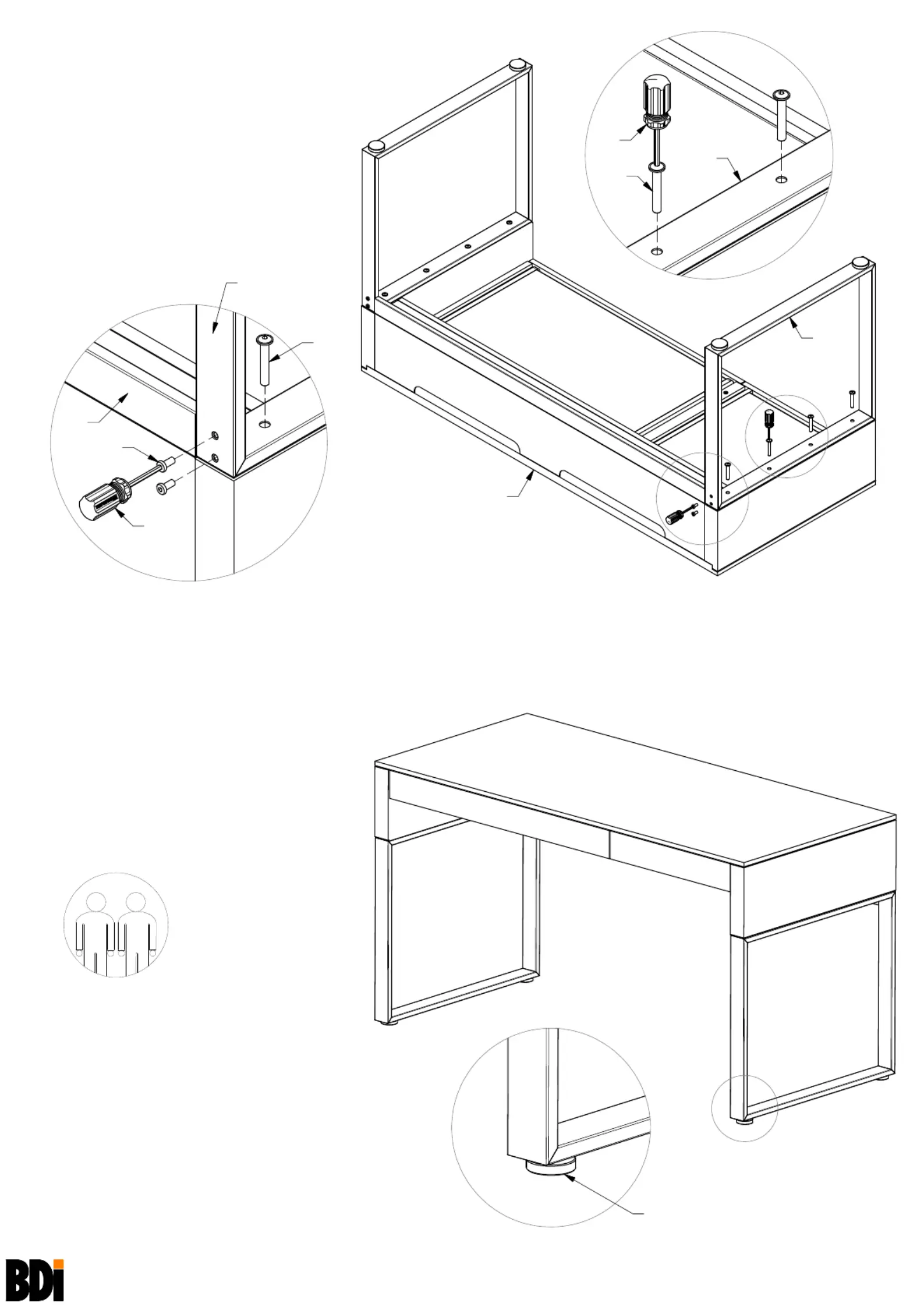

Step 4

Adjust Levelers as necessary

Turn Desk or Console over onto Legs.

Position Desk or Console as desired

then turn black puck levelers by hand

to adjust as necessary.

Turn black puck leveler by hand

to adjust as necessary.

Recommended

2-person Step

Produktspecifikationer

Varumärke:	BDI
Kategori:	Skrivbord
Modell:	Cascadia
Vikt:	49895 g
Bredd:	1380 mm
Djup:	610 mm
Höjd:	750 mm
Förpackningens bredd:	711 mm
Modell:	Rak
Låddjup:	1473.2 mm
Vikt inkl. förpackning:	57153 g
Styrhjul:	Nej
Benens färg:	Metallisk
