B1 - Hex Wrench
x 1
B2 - Hex Wrench
x 1
CORRIDOR
8179
Corridor is engineered for easy assembly. Carefully follow this
procedure to prevent any damage.
Placement and Maintenance
Corridor is designed for indoor use on level floors. Clean wood
veneer with a moist cloth. Clean glass with glass cleaner.
Step 1
Unpack and Identify
Unpack and identify the components at left. Note that some
components are shipped inside the cabinet. The assembly
workspace should be a non-marring surface such as carpet. For
missing hardware pieces, please contact BDI Customer Service
at customerservice@bdiusa.com. For all other concerns, please
contact your BDI Retailer.
For your convenience, assembly with or without wheels.
Component List
Designed by Matthew Weatherly.
;OLZLKPZ[PUJ[P]LWYVK\J[JVUÄN\YH[PVUZHYLWYV[LJ[LKI`<:HUK
international patents, trade dress, and/or copyright laws.
BDI are trademarks of Becker Designed, Inc.
All Rights reserved. ©2012, BDI
Made in China. 1010312v18179REV
A S S E M B L Y I N S T R U C T I O N S
BDIUSA COM CUSTOMERSERVICE BDIUSA COM. @ .
C - Cabinet
x 1
G - 1/4-20 x 37 mm
Machine Screw
x 6
H - M4 x 35 mm
Machine Screw
x 8
F - Metal Rail
x 2
E - Metal Leg
x 2
E1 - Wheel Assembly
x 4
E2 - Leveler
x 4
D - 1/4-20 x 10 mm
Machine Screw
x 16
I - Pull
x 4
A - Phillips Screwdriver
x 1
M - Back Panel
x 2
L - Adjustable Shelf
x 2
K - Glass Top
x 1
J - Rubber Bumper
x 6
Installations with wheels:
Attach Wheel Assembly
(E1) to Metal Leg (E) using
Leveler (E2) and Screw (D).
*Note: Orient Wheel
Assembly (E1) with larger
hole towards outside.
Installations without wheels:
Install toLeveler (E2) Metal
Leg (E).
D
E2
E1
E2
E
E
2
ASSEMBLY INSTRUCTIONS
BDIUSA COM CUSTOMERSERVICE. @BDIUSA COM.
CORRIDOR
8179
Step 2
Build Base Assembly
Slide intoMetal Leg (E) Metal Rail (F) and attach by using Hex
Wrench (B) Screw (D)and .
Step 3
Carefully lay on its back. Using Cabinet (C) Hex Wrench (B),
attach the base assembly to the bottom of the Cabinet (C)
with
Screw (D) Screw (G)and
. *Note: Each of the metal legs has
levelers that can be adjusted from inside the cabinet using the
Hex Drivers (B).
G x 6
D x 8
D D
D D
E
E
F F
¨
¨
¨
¨
3
ASSEMBLY INSTRUCTIONS
BDIUSA COM CUSTOMERSERVICE. @BDIUSA COM.
CORRIDOR
8179

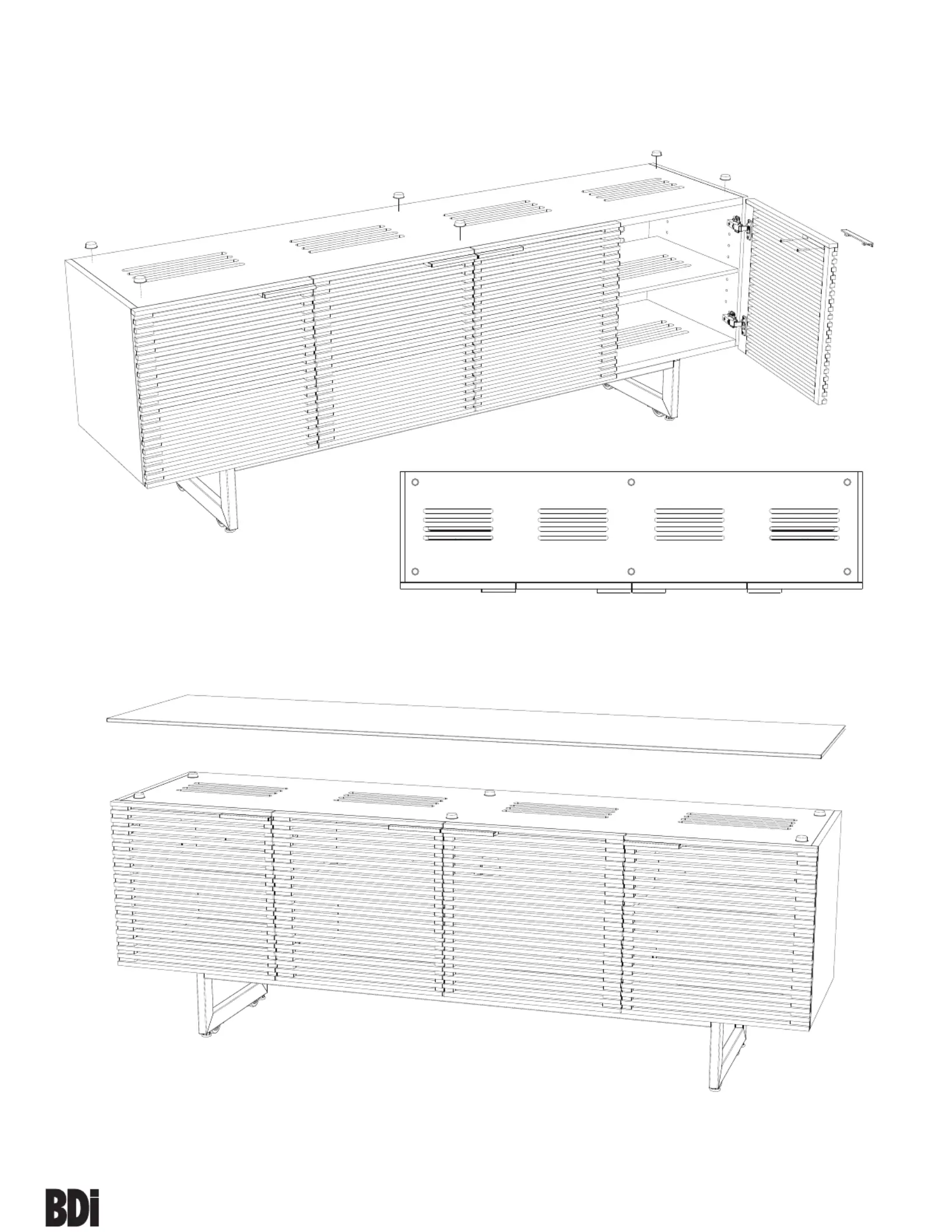

Step 4
Install Pulls and Rubber Bumpers
Position the cabinet upright and install door using Pulls (I) Screw (H) and
Screwdriver (A). Install Rubber Bumper (J) at least an inch from edges of
the cabinet.
Step 5
Install Glass
Place Glass Top (K) Cabinet (C). on top of Flush glass with cabinet front
doors.
K
H
H
J
J
J
J
J
J
I
