E - 1/4-20 x 63mm
Machine Screw x 5
B - 1/4-20 x 1/2"
Flat Head
Machine Screw x 8
F - Adhesive Magnet x 4
C - Leveler Glide x 4
A - 4mm Hex Wrench
D - 1/4-20 x 1/2"
Machine Screw x 12
SEQUEL
Designed by Matthew Weatherly
These distinctive product configurations are protected by US and international
patents, trade dress, and/or copyright laws.
BDI and 'Sequel' are trademarks of Becker Designed, Inc.
All Rights reserved. © 2010 BDI
Made in Taiwan. 6003 Compact Desk Revision: 021210

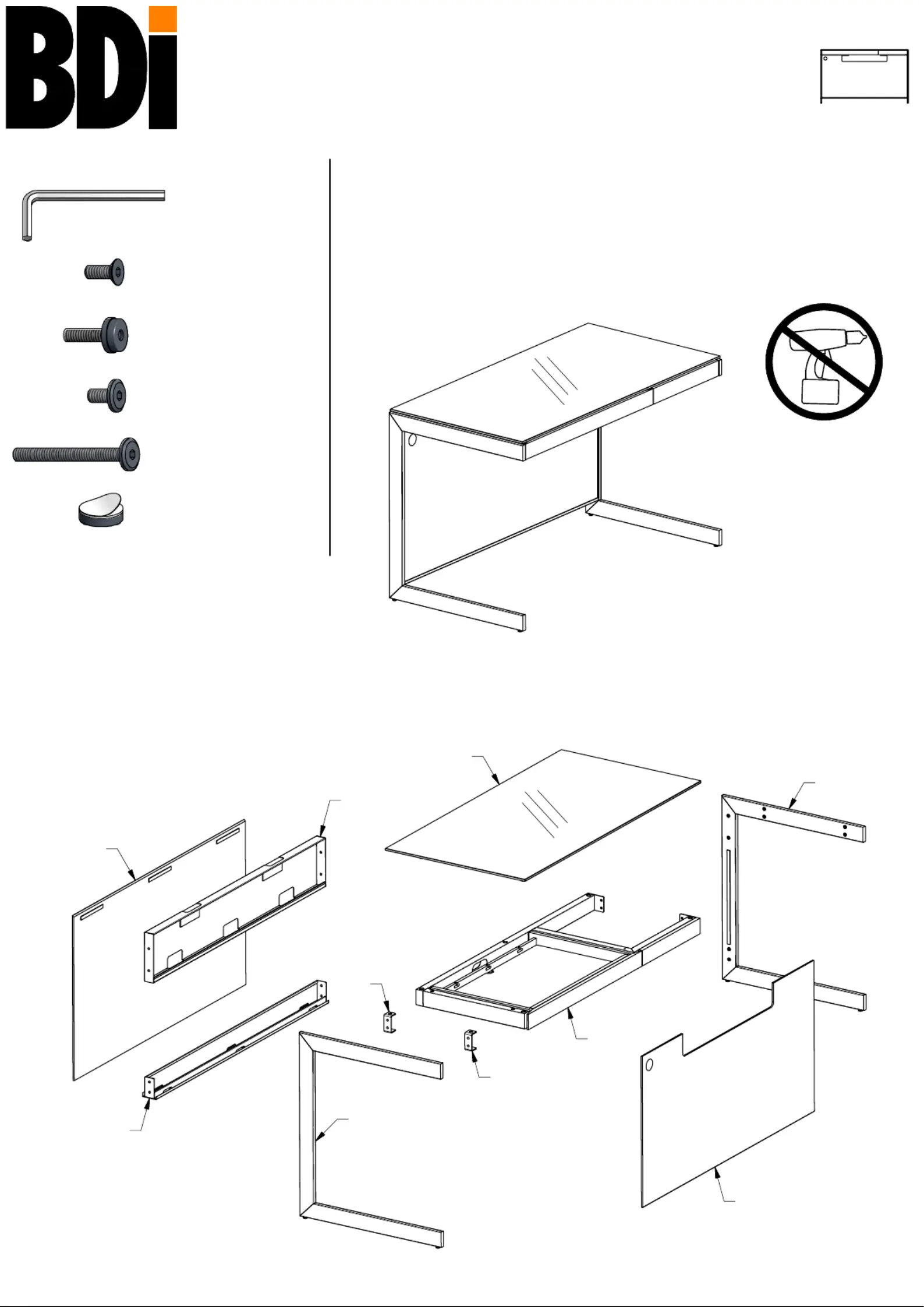

Component List
6003 Compact Desk
ASSEMBLY INSTRUCTIONS
1
BDIUSA.COM CUSTOMERSERVICE@BDIUSA.COM
Sequel™ is engineered for easy assembly. Carefully follow this procedure to
prevent any damage.
Placement and Maintenance
Sequel™ Home Office Furniture is designed for indoor use on level floors. Clean
glass with glass cleaner, and steel parts and wood veneer with a moist cloth.
CAUTION: Do not use power tools for assembly of this product.
K
L
G
M
J
N
H
O
I
G -
Leg Brackets x 2
H - Left Leg x 1
I - Right Leg x 1
J - Drawer Assembly x 1
K - Upper Horizontal Beam x 1
L - Lower Horizontal Beam x 1
M - Glass Top x 1
N - Front Kick Panel x 1
G
O -
Back Panel x 1
(Sequel 6008 sold seperately)
™
SEQUEL
6003 Compact Desk
ASSEMBLY INSTRUCTIONS
2
BDIUSA.COM CUSTOMERSERVICE@BDIUSA.COM
Step 3
Install Leveler Glides
Install Leveler Glides (C) into the bottom
of
Left Leg (H) and Right Leg (I).

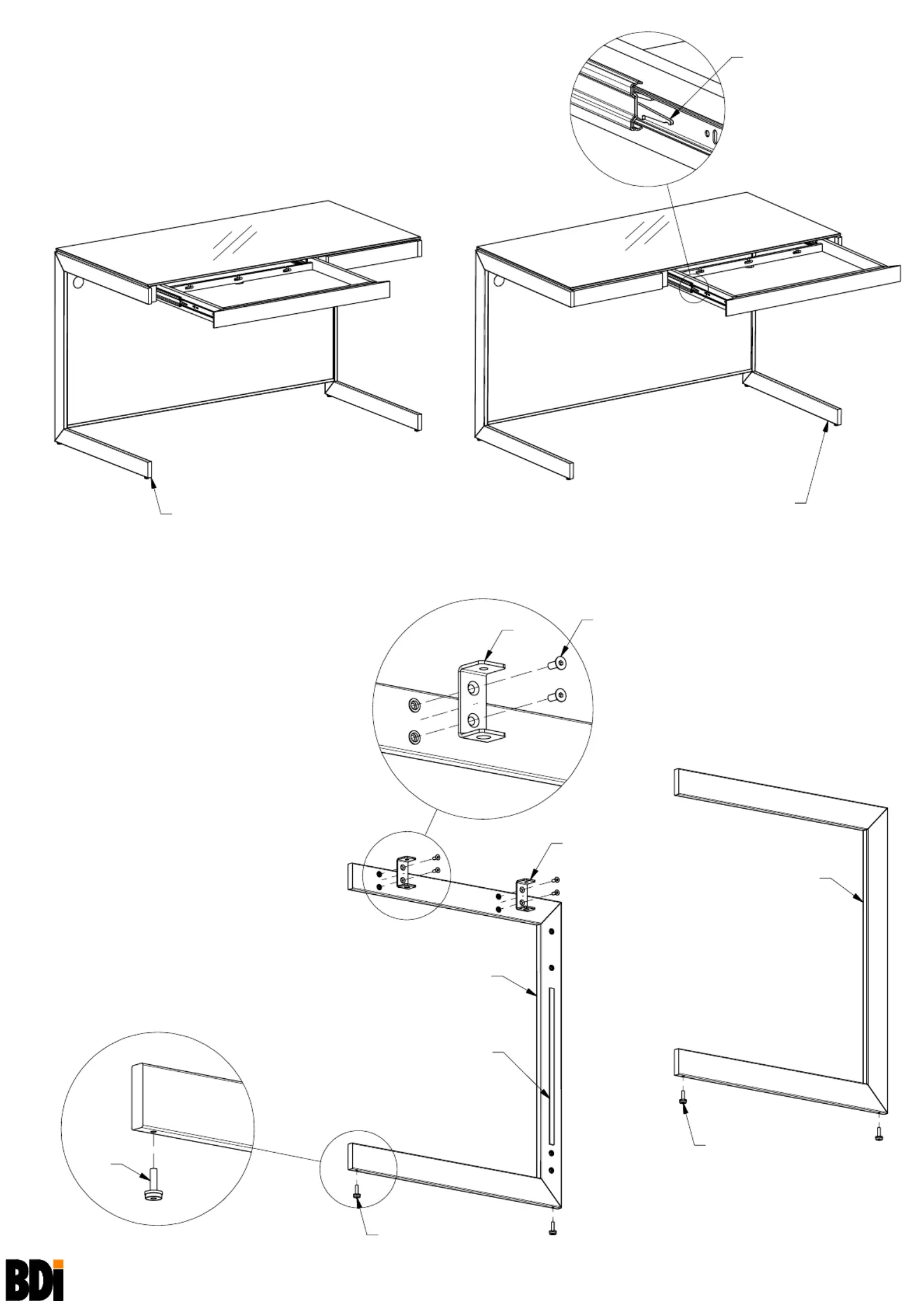

Step 2
Attach Leg Brackets to Leg
Identify Left and Right Legs. Attach Leg
Brackets (G)
to Left or Right Legs
depending on Drawer Position. Attach
Leg Brackets (G) using Screws (B) and
tighten with
Hex Wrench (A).
Step 1
Choose Drawer Position - Left or Right
Sequel 6003 Compact Desk
features a Left or Right Drawer position.
For Left Drawer Position, install
Leg Brackets (G) onto Left Leg (H).
For Right Drawer Position, install
Leg Brackets (G) onto Right Leg (H).
Left Leg (K)
Right Leg (I)
Left Drawer Position
Install
Leg Brackets (G) onto Left Leg (H)
Right Drawer Position
Install
Leg Brackets (G) onto Right Leg (I)
Foam Strip Faces Inside
Leg Bracket (G)
Leveler Glide (C)
G
B
C
Leveler Glide (C)
To Remove Drawer
Open Drawer fully and
press levers, 1 up and
1 down, on both sides
of Drawer, and pull
Drawer out.
SEQUEL
6003 Compact Desk
ASSEMBLY INSTRUCTIONS
3 BDIUSA.COM CUSTOMERSERVICE@BDIUSA.COM

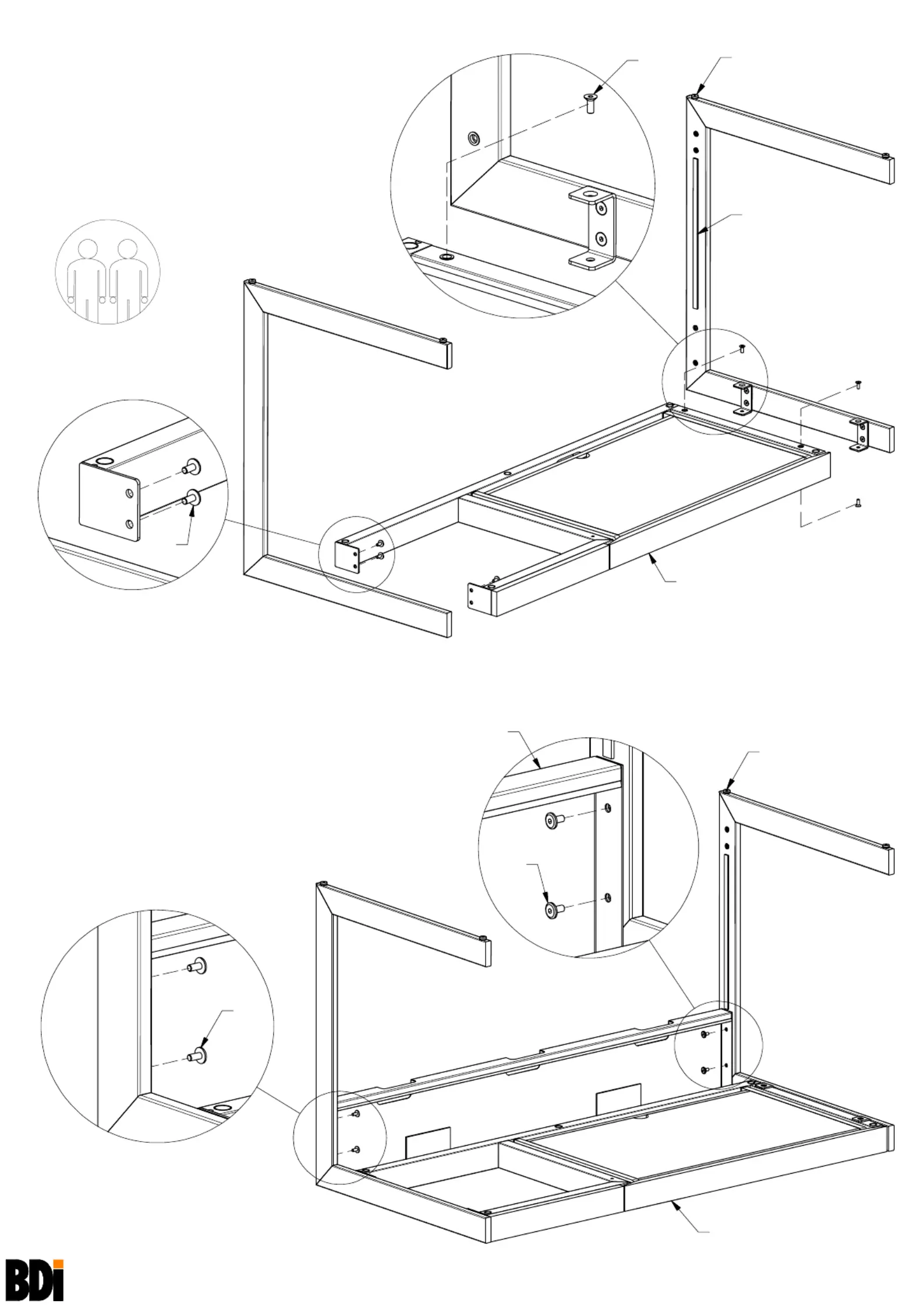

Step 5
Attach Upper Horizontal Beam
Attach Upper Horizontal Beam (K) to inside
of Left and Right Legs using
Screws (D) and
tighten with
Hex Wrench (A). Make certain
3 slots in
Upper Horizontal Beam (K) face
toward
Leveler Glides (C).
Recommended
2-person Step
Step 4
Attach Legs
With Drawer Assembly (J) upside down,
Attach Leg with
Leg Brackets (G) to Drawer
Assembly (J)
using Screws (B) and tighten
with
Hex Wrench (A).
Attach Leg without Leg Brackets to
Drawer
Assembly (J)
using Screws (D) and tighten
with
Hex Wrench (A).
B
D
Drawer Assembly (J)
Upside Down with
Drawer Bottom Facing Up
If necessary, remove Drawer
and flip over for correct position
See detail in
Step 1 for Drawer
removal.
Foam Strips
Face Inside
Leveler Glides (C)
D
D
Drawer Assembly (J)
Upper Horizontal Beam (K)
Leveler Glides (C)
