Designed by BDI Studio
These distinctive product configurations are protected by US and international patents, trade dress, and/or
copyright laws. Stance & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2019, BDI
Made in Turkey & China. 12.03.2019 V4
C8 Wire Tray Panel x 1
C9 Wire Tray Shelf x 1
C6 Power Cord x 1
C1 Control Module x 1
C2 Keypad x 1
A1 Main Panel x 1
C7 Cord Conduit x 1
C5 Foot x 2
bdiusa.com
customerservice@bdiusa.com
STANCE
®
6650/6651/6652
LIFT DESK
Tool Required:
Phillips Screwdriver
H3 M6 x 12mm Screw x 10
Product Registration
Registering your new BDI product allows us to send you important
product updates, service information and helpful hints related to your BDI
products. Register today, and you will be entered to win free a BINK table
from BDI: www.bdiusa.com/register
Placement and Maintenance
Stance
®
Lift Desk is designed for indoor use on level floors. Clean glass
with glass cleaner, and steel parts and wood veneer with a damp cloth.
Your Stance
®
Lift Desk is engineered for easy assembly. Carefully
follow this procedure to prevent any damage. Do not use power tools
for assembly of this product.
Step 1

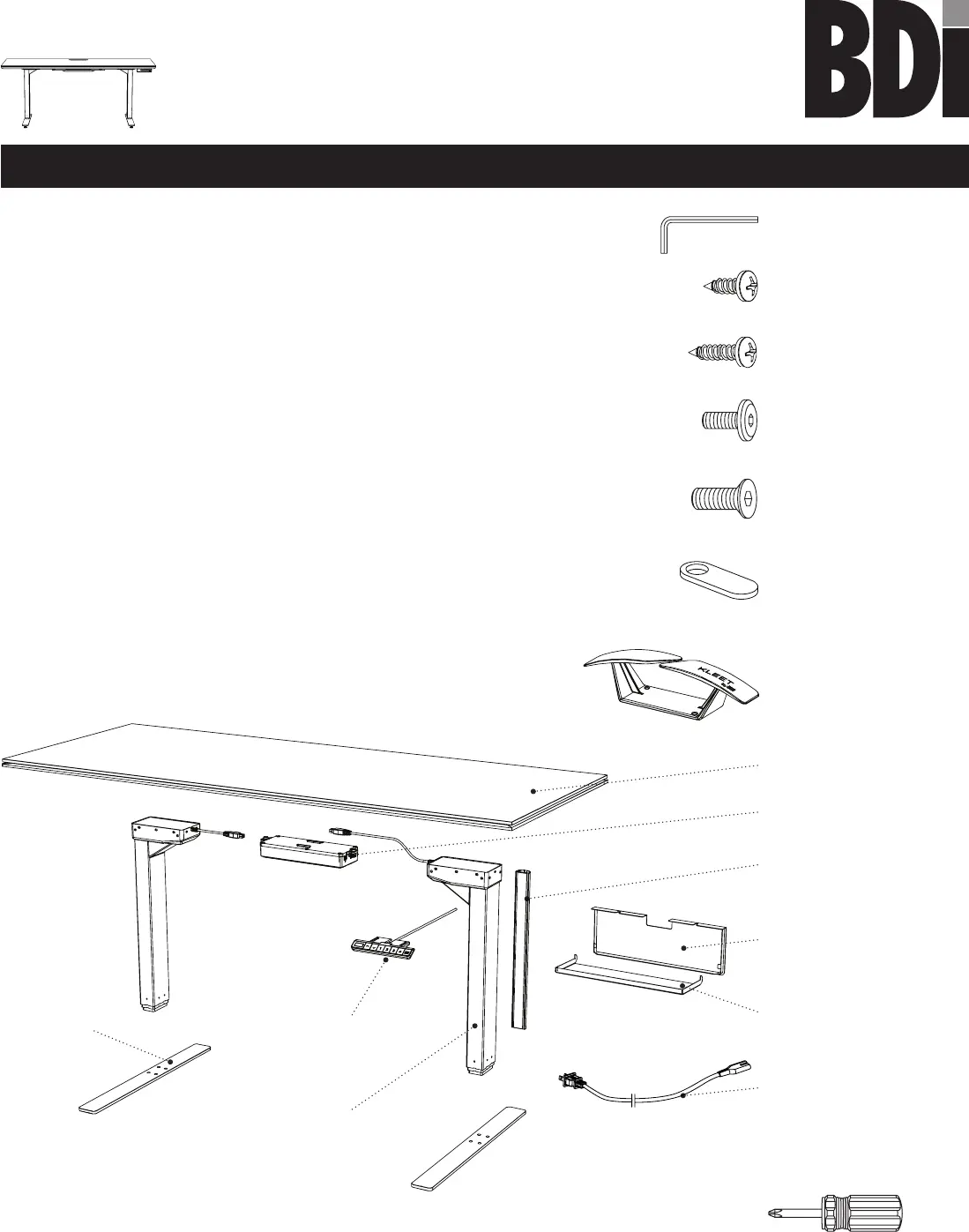

Unpack and identify the parts listed below. The assembly workspace
should be a non-marring surface such as carpet. For missing hardware
pieces, please contact BDI Customer Service at customerservice@bdiusa.
com. For all other concerns, please contact your BDI retailer.
H8 Cord Wrap x 2
H6 Wire Clip x 6
H1 Wood Screw x 12
H2 Long Wood Screw x 2
T1 4mm Hex Wrench
H4 M6 x 16mm Flathead
Screw x 8
C3 Leg x 2
OWNER’S MANUAL
bdiusa.com
customerservice@bdiusa.com
STANCE 6650/6651/6652
LIFT DESK
2

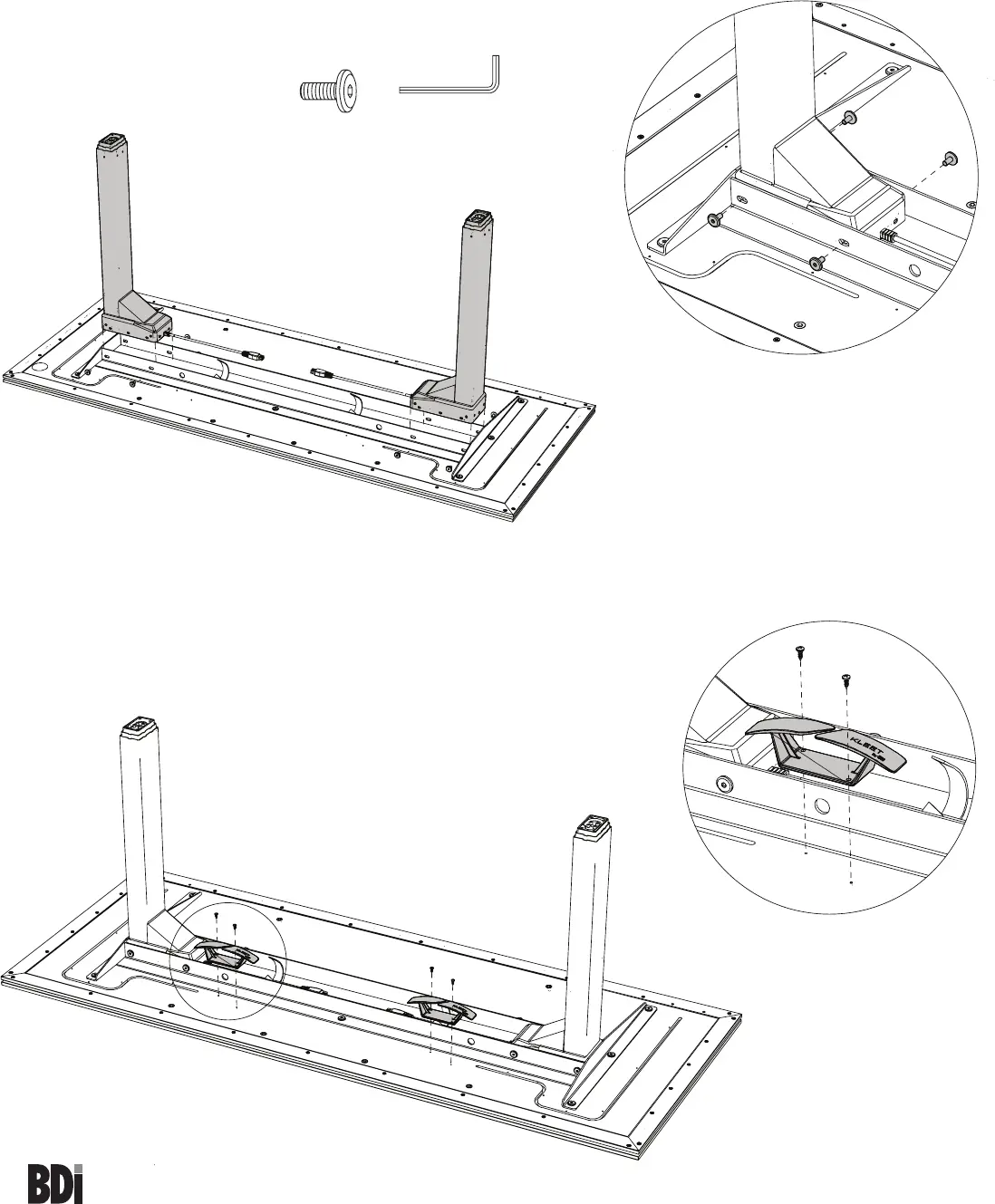

Step 2 - Lay main panel upside down on a soft surface (like carpet). Position 2 legs C3 into the corners inside
the metal frame with cords facing inward. Attach the 2 legs to the metal frame using screws H3 and tighten
with hex wrench T1. Start all screws before tightening the screws.
Step 3 - Attach 2 cord wraps H8 using wood screws H1 going into the 2 sets of pilot holes located as
shown. Tighten with a Phillips screwdriver.
H3
H1
C3
H3
H3
H3
C3
H2 x 8
T1
H1
H8
H8
H8
bdiusa.com
customerservice@bdiusa.com
STANCE 6650/6651/6652
LIFT DESK
3

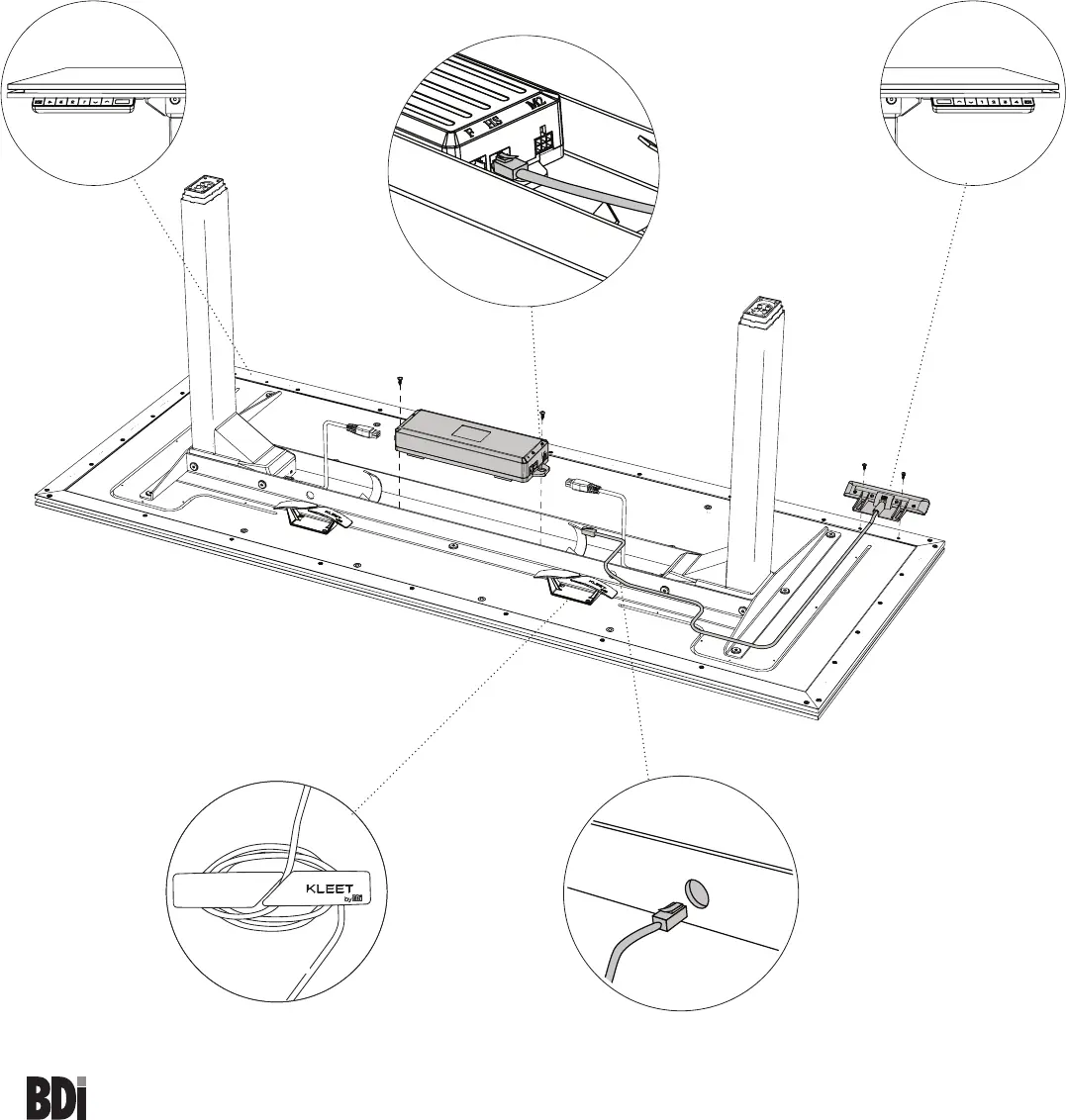

Step 4 - Attach Keypad C2 on the desired side (left or right) with 2 wood screws H1 going into pre-drilled
pilot holes. Tighten with a Phillips screwdriver.
Step 5 - Position the control module C1 so that the keypad socket (labeled HS) is facing the keypad and
secure between the 2 steel rails with 2 long wood screws H2 as shown going into the pre-drilled pilot holes.
Tighten with a Phillips screwdriver.
Step 6 - Route the keypad cord into the groove in the panel and through the hole in the metal frame. Plug the
end of the keypad cord into the HS socket on the control module C1. Use the cord wrap (Kleet) H8 to
secure loose cords.
Cord Wrap
User’s right
hand side
User’s left
hand side
H1
H1
H2
H2
C1
C2
Hole in
metal frame
