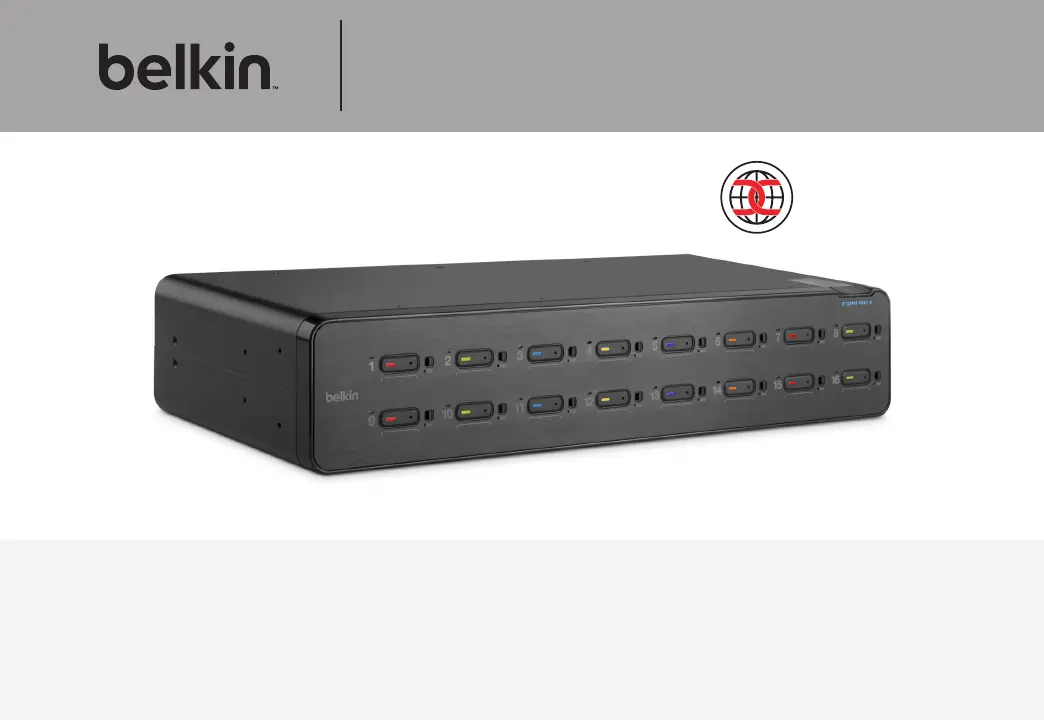

Advanced Secure 8- and 16-Port DVI-I

KVM Switches

User Manual

F1DN108C-3 – Belkin Advanced Secure DVI-I KVM Switch; 8-Port Plus

F1DN108F-3 – Belkin Advanced Secure Dual-Head DVI-I KVM Switch; 8-Port Plus

F1DN116C-3 – Belkin Advanced Secure DVI-I KVM Switch; 16-Port Plus

Document Number 8820-02505 (A00)

This Belkin product is compliant

with latest NIAP Protection Proﬁle

PSS Ver. 3.0, which exceeds EAL4

and PP PSS Ver. 2.1.

Belkin

Advanced Secure 8-Port and 16-Port DVI-I KVM Switches User Manual

TABLE OF CONTENTS

SECTIONS

1 2 3 4 5 6 87

Table of Contents

Introduction ..............................................1

Package Contents.........................................1

Safety Precautions ........................................2

User Guidance & Precautions ...............................3

Overview.................................................5

Security Features .........................................5

Tamper Evident Labels .....................................6

Other Features ...........................................7

Equipment Requirements ...................................8

System Requirements......................................9

Unit Display Diagrams ....................................10

Unit Display Diagram, Front View............................10

Specifications ...........................................12

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Pre-Configuration ........................................13

Connection and Installation ................................13

Operating the KVM Switch ................................16

Common Access Card (CAC) Configuration and Installation ...17

Frequently Asked Questions...............................18

Troubleshooting .........................................19

Information..............................................21

Belkin

Advanced Secure 8-Port and 16-Port DVI-I KVM Switches User Manual

INTRODUCTION

SECTIONS

Table of Contents

2 3 4 5 6 871

Thank you for purchasing this Belkin Advanced Secure DVI-I KVM

Switch. This rack-mountable Switch is designed for use in secure

environment installations. The Switch offers safe centralized control,

which prevents unintended data transfer between computers running

at different security levels. The Switch provides the highest security

safeguards and features that meet today’s Information Assurance (IA)

computing requirements.

This User Manual provides all the details you’ll need to install and

operate your new Switch, in addition to expert troubleshooting advice—

in the unlikely event of a problem.

Important: This Switch is equipped with active anti-tamper triggers.

Any attempt to open the enclosure will activate the anti-tamper

triggers and render the unit inoperable. If the unit’s enclosure

appears disrupted or if all the port LEDs flash continuously, please

call Belkin Technical Support at (800) 282-2355.

Important Security Note: If you are aware of potential security

vulnerability while installing or operating this product, we encourage

you to contact us immediately at the following email address:

gov_security@belkin.com

Package Contents

• Belkin Advanced Secure DVI-I KVM Switch

• AC Power Cord

• Interchangeable Port Color Chips

• Port-Naming Labels

• 2U Rack-mount Brackets and Screws (F1DN108F-3/F1DN116C-3)

• User Manual

Please note: Belkin Secure KVMs cannot be upgraded, serviced or

fixed.
