INSTALLATION, MAINTENANCE AND USE

INSTRUCTIONS FOR

FREE-STANDING COOKERS

90x60 cm (W90IND MFE)Dual oven

READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING

THE APPLIANCE.

The manufacturer will not be responsible for any damage to property or to persons

caused by incorrect installation or improper use of the appliance.

The manufacturer is not responsible for any inaccuracies, due to printing or transcription

errors, contained in this booklet. In addition, the appearance of the figures reported is also

purely indicative.

The manufacturer reserves the right to make changes to its products when considered

necessary and useful, without affecting the essential safety and operating characteristics.

CONTENTS:

INSTALLER TECHNICAL MANUAL ............................................................................................................... pg. 2

Installing the cooker - Installation information ................................................................................................. pg. 2

Height adjustable legs .................................................................................................................................... pg. 3

Backguard installation instruction ................................................................................................................... pg. 3

Electric connection .......................................................................................................................................... pg. 3

APPLIANCE MAINTENANCE - Replacing parts ............................................................................................. pg. 4

USE AND MAINTENANCE MANUAL ............................................................................................................. pg. 4

Description of control panel and control types ................................................................................................. pg. 5

Using the induction hob ………………………………………………………………………………………………...pg. 5

Hob control knob ………………………………………………………………………………………………………. pg. 5

Type of pan ………………………………………………………………………………………………………. pg. 6

Using the electric thermostat ........................................................................................................................... pg. 7

Using the thermostat with switch in series....................................................................................................... pg. 7

Using the 9+0 switch ....................................................................................................................................... pg. 8

Using the natural conventional electric oven .................................................................................................. pg. 8

Using the ventilated electric oven .................................................................................................................... pg. 9

Positioning the oven trays & shelves ............................................................................................................... pg. 10

Using the electric grill - ventilated electric grill ................................................................................................. pg. 10

Using the self cleaning oven .......................................................................................................................... pg. 10

Cleaning the appliance .................................................................................................................................... pg. 10

After-sales technical service and spare parts .................................................................................................. pg. 11

THIS APPLIANCE HAS BEEN DESIGNED FOR NON-PROFESSIONAL DOMESTIC USE.

INSTALLER TECHNICAL MANUAL

By ensuring this product is disposed of correctly, you will help prevent potential

negative consequences for the environment and human health, which could otherwise

be caused by inappropriate waste handling of this product.

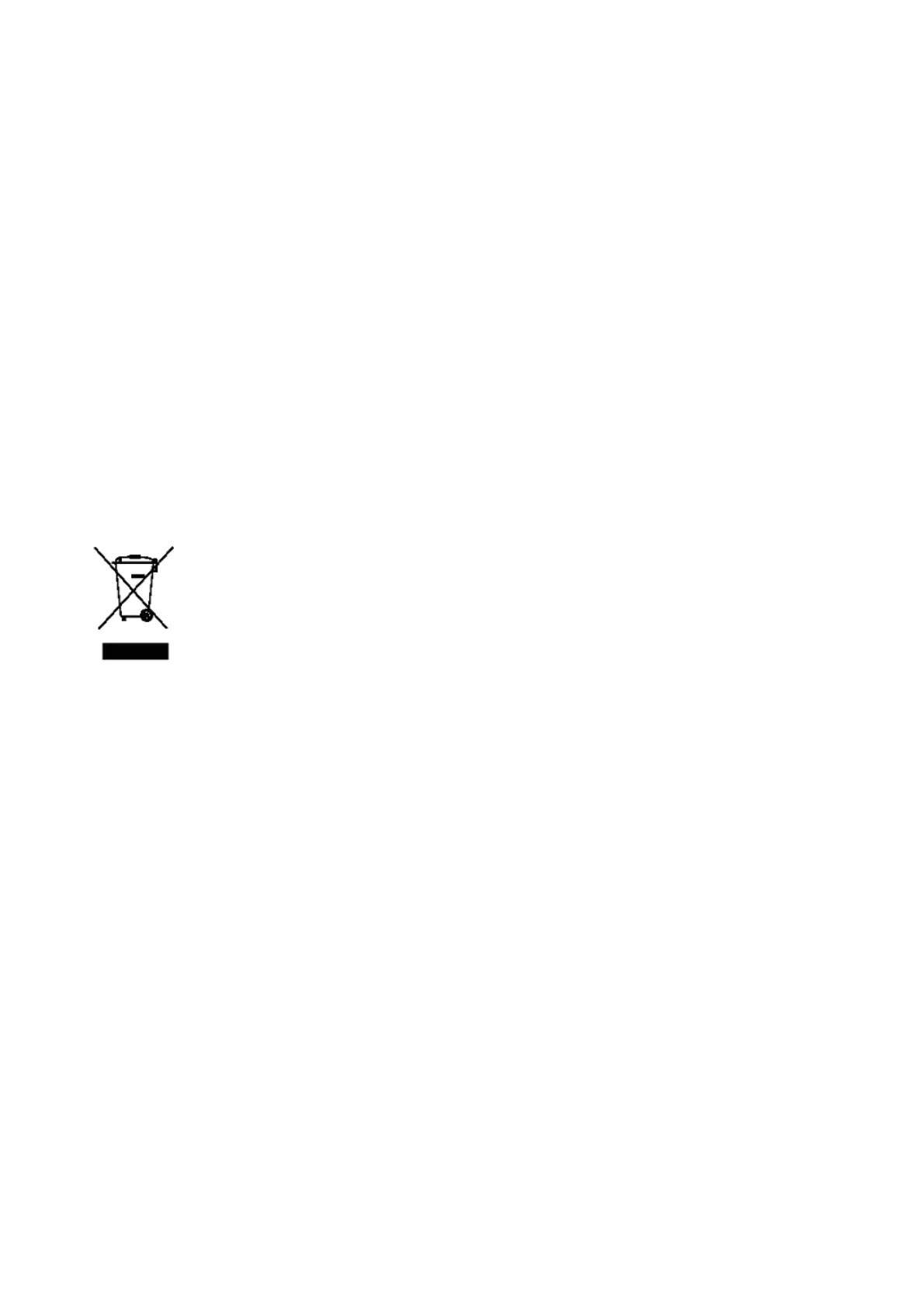

The symbol on the product indicates that this product may not be treated as

household waste. Instead it shall be handed over to the applicable collection point for

the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please

contact your local city council office.

INSTALLER INFORMATION

The installation, all adjustments, transformations and maintenance listed in this part of the manual must be

carried out only by skilled personnel.

Improper installation may cause damage to persons, animals or property, for which the manufacture will not be

held responsible.

The appliance safety or automatic adjustment devices may be changed during the service life of the system only

by the manufacturer or by the duly authorised supplier.

INSTALLING THE COOKER

After having removed the various loose parts from the internal and external packing, make sure that the cooker is not

damaged. In case of doubt, do not use the appliance and contact skilled personnel.

Keep all the dangerous packing parts (polystyrene foam, bags, cardboard, staples, etc.) away from children.

The appliance can be installed as a freestanding unit, next to a wall or inserted between two walls (Fig.1). A single

sidewall that exceeds the height of the work surface is possible. This must be at a minimum distance of 70 mm from the

edge of the cooker (Fig. 1)

Any walls of the adjacent furniture pieces and the wall behind the cooker must be made with heat-resistant material that

can withstand a minimum overtemperature of 65 K.

WARNING: the connection to the gas network must only use metal flexible pipes that conform with the national

standards in force.

IMPORTANT INFORMATION FOR INSTALLING THE APPLIANCE

The cooker can be installed separately, as a freestanding unit, on a plinth, or between kitchen units or between a

kitchen unit and the wall.

If installing the appliance as a freestanding cooker, screw the height adjustable telescopic legs supplied to the

base of the appliance. If installing the appliance on a plinth, screw the levelling feet supplied to the base of the

appliance.

This appliance is not connected to devices which exhaust combustion products.

Produktspecifikationer

Varumärke:	Bertazzoni
Kategori:	Spis
Modell:	W90 IND MFE CR
Produkttyp:	Fristående köksspis
Inbyggd display:	Nej
Bredd:	895 mm
Djup:	600 mm
Höjd:	885 mm
Grill:	Ja
Konvektionsmatlagning:	Ja
Ugnens strömkälla:	Elektrisk
Antal ugnar:	2
Antal automatiska program:	9
Justerbara fötter:	Ja
Förvaringsfack:	Ja
Produktens färg:	Gräddfärgad
Kontrolltyp:	Rotations-
Ugnens bruttokapacitet:	59 l
Ugnens nettokapacitet:	59 l
AC-inspänning:	220 - 240 V
Växelström Frekvens:	50 - 60 hz
Ström:	62.2 A
Typ av spishäll:	Induktionshäll med zon
Antal brännare / zoner matlagning:	5
Antalet elektriska kokzoner:	5
Diameter på platta/tillagningsyta 4:	210 mm
Diameter på platta/tillagningsyta 2:	145 mm
Diameter på platta/tillagningsyta 3:	180 mm
Manöverplats:	Framsida
Maximal kabelförlust med anslutning:	Ja
Effekt på platta/tillagningsyta 2:	1800 W
Effekt på platta/tillagningsyta 3:	2500 W
Effekt på platta/tillagningsyta 4:	3200 W
Totalt ugn (er) invändig kapacitet:	97 l
Totalt ugn:	- W
Ugnström:	- W
Normalkokning:	Ja
Anslutningseffekt (elektrisk):	14300 W
Höjdjustering:	60 mm
Antal glaspaneler dörr:	3
Ugn 2, bruttokapacitet:	38 l
Redskap detektion:	Ja
