PART# BBE-2001 R
Hlend
fflounf-
®
ESCORT.
L1RONICS'
Innovative
Mounting
Solutions
JII
~~
I
~l!ll~
l
lJnl
111
"

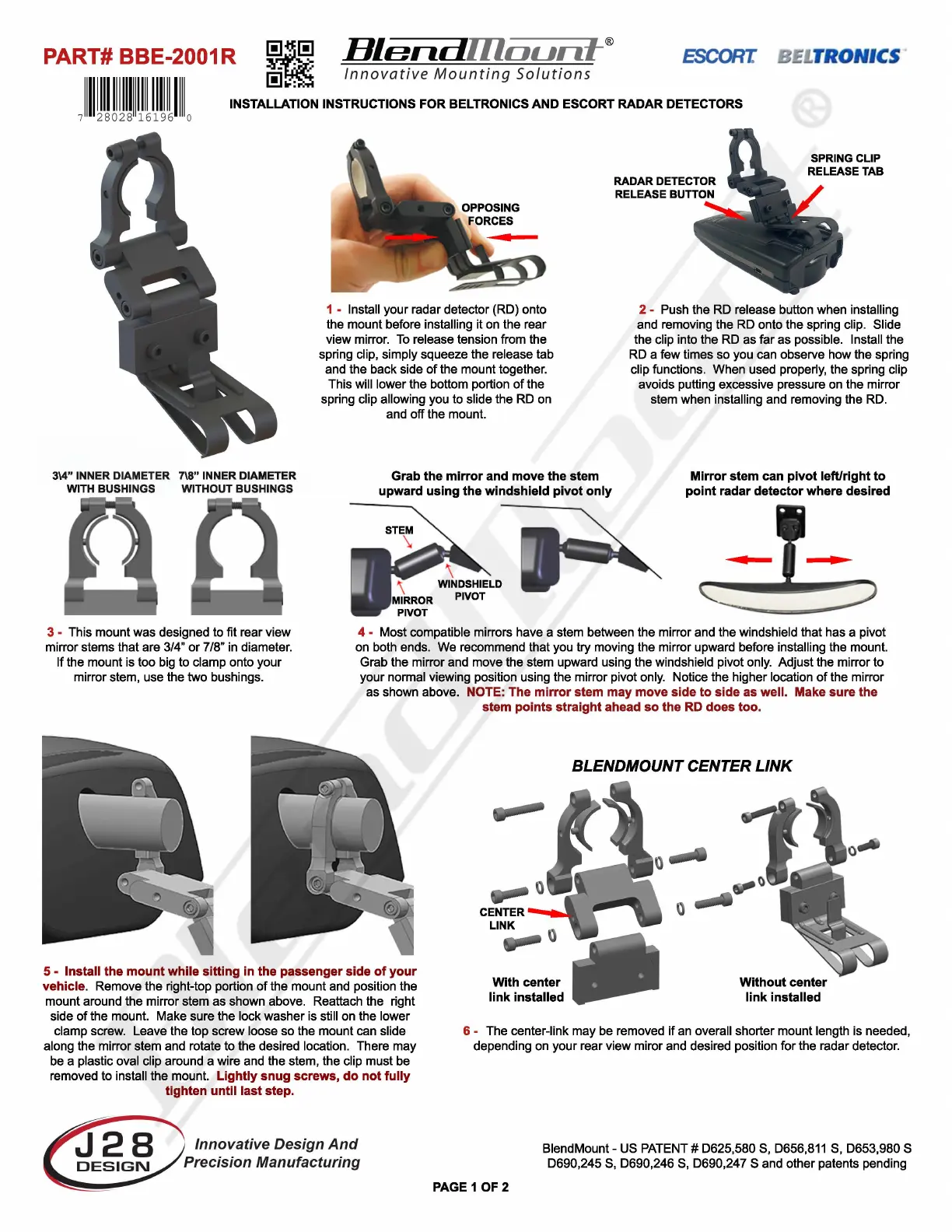

INSTALLATION INSTRUCTIONS
FOR
BELTRONICS
AND
ESCORT
RADAR DETECTORS
3\4" INNER DIAMETER 7\8" INNER DIAMETER
WITH BUSHINGS WITHOUT BUSHINGS
1 - Install your radar detector (RD) onto
the mount before installing it on the rear
view mirror.
To
release tension from the
spring clip, simply squeeze the release tab
and the back side
of
the mount together.
This will lower the bottom portion
of
the
spring clip allowing you to slide the RD on
and off the mount.
Grab
the
mirror and move the stem
upward using
the
windshield pivot only
2 - Push the RD release button when installing
and removing the RD onto the spring clip. Slide
the clip into the RD as far as possible. Install the
RD a few times so you can observe how the spring
clip functions. When used properly, the spring clip
avoids putting excessive pressure on the mirror
stem when installing and removing the RD.
Mirror stem can pivot left/right
to
point radar detector where desired
3 - This mount was designed to fit rear view
mirror stems that are 3/4"
or
7/8"
in
diameter.
4 - Most compatible mirrors have a stem between the mirror and the windshield that has a pivot
on both ends. We recommend that you try moving the mirror upward before installing the mount.
If the mount is too big to clamp onto your
mirror stem, use the two bushings.
Grab the mirror and move the stem upward using the windshield pivot only. Adjust the mirror to
your normal viewing position using the mirror pivot only. Notice the higher location
of
the mirror
as shown above. NOTE:
The
mirror stem
may
move side to side as well. Make sure the
stem points straight ahead
so
the RD does too.
5 - Install the mount while sitting in the passenger side
of
your
vehicle. Remove the right-top portion
of
the mount and position the
mount around the mirror stem as shown above. Reattach the right
side
of
the mount. Make sure the lock washer is still on the lower
clamp screw. Leave the top screw loose so the mount can slide
along the mirror stem and rotate to the desired location. There may
be a plastic oval clip around a
wire
and the stem, the clip must be
removed to install the mount. Lightly snug screws,
do
not fully
tighten until last step.
Innovative
Design
And
Precision
Manufacturing
With center
link installed
BLENDMOUNT CENTER
LINK
Without center
link installed
6 - The center-link may be removed if an overall shorter mount length is needed,
depending on your rear
view
miror and desired position for the radar detector.
PAGE 1 OF 2
BlendMount- US PATENT# D625,580 S, D656,811 S, D653,980 S
D690,245
S,
D690,246
S,
D690,247
Sand
other patents pending
