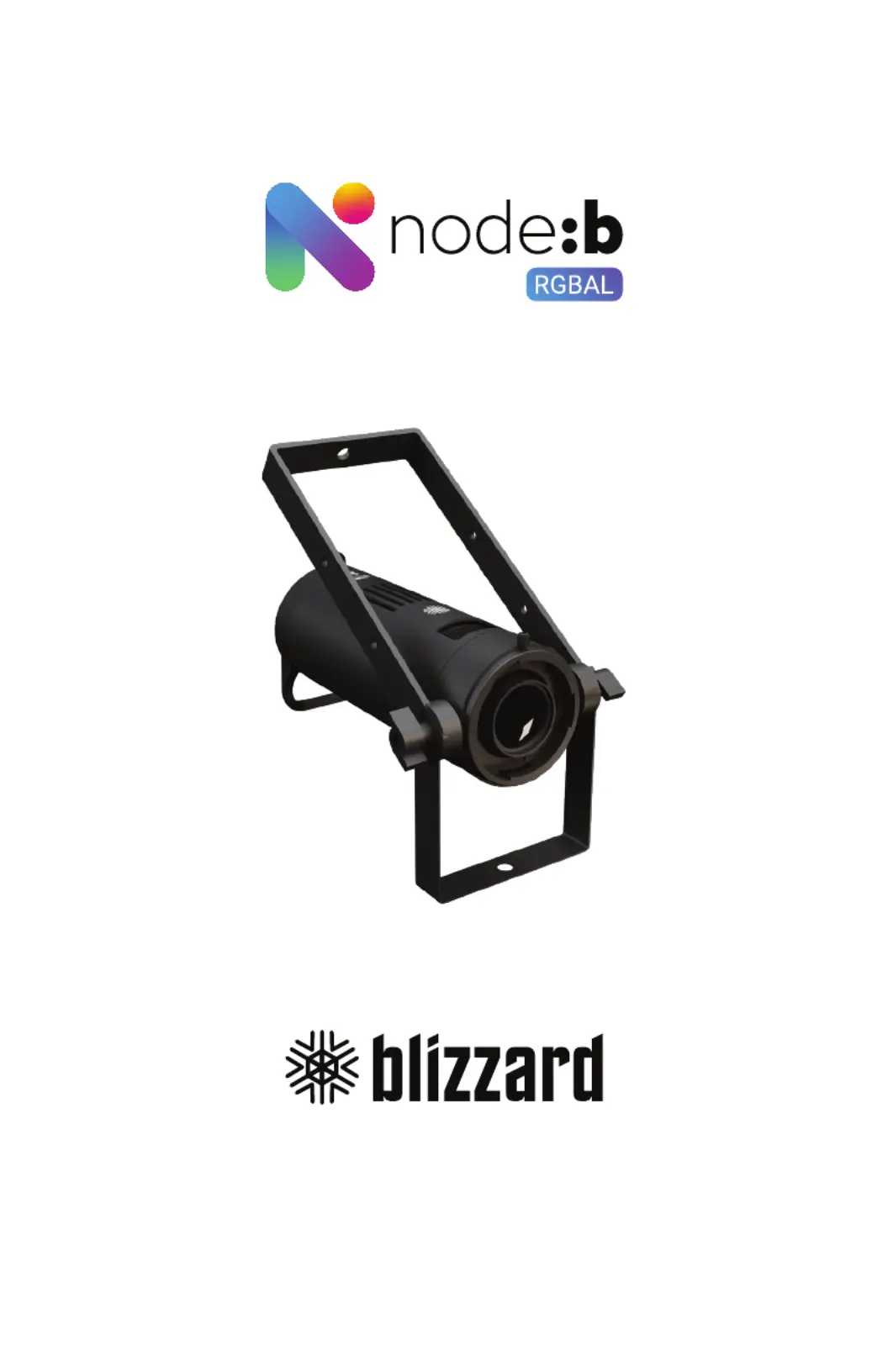

Sida 1/16

Blizzard Lighting, LLC

http://www.blizzardpro.com

Waukesha, WI USA

Page 2

TABLE OF CONTENTS

1. Getting Started 3

What’s In The Box? 3

Getting It Out Of the Box 3

Powering Up! 3

Getting A Hold Of Us 3

Safety Instructions 4

2. Meet the node:b RGBAL 5

Main Features 5

DMX Quick Reference 5

Node:b™ RGBAL Pin-Up Picture 6

The Rear Connections 6

3. Setup 7

Fuse Replacement 7

Connecting A Bunch of Node:b Fixtures 7

Data/DMX Cabling 7

Cable Connectors 8

Take It To The Next Level: Setting Up DMX Control 8

Installing a Lens Barrel 8

Insert the Gobo Holder (Prole Lens Barrels Only) 9

Mounting & Rigging 9

4. Operating Adjustments 10

The Control Panel 10

Control Panel Menu Structure 11

Static Mode 12

Dimming Curves 12

Dimming Speed 12

Dimming Frequency 13

DMX Fail 13

Fan Settings 13

System Reset 13

DMX Values In-Depth 13

5. Appendix 14

Keeping Your Node:b™ RGBAL As Good As New 14

Returns (Gasp!) 14

Shipping Issues 14

Tech Specs! 15

Dimensional Drawings 15

Page 3

1. GETTING STARTED

What’s In The Box?

• Node:b RGBAL Engine

• Mounting Brackets and Locking Knobs

• Lens Attachment Thumbscrew

• Gobo Holder

• This Lovely User Manual

Optional Accessories (sold separately)

The following accessories are available for this xture. But the lone wolves that

they are, they must be purchased separately. Contact your authorized Blizzard

Lighting dealer for pricing.

• Node:b-LENS-15-30: 15-30° Prole Zoom Lens

• Node:b-LENS-25-50: 25-50° Prole Zoom Lens

• Node:b-LENS-FRESNEL: 16-65° Fresnel Zoom Lens

Getting It Out Of the Box

Congratulations on purchasing the node:b RGBAL. Now that you’ve got your

xture, you should carefully unpack the box and check the contents to ensure

that all parts are present and in good condition. If anything looks as if it has

been damaged in transit, notify the shipper immediately and keep the packing

material for inspection. Again, please save the carton and all packing materials.

If a xture must be returned to the factory, it is important that the xture be

returned in the original factory box and packing.

Powering Up!

All xtures must be powered directly o a switched circuit and cannot be run

o a rheostat (variable resistor) or dimmer circuit, even if the rheostat

or dimmer channel is used solely for a 0% to 100% switch.

Warning! All xtures must be connected to circuits with a suitable

Ground (Earthing).

Getting A Hold Of Us

If something happens to go wrong, visit blizzardpro.com/support and

open a support ticket. We’ll be happy to help, honest.

Disclaimer: The information and specications contained in this document are subject to change without

notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may

appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or

to create a new document to correct any errors or omissions at any time. You can download the latest

version of this document from www.blizzardpro.com.

Author: Date: Last Edited: Date:

J. Thomas 1/4/2022 J. Thomas 1/26/2024

Produktspecifikationer

Varumärke:	Blizzard Lighting
Kategori:	Effektmaskin
Modell:	node:b RGBAL
Produkttyp:	Discobelysning, stroboskop
Vikt:	2404.04 g
Bredd:	444.5 mm
Djup:	482.6 mm
Höjd:	177.8 mm
LED-indikatorer:	Ja
Certifiering:	ETL, CE, RoHS
Lämplig för inomhusbruk:	Ja
Färgåtergivningsindex (CRI):	90
Spänning:	100 - 240 V
Ljuslägen:	DMX
DMX-ingång:	Ja
DMX-utgång:	Ja
Antal stift:	5
Antal DMX-kanaler:	9 kanaler
Produktens färg:	Svart
Ingångsfrekvens:	50 - 60 hz
Strömförbrukning (vanlig):	156 W
Lamptyp:	LED
Strömkälla:	AC
Lampor:	200 W
Antal:	1
Kuldiameter:	- "
Flimmerfri användning:	Ja
Integrerat handtag:	Ja
Minsta antalet DMX-kanaler:	6 kanaler
