HEX11WP-TX QUICK REFERENCE GUIDE
contact: support@blustream.co.uk / support@blustream.com.au
HEX11WP-TX
Quick Reference Guide
01
Our HEX11WP HDMI wall plate HDBaseT™ Transmitter is a 4K solution that extends
HDMI up to 70m at 1080p (40m at 4K 60Hz 4:2:0). The HEX11WP-TX has been
designed to work with all Blustream HDBaseT™ Receiver and Matrix solutions, be
installed in both UK and European backboxes and can be powered locally or from
compatible Blustream HDBaseT™ products.
Introduction
FEATURES:
• Advanced HDBaseT™ technology oering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD
Master Audio transmission
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ Receiver / Matrix products
• Bi-directional RS-232 pass through
• Supports IR pass-through to HDBaseT™ device
• Compatible with all Blustream HDBaseT™ Receiver / Matrix products*
• Magnetic faceplate surround allowing both UK & EU backbox compatibility
• HDCP 2.2 support
*Technical performance is subject to the features supported on the connected HDBaseT™ device
HEX11WP-TX QUICK REFERENCE GUIDE
www.blustream.com.au / www.blustream.co.uk
02

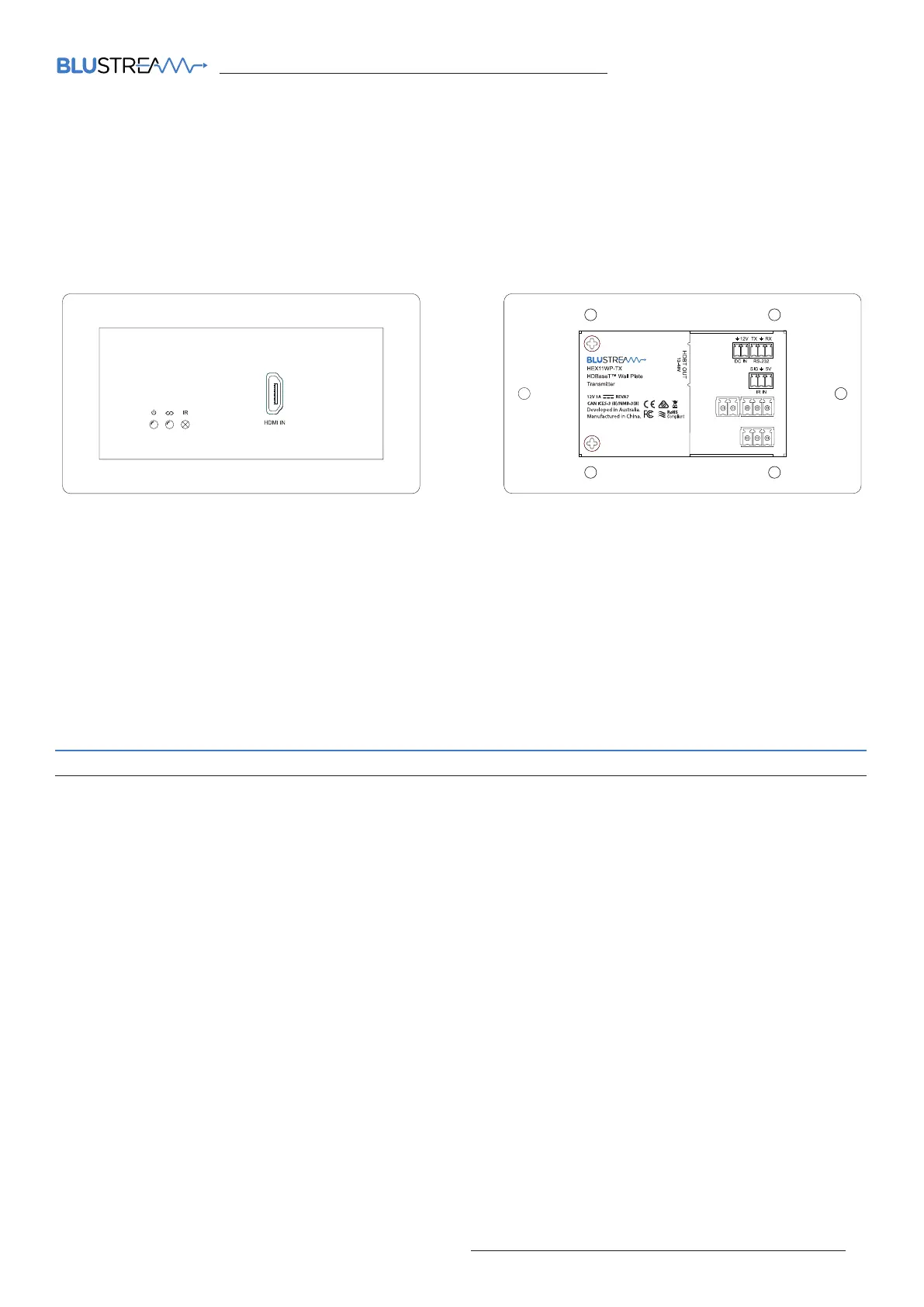

Front Panel Description
1 Power status indicator - Illuminates when powered
2 HDBaseT™ link status indicator - Illuminates when the Transmitter is connected to a HDBaseT™ Receiver / Matrix
product successfully
3 IR Receiver - Built in IR sensor for IR passthrough
4 HDMI input - Type A HDMI port to connect HDMI source
5 HDBaseT™ output - RJ45 HDBaseT™ port to connect to the input port of the compatible Blustream HDBaseT™
HDBaseT™ Receiver / Matrix device
6 12V DC input - 2-pin phoenix connector to connect to Blustream 12V power supply (supplied)
7 IR Receiver Input - 3-pin phoenix connector to connect to Blustream IR Receiver (not supplied)
8 RS-232 - 3-pin phoenix connector for RS-232 passthrough to / from compatible Blustream HDBaseT™ device
1 2 3 4
6 7 85
Rear Panel Description
EDID Management
Please note this unit does not feature EDID management. As HDBaseT is limited to 10.2Gbps video signals, please
make sure your source device only outputs a HDMI signal within this bandwidth. A video signal beyond 10.2Gbps of
bandwidth will not be passed through this device resulting in a blank screen.
HEX11WP-TX QUICK REFERENCE GUIDE
contact: support@blustream.co.uk / support@blustream.com.au 03
Example Schematic
