BUFEX
Attenuator, Buffer, and Speaker Expander
for Self-Amplified Speakers
Features
Can drive up to 50 self-amplified speaker inputs1
100V, 70V, 25V, and page port level selectable inputs
Bypass trim control for emergency paging
Continuously variable attenuator
© 2004 Bogen Communications, Inc.
Specifications subject to change without notice.
0511
Description
The BUFEX is a continuously variable speaker attenuator that allows the volume of a network of
speakers to be remotely controlled.The BUFEX provides output buffering for up to 50 self-ampli-1
fied speakers. It allows speaker system expansion for existing 00V, 70V, or 25V central amplifier1
systems.

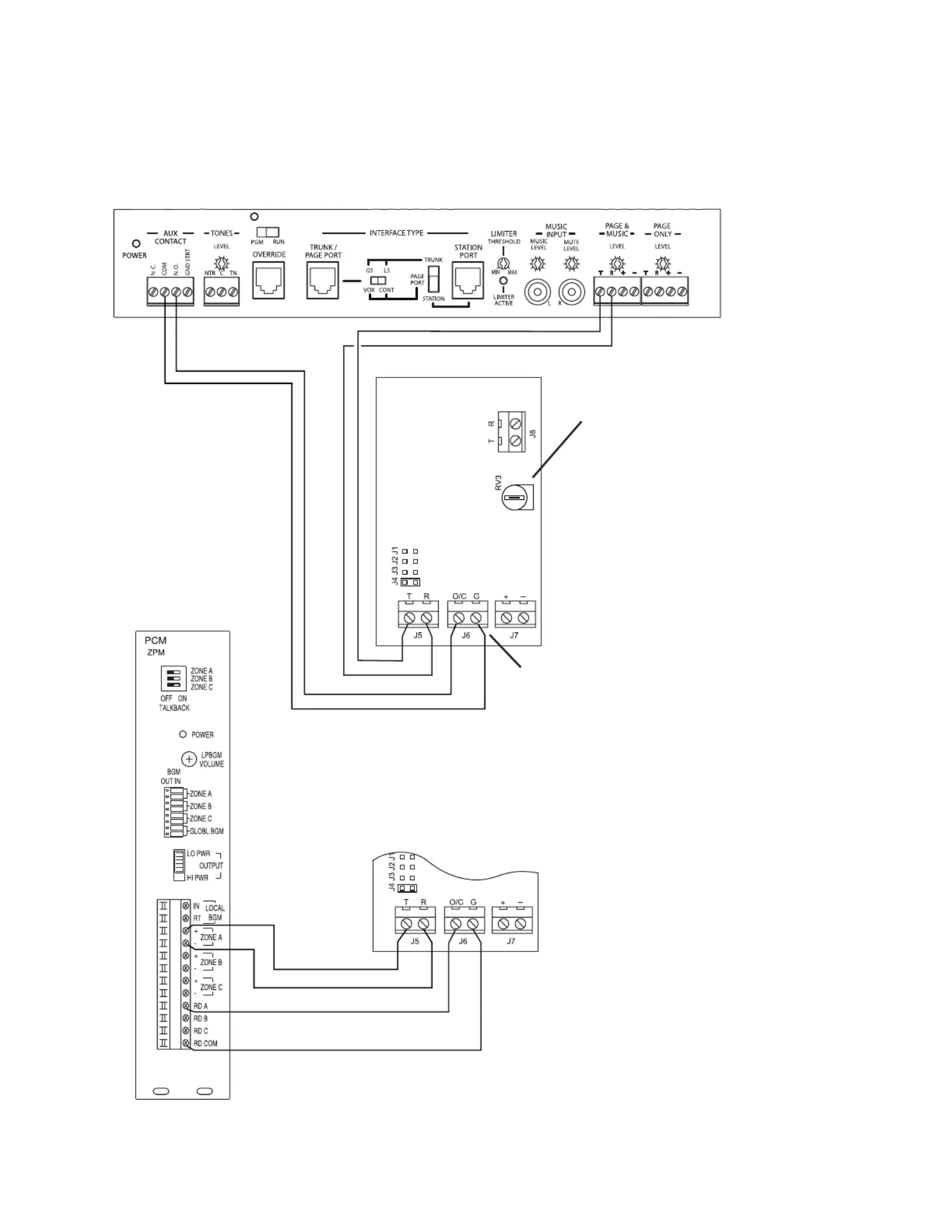

The unit includes a bypass function for overriding the volume control knob setting when
activated by a contact closure or open collector output. A bypass trim control adjusts the
volume when in bypass mode with a maximum of 2 dB of attenuation.The BUFEX fits into a sin-1
gle gang electrical box.
Installation
1. Make all the necessary electrical connections and jumper selection before installing unit.
2. Mount the unit to the electrical box using the 2 faceplate screws provided.
Package Contents
(1) Installation and Use Manual
(1) BUFEX Unit
(2) Faceplate Screws
