TECHNICAL DATA

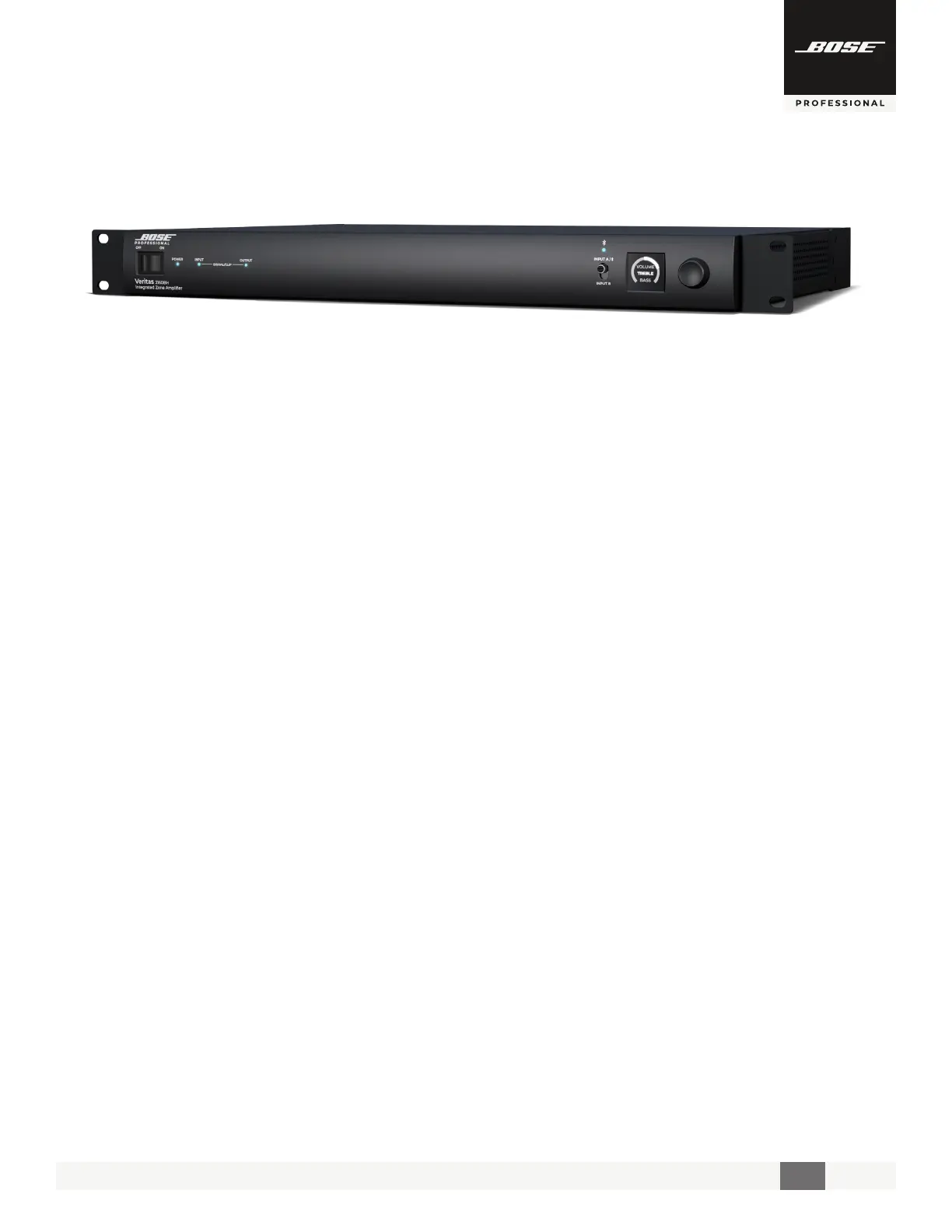

Veritas 2160BH
smart mixer amplier
BoseProfessional.com 1 OF 5
For additional specications and application information, visit BoseProfessional.com. Specifications are subject to change. 09/2025
Product Overview
The award-winning Veritas series from Bose Professional delivers superior background/foreground music, paging and
multimedia for commercial applications.
Bluetooth
®
5.0 wireless input and user-intuitive OLED screen with quick-start
QR code simplify setup—whether you’re a pro installer or a DIYer. With four models to choose from, Veritas ampliers
offer the perfect combination of power, performance and exibility.
The ultimate choice for large-scale 70V/100V distributed audio systems, the 2160BH efciently powers multiple zones with
premium sound clarity and reliable, consistent coverage. Ideal for hotels, conference centers, and multi-room installations,
the 2160BH offers high output with advanced features for integrators handling complex, high-demand applications.
Applications
Retail stores
Restaurants and bars
Hospitality venues
Conference centers
Schools
Auxiliary zones
Key Features
Premium amplication with advanced DSP for optimized performance
Bluetooth
connectivity and RCA connectivity—no wire splicing required
Intuitive front-panel OLED screen for easy setup and control
Embedded quick-start QR code in the OLED screen simplies installation
Supports high-impedance (70/100V) applications
Multi-zone exibility—support for two independent zones
Remote level control with Bose Professional or third-party wall controllers
Dynamic EQ adjusts bass levels to achieve a fuller sound even at low volumes
Up to 30 selectable EQ presets ensure Bose Professional signature sound
performance and long-term reliability
Opti-Voice paging feature ensures clear speech intelligibility
TECHNICAL DATA
Veritas 2160BH
smart mixer amplier
BoseProfessional.com 2 OF 5
For additional specications and application information, visit BoseProfessional.com. Specifications are subject to change. 09/2025
Technical Specications
POWER RATING
Amplier Power 2 × 160 W at 70V/100V
AUDIO PERFORMANCE
Frequency Response 20 Hz – 20 kHz (+0/-3 dB, @ 1 W reference 1 kHz)
THD+N ≤ 0.5 % (at rated power)
Channel Separation (Crosstalk) ≤ -58 dBu (below rated power, 1 kHz)
Dynamic Range 88 dB
INTEGRATED DSP
A/D & D/A Converters 24-bit, 48 kHz
Processing Functions Volume, tone controls, Opti-Voice paging, loudspeaker EQ, Dynamic EQ
Loudspeaker Presets
70 Hz high-pass lter, 80 Hz high-pass filter, AMU105, AMU108, DesignMax (all models),
EdgeMax (all models), FreeSpace FS (all models), subwoofer
Audio Latency 10.4 ms (any input to speaker output or aux output)
AUDIO INPUTS Line Inputs Page Inputs
Input Channels (2)balanced, (2)unbalanced (1)balanced mic/line
Connectors (2)RCA stereo pairs, (2)5-pin Euroblock (1)4-pin Euroblock
Input Range -8 dBu to +22 dBu -58 dBu to +12 dBu
Adjustment Range -20 dB to +20 dB 0 dB to +50 dB
Input Impedance 20 kΩ 2 kΩ
Maximum Input Level 22 dBu 12 dBu
Sensitivity -8 dBu -58 dBu
Nominal Input Level 4 dBu -38 dBu
AUDIO OUTPUTS Loudspeaker Outputs Auxiliary Outputs
Output Channels (2)loudspeaker (1)unbalanced line
Connectors (2)2-pin inverted Euroblock (1)RCA stereo pair
Output Impedance n/a 400 Ω
Nominal Output Level 2 × 160 W at 70V/100V 2 dBu
INDICATORS & CONTROLS
Power LED Solid blue (powered on), blinking blue (standby mode)
Input Signal LED Green (-34 dBu to +10 dBu), red (> +10 dBu). Input gain level set to 5.
Output Limit LED
Green (-40 dBFS to -2 dBFS), red (> -2 dBFS). Approximately 100W/channel. For each
output, 160W is 0dBFS.
Bluetooth
LED
Off (no
Bluetooth
device connected), blinking blue (ready to pair to a
Bluetooth
device),
solid blue (connected to a
Bluetooth
device)
Display OLED, 16-bit grayscale, 96 × 96 resolution
Controls, Front Panel Power on/off switch, input select switch (A/
Bluetooth
/B), rotary encoder
Controls, Rear Panel
Amplier mode DIP switches, input gain knobs (A, B, page), page threshold knob, mute
connector, ControlCenter ports, 70V/100V switch
