RANGE HOOD CORD KIT
Installation Instructions
WARNING
CORD KIT INSTALLATION

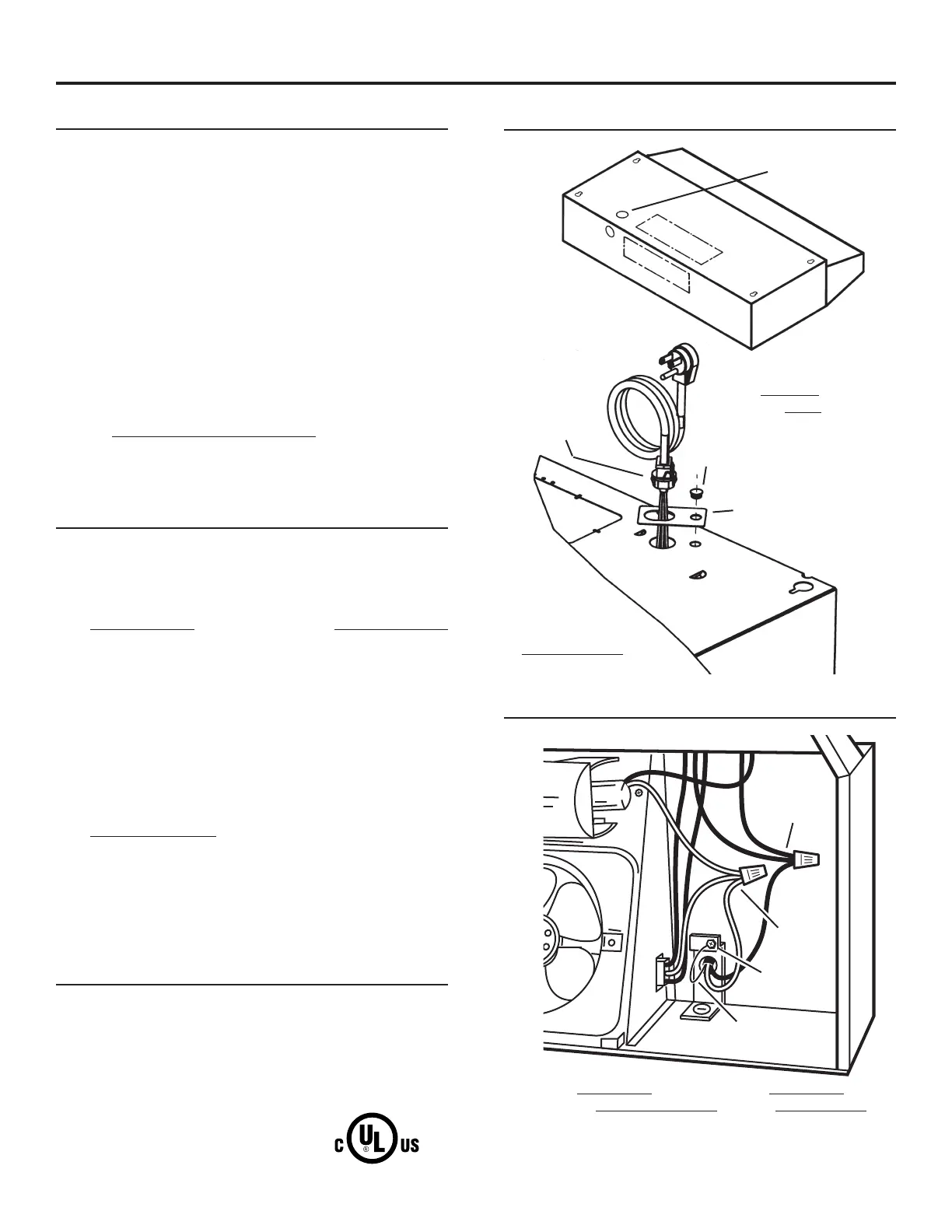

1. Remove this
electrical knockout
only.
2. Use bushing to
connect plate to
hood.
BUSHING
PLATE
CORD
CONNECTOR
3. Align plate with
knockout and attach
cord connector to
hood.
BLACK
WIRES
WHITE
WIRES
GREEN
GROUND WIRE
GROUND
SCREW
*
4. Connect black wires together. Connect white wires togeth-
er. Connect green ground wire beneath ground screw.
* If the range hood has an internal ground connection beneath
a ground screw, A SECOND GROUND SCREW MUST BE
USED for the cord kit ground.
99523894L
CAUTION
TO REDUCE THE RISK OF FIRE AND ELECTRICAL SHOCK,
THIS RANGE HOOD CORD-CONNECTION KIT IS cULus
CERTIFIED ONLY FOR USE WITH THE RANGE HOOD MODEL
SERIES LISTED BELOW:
BROAN SERIES
40000, 41000, 42000,
43000, 46000,BCDF1,
BCDJ1, BCSD1,
BCSEK1, BKDB1,
BKDEG1, BKSA1,
BKSH1, TEN1, TEN2,
BPDP1, ALT1, ALT2,
ALT3, CLDA1, CLDH1,
CLSC1, CRDE1,
CRSF1, SPE1, ALT4
and BXT1
NUTONE SERIES
RL, ACS, AR1,
AHDA1, AHSA1,
AVDF1, AVSF1
and NPDP1
KENMORE SERIES
5094, 5104, 5134, 5164, 5184, 5324, 5334,
5128, 5139, 5141, 5129, 5126, 5135 and 5140
ELECTRICAL RECEPTACLE LOCATION
A grounded, electrical receptacle for this cord kit must be in a
location that will not allow the cord to come in contact with any
heat source. Inside the cabinet above the range is the most
common location.
Do not plug into receptacles that would permit cord to come
into contact with heat sources.
FOR USE WITH RANGE HOODS ONLY.
GROUNDING INSTRUCTIONS
Range Hoods must be grounded. In the event of an electrical short
circuit, grounding reduces the risk of electric shock by providing
an escape wire for the electric current. After attaching this cord kit
to the range hood, it is equipped with a cord having a grounding
wire with a grounding plug. The plug must be plugged into an
outlet that is properly installed and grounded.
WARNING - Improper grounding can result in a risk of electric
shock.
Consult a qualified electrician if the grounding instructions are not
completely understood, or if doubt exists as to whether the range
hood is properly grounded.
Do not use an extension cord. If the power supply cord is too short,
have a qualified electrician install an outlet near the appliance.
This kit includes the following:
(1) 36” Cord & Plug with Cord Connector
(1) Anti-Rotation Plate with Lock Bushing
(2) Wire Nuts
WIRING CONNECTIONS
Other cord kits are not cULus certified - unless the specific
model numbers are listed.
