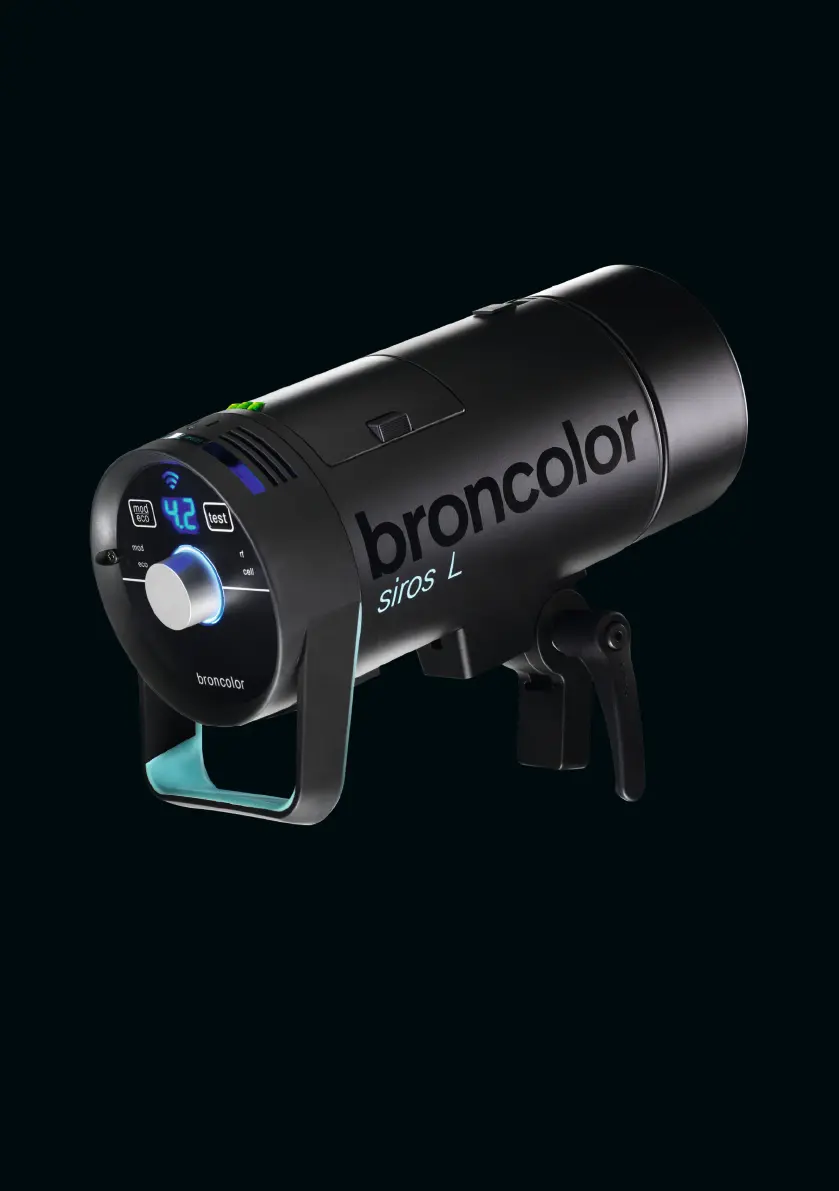

Broncolor Siros 800 L Bruksanvisning

Broncolor Lampa Siros 800 L

Läs gratis den bruksanvisning för Broncolor Siros 800 L (12 sidor) i kategorin Lampa. Guiden har ansetts hjälpsam av 28 personer och har ett genomsnittsbetyg på 4.4 stjärnor baserat på 14.5 recensioner. Har du en fråga om Broncolor Siros 800 L eller vill du ställa frågor till andra användare av produkten? Ställ en fråga

Ladda ner PDF

Sida 1/12

OPERATING INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

Before start-up of your flash equipment, please read all the information contained in these oper-

ating instructions carefully. The safety instructions they contain must be strictly followed!

> Remove all transport protection and packing materials!

> Take special care of your equipment, particularly when there are children present! Never leave the

flash equipment unattended!

Like sunlight, flash light contains a certain amount of radiation! Using flash tubes or protective UV

glasses that provide UV protection considerably reduces the undesirable side effects on skin and

eyes! Nevertheless, when taking pictures at close range, avoid exposing unprotected skin and eyes

to flashes! Avoid looking directly into the light source! The maximum permitted daily exposure to

UV radiation according to IEC 60335-2-27 / DIN 5031-10 is: 50 J/m

. This value must not be exceeded.

> The distance between a lamp and a person, or a lamp and an inflammable or heat-sensitive surface

must be at least 1 m to prevent injury or damage due to thermal radiation!

> Remove the battery before you clean or service the unit! Allow at least 10 minutes for the lamp to

cool before replacing the flash tube!

> broncolor flash light systems should only be used with original broncolor flash tubes, original

broncolor bulbs and fuses, original broncolor accessories, and original broncolor spare parts.

> broncolor monolights and accessories comply with extremely high safety standards! However, if

equipment from other manufacturers is used with broncolor monolights, the built-in safety meas-

ures may be rendered ineffective. Our guarantee is invalidated by the use of such unauthorised

combinations, and we accept no liability for damage arising from such use.

> To minimise the risk of fire, electric shock, or injury to persons, use exclusively accessories recom-

mended by the manufacturer!

> The flash equipment is designed for use in dry conditions and in an ambient temperature between

−10° C and +60° C. Protect the flash equipment from moisture, condensation, from dripping and

splash water, high humidity, dirt, sand, metal chips and the effects of dust!

> Protect the flash equipment from electromagnetic fields, shock and vibration!

Protect flash equipment from heat and frost! If the monolight is subject to prolonged exposure to

sub-zero temperatures, a permanent loss of power output and serious technical damage may result!

> Sudden temperature differences may result in condensation forming inside the unit. In such situ-

ations allow the equipment to stand for at least one hour in a well-ventilated place to acclimatise

to the new temperature before start-up!

> Do not operate the flash equipment in places where there is an explosion hazard!

> Do not use the power pack in or on water! Attention: High voltage – danger of fatal injury!
