ASSEMBLY INSTRUCTIONS FOR YOUR
B808

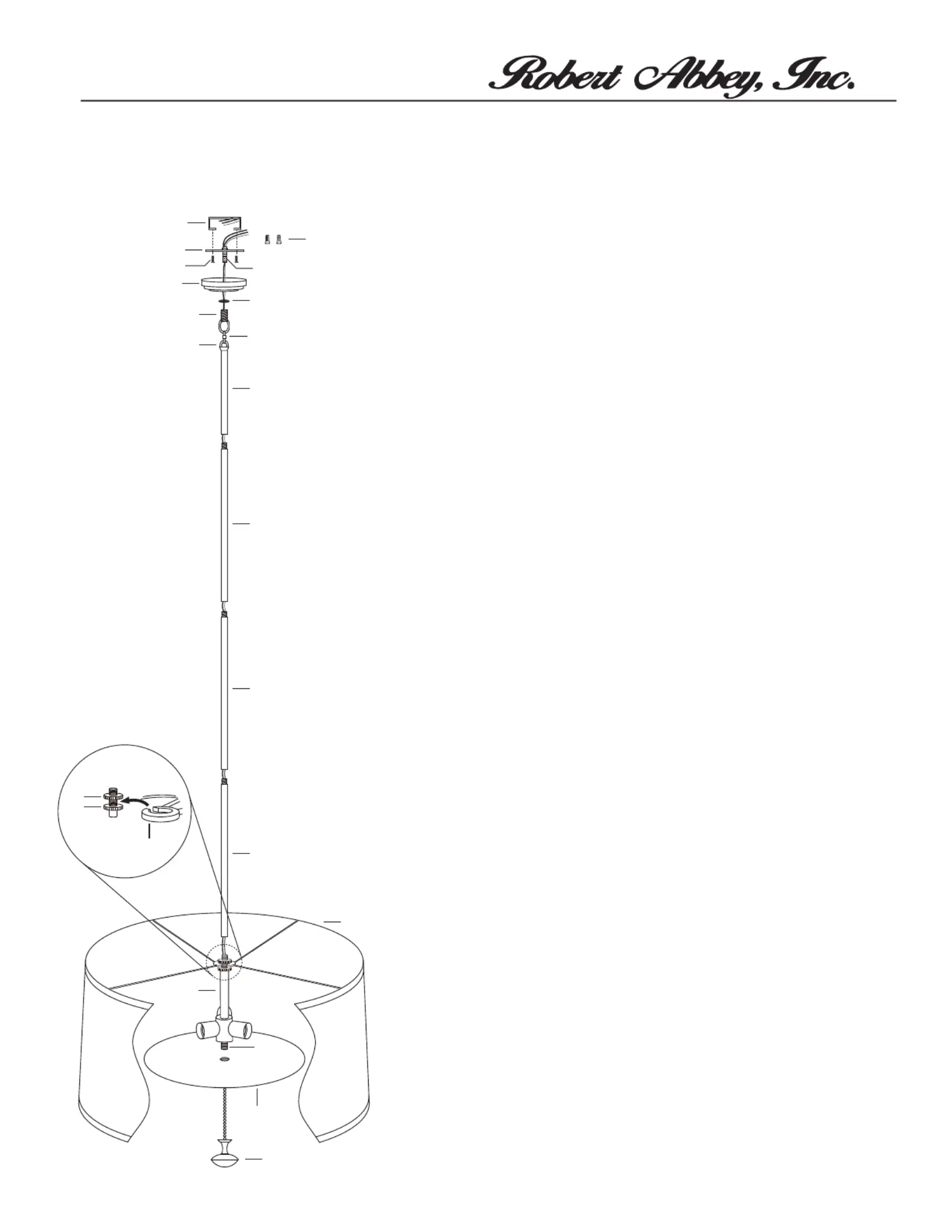

OUTLET BOX
(A)
(B)
(C)
(J)
(K)
(L)
(N)
(P)
(O)
(M)
(F)
(H)
(D)
(E)
(G)
(Q)
(I)
(I)
(I)
(I)
(R)
PENELOPE PENDANT
ASSEMBLY INSTRUCTIONS:
1. SHUT OFF THE MAIN ELECTRICAL SUPPLY AT FUSE BOX/ CIRCUIT
BREAKER.
2. Remove all parts from carton. Do not throw away any parts.
3. Remove cross bar (A) from hang straight (F) by unthreading tube (C) from
hang straight (F). Afx cross bar (A) (including threaded tube (C) to ceiling
outlet box using cross bar screws (B) provided.
4. Measure desired drop for xture to hang and add/remove extension tubes (I).
Guide wiring through extension tubes before threading tubes together.
**ADD/REMOVE EXTENSIONS: (Un)Thread the threaded nipple of one
extension into the threaded opening of the next extension. Make sure wiring is
pulled tight when threading extensions together to prevent damage to the wire**
5. Connect hang straight (F) and loop (H) with quick link (G).
6. Thread bottom extension tube (I) onto the threaded nipple at top of tube (M).
7. Unthread collar (E) from hang straight (F). Slide collar (E) and canopy (D)
down hang straight (F), quick link (G) and extension tube (I). Let collar (E) and
canopy (D) rest on shade washer (J).
8. Lift xture to ceiling outlet box. Guide wiring through threaded tube (C).
Thread hang straight (F) onto threaded tube (C).
9. Make proper electrical connection. A LICENSED ELECTRICIAN IS
RECOMMENDED.
10. Attach ground wire from xture (green or copper in color) to ground wire from
outlet box.
11. Attach hot wire from xture (black in color or smooth side of wire) to hot wire
from outlet box. Fasten wires together with wire nut (Q) and tightly wrap
connection with electrical tape.
12. Attach neutral wire from xture (white in color or ribbed side of wire) to
neutral wire from outlet box. Fasten wires together with wire nut (Q) and
tightly wrap connection with electrical tape.
13. Slide canopy (D) up extension tubes (I) and hold rmly against ceiling. Slide
collar (E) up extension tubes (I) and thread onto hang straight (F), securing
canopy (D) against ceiling.
14. Lift shade (N) over bottom section of xture. Slide split washer (L) between
shade washer (J) and shade washer (K). Secure position of shade (N) by
turning shade washer (J) clockwise until it rests rmly against split washer (L).
15. Install three (3) 100W MAX Type A bulbs into sockets.
16. Align top of diffuser (P) with threaded nipple (O). Carefully thread diffuser (P)
onto threaded nipple (O) until hand tight.
***To clean, use soft cloth only. Do not use any chemical or abrasive cleaners.***
IMPORTANT SAFETY INSTRUCTIONS:
*These instructions are provided for your safety. It is very important that
they are read completely before beginning the installation of your xture.
*WE STRONGLY RECOMMEND INSTALLATION BY A
LICENSED ELECTRICIAN.
*Turn off power at switch before replacing bulbs, making sure xture has
had sufcient time to cool down.
*DO NOT subject the xture to any shock while lit as shattering of bulbs
may result.
* Finial (R) is strictly decorative. DO NOT PULL ON FINIAL (R) FOR ANY
REASON.
