GRACE TRIPLE WALL SCONCE
ASSEMBLY INSTRUCTIONS FOR YOUR
486
***To clean, use soft cloth only. Do not use any chemical or abrasive cleaners.***
CORD COVER ASSEMBLY INSTRUCTIONS:
1. Remove mounting plate (A) from backplate (C) by removing screws (D).
2. Determine desired location for light xture on wall. Hold mounting plate (A)
in a level position against the wall. Using a pencil, mark the location of the
mounting holes in mounting plate (A) onto the wall.
3. Drill small holes at marked locations on the wall. Holes should be sized so
they accommodate wall anchors (N), provided. Insert wall anchors into
drilled holes.
11. Attach hot wire from xture (black in color or smooth side of wire) to hot wire from outlet box. Fasten wires together with wire nut (O) and
tightly wrap connection with electrical tape.
12. Attach neutral wire from xture (white in color or ribbed side of wire) to neutral wire from outlet box. Fasten wires together with wire nut (O)
and tightly wrap connection with electrical tape.
13. Carefully push wire connections back into wall outlet box. Slide backplate (C) over mounting plate (A).
14. Thread screws (D) into holes at the top and bottom of backplate (C) to secure the xture to the mounting surface.
15. Remove ange (L) from socket, located inside housing (J).
16. Carefully slide glass shade (K) over socket. To secure shade to xture, thread ange (L) back onto socket
until hand tight. Repeat steps 15 and 16 for remaining shade.
17. Insert three 60W MAX. Type A, medium base bulbs into sockets located inside housings (J).
18.Reconnect main electrical supply at the fuse box/circuit breaker and test xture.
IMPORTANT SAFETY INSTRUCTIONS:
* These instructions are provided for your safety. It’s important that all safety
instructions are read before beginning installation of xture.
* We STRONGLY recommend installation by a licensed electrician.
* Turn o power at switch before replacing bulbs, making sure xture has had
sucient time to cool down.
* Do not connect the electricity until lamp is fully assembled.
* This xture is UL rated for dry locations.
4. Ax mounting plate (A) to the wall by threading mounting screws (M) through holes in mounting
plate (A) and into wall anchors (N).
5. Slide backplate (C) over mounting plate (A). Thread screws (D) back into holes at the top and bottom of
backplate (C) to secure xture to the mounting surface.
6. Thread cord cover (F) into the bottom of the backplate (C). Thread cord cover (G) onto cord cover (F).
7. Remove ange (L) from socket, located inside housing (J).
8. Carefully slide glass shade (K) over socket. To secure shade to xture, thread ange (L) back onto
socket until hand tight.
9. Insert one 60W MAX. Type A, medium base bulb into socket located inside housing (J).
10. Insert three prong plug (I) into wall outlet. Control power by using switch on cord (H).
DIRECT WIRE ASSEMBLY INSTRUCTIONS:
1. SHUT OFF MAIN ELECTRICAL SUPPLY FROM THE MAIN FUSE BOX/CIRCUIT BREAKER.
IT IS RECOMMENDED THAT A LICENSED ELECTRICIAN INSTALL THIS FIXTURE.
2. Remove mounting plate (A) from backplate (C) by removing screws (D).
3. Cut three prong plug (I) from the end of the electrical cord.
4. Remove cord covers (F) and (G) from the electrical cord. From the back side of backplate (C), pull
the electrical cord up through the hole in the bottom of the backplate.
5. Cut the cord to the desired length for making an electrical connection. At least six inches of wire will
be needed to make proper electrical connection.
6. Thread plug (E) into the hole located in the bottom of backplate (C).
7. Carefully pull the wiring from wall outlet box. Thread the wires through the center hole in mounting
plate (A).
8. Ax mounting plate (A) to wall outlet box with mounting screws (B) provided. For extra support,
thread mounting screws (M) through mounting support holes (A) and into wall anchors (N).
9. Lift xture to mounting plate and make proper electrical connections described in steps 10 - 12. A
LICENSED ELECTRICIAN IS RECOMMENDED.
10. Connect ground (green or silver in color) wire from xture to ground wire in the outlet box. Fasten
wires together with wire nut (O) and tightly wrap the connection with electrical tape.

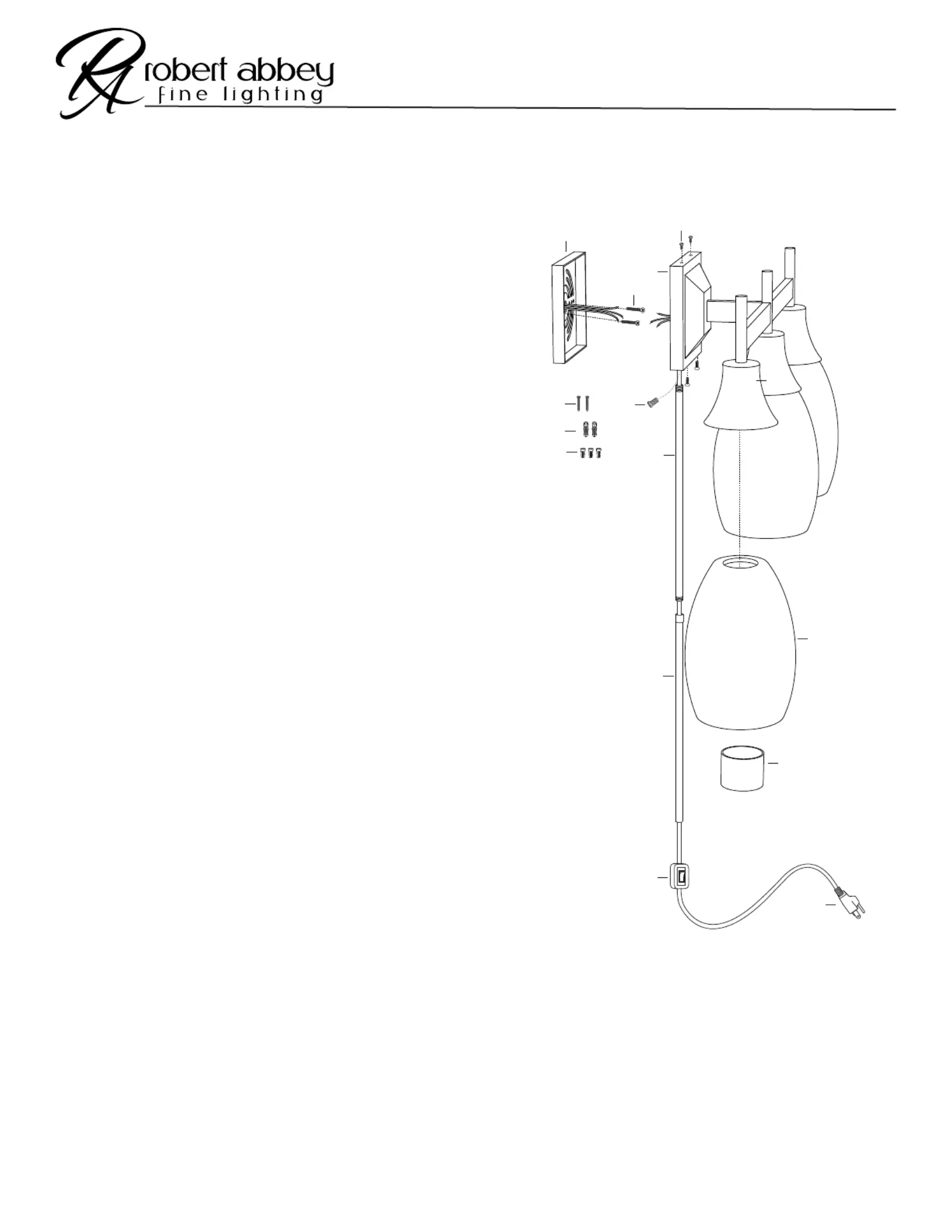

(D)
(G)
(H)
(I)
(A)
(B)
(C)
(E)
(F)
(J)
(K)
(M)
(N)
(O)
(L)
