Sida 1/16

Remove the Old Unit from the Dashboard

DIN Front Mount

DO NOT DISCONNECT WIRES

AT THIS TIME!

2. Insert the keys supplied with the

old unit into both sides of the unit

as shown in figure below until

they click. Pull to remove the old

unit from the dashboard.

1. ve t t t f .Remo he ou er rim rame

INSTALLATION

Tools for Installation

Use the 2 removal wrenches of the old unit to take out the old unit and place with this brand new car radio. The following tools and sup-

plies may also be needed for the installation:

Tools for Installation: Philips Screw-drivers /Machine Screws /Wire Stripper /Wire Cutter /Hammer /Pencil /Electrical Tape /Electric Drill

Supplies for Installation: Machine Screws /Crimp Connectors /14 Gauge Wire for Power Connections /14-16 Gauge Speaker Wires

The above are not supplied.

Before you install

Automotive audio equipment installations can be challenging even to the most experienced of installation technicians. We strongly rec-

ommend that this unit should be professionally installed by a T registered installer (this is a requirement to validate the warranty).VA

IMPORTANT: Remove the two transport screws from the top fo the unit before installing.

Mark Polarity of the Speaker Wires

Marking the polarity of the speaker wirers will make it easier to connect the existing speakers to your car radio. Consult wiring diagram

of existing head unit before disconnecting any wires. If you are not positive of the polarity of the existing wires from the speakers to the

head unit, install new wires.

1. While the old unit is playing, disconnect the wires from one speaker.

2. Take a length of masking tape and fold it around the wire so it forms a flag.

3. On the masking tape mark the polarity of the speaker wires (+&-), as well as left or right, and front or rear.

4. Double check that you marked the first speaker correctly by checking that the speaker wires are the same at the head unit.

5. Repeat this procedure for all of the speakers.

6. Mark the power, ground, and any other wires also.

INSTALLATION

WARNING!

Disconnect negative battery terminal from battery before starting installation. Consult the vehicle’s owner’s

manual for proper instructions.

NOTE: Mark the polarity of the existing speaker wires before disconnecting battery.

NOTE: Remove the two transport screws from the top of the unit before installing.

NOTE: Make sure there is enough space for the installation of this single-din in-dash.

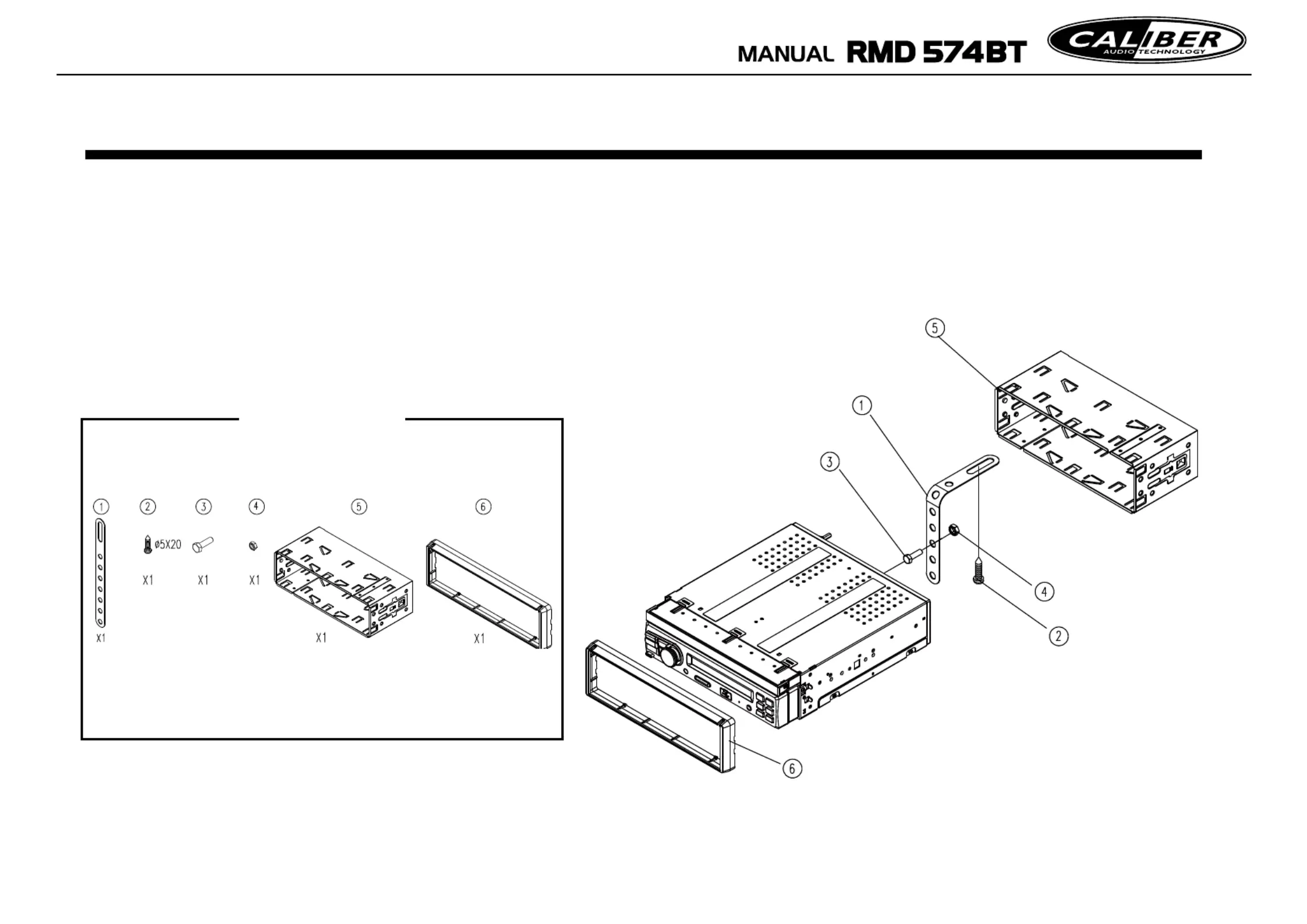

SUPPLIED TOOLS

Produktspecifikationer

Varumärke:	Caliber
Kategori:	bilradio
Modell:	RMD574BT
Inbyggd display:	Ja
Skärm diagonal:	7 "
Pekskärm:	Ja
Bluetooth-profiler:	A2DP, AVRCP
Ljudformat som stöds:	MP3, WMA
Videoformat som stöds:	DIVX, MPEG4
Frekvensband:	AM, FM
Volymkontroll:	Digital
FM-radio:	Ja
USB-version:	2.0
Uteffekt:	300 W
Hopfällbar:	Ja
Videoingång:	1
AV-ingång:	Ja
Uppspelningsformat:	Nej
DVD-spelare:	Nej
Fjärrkontroll ingår:	Ja
Linjeutgångar (RCA):	2
Typ av minneskort:	SD
CD-spelare:	Nej
Produktens färg:	Svart
Antal USB-portar:	1
Skärmtyp:	TFT
MP3-uppspelning:	Ja
Inbyggd kortläsare:	Ja
Produktstorlek (BxDxH):	182 x 165 x 50 mm
Video ut:	1
Equalizer:	Ja
DIN storlek:	1 DIN
Bildkomprimeringsformat:	JPG
USB-port:	Ja
Bluetooth:	Ja
RDS radio ingår:	Ja
Antalet förinställda stationer:	30
Uppspelning av CD-R:	Nej
Uppspelning av CD-RW:	Nej
Equalizer tonkontroller:	3
iPod-förberedd:	Nej
USB direct playback:	Ja
Visning av ID3-taggar:	Ja
Subwoofer ut:	Ja
ISO anslutning:	Ja
Borttagbar frontpanel:	Ja
Backkamera klar:	Ja
