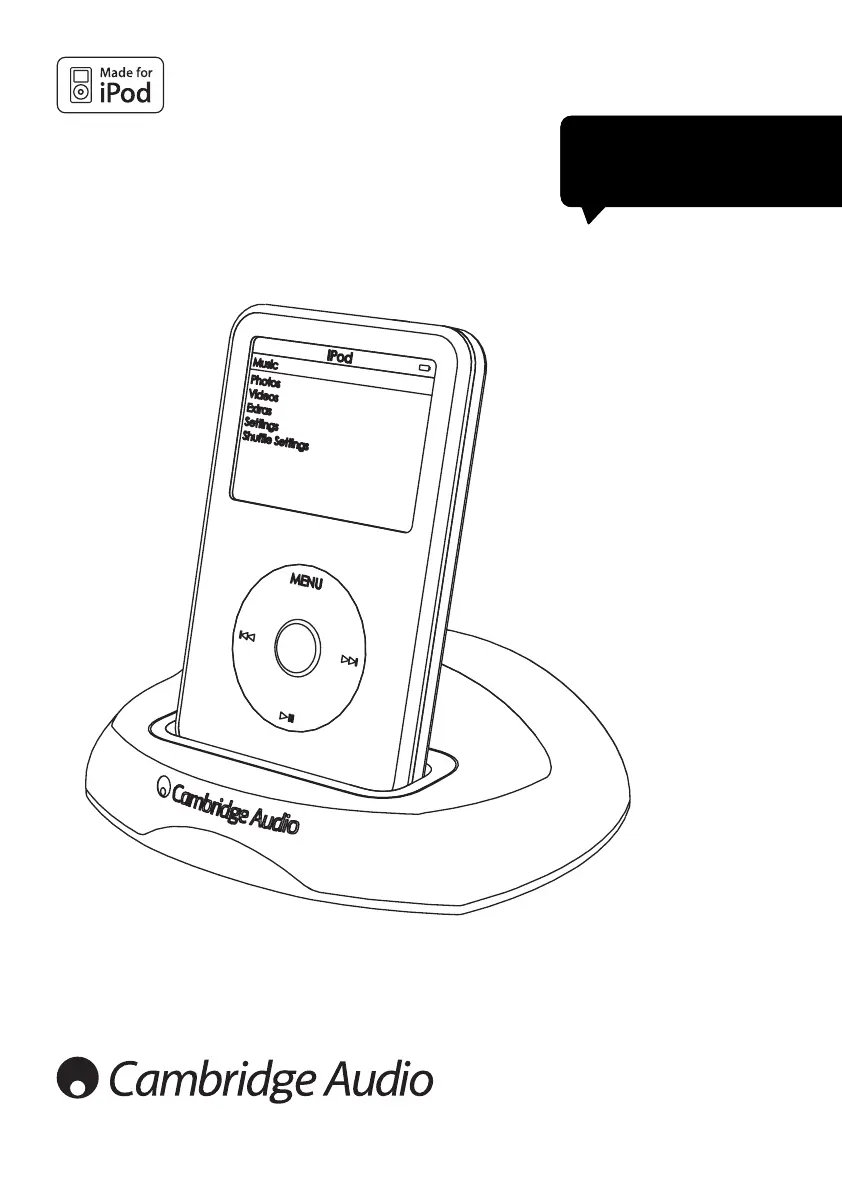

Sida 1/12

ENGLISH

Docking Station for iPod

User’s manual

Your music + our passion

iD50

Contents

Introduction .............................................................................2

Important safety instructions ................................................3

Limited warranty .....................................................................4

Rear panel ...............................................................................5

Connections.............................................................................5

Front panel ..............................................................................6

Remote control........................................................................7

Operating instructions ............................................................8

Technical specifications .......................................................10

Troubleshooting.....................................................................11

Thank you for purchasing the Cambridge Audio iD50

Audiophile Docking Station for iPod. We are confident that

it will provide you with many years of listening pleasure.

The iD50 enables you to get the very best audio and video

quality from your iPod. A ground sensing pseudo-balanced

noise cancelling scheme and buffered audio outputs extract

the maximum information possible.

Gold-plated RCA/Phono connections allow the iD50 to be

used with a high quality separates system for true

audiophile performance.

In addition, you can use your television to both browse your

iPod via the iD50’s simple On-Screen Display and view video

content. An RS232 interface is also included for custom

installation use.

The iD50 supports both Simple and Advanced modes of

operation. In Simple Mode, the dock is in an active standby

state to allow charging of the iPod and output of the audio

via the iD50. The iPod’s own display is active and it is

controllable via the supplied remote control or its own front

panel and touch-wheel.

In Advanced Mode, the iPod can be controlled and browsed

using the remote control and the iD50’s On-Screen Display

via a suitable TV. Audio and video are available via the iD50

connections and charging of the iPod can be turned on or

off.

Please do not compromise on the quality of interconnects

you use with this product. Naturally, we particularly

recommend cables from the Cambridge Audio range,

designed to the same exacting standards as this product.

Contact your dealer for details.

Thank you for taking the time to read this manual; we

recommend you keep it for future reference.

Matthew Bramble

Cambridge Audio Technical Director

and the Docking Station design team

Introduction

Like all Cambridge Audio products, the

iD50 adheres to three core principles –

stunning performance, ease of use and

incredible value.

Make sure you register your purchase!

Visit: www.cambridgeaudio.com/sts

By registering, you’ll be the first to know about:

Future product releases

Software upgrades

News, events and exclusive offers plus

competitions!

This guide is designed to make installing and using this

product as easy as possible. Information in this document

has been carefully checked for accuracy at the time of

printing; however, Cambridge Audio's policy is one of

continuous improvement, therefore design and specifications

are subject to change without prior notice.

This document contains proprietary information protected

by copyright. All rights are reserved. No part of this manual

may be reproduced by any mechanical, electronic or other

means, in any form, without prior written permission of the

manufacturer. All trademarks and registered trademarks

are the property of their respective owners.

“Made for iPod” means that an electronic accessory has

been designed to connect specifically to iPod and has been

certified by the developer to meet Apple performance

standards.

Apple is not responsible for the operation of this device or

its compliance with safety and regulatory standards.

iTunes, iPod and the Apple logo are trademarks of Apple

Inc., registered in the U.S. and other countries.

iD50

ENGLISH

Important safety instructions

For your own safety please read the following important safety

instructions carefully before attempting to connect this unit to the

mains power supply. They will also enable you to get the best

performance from and prolong the life of the unit:

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with

the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers) that

produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than the

other. A grounding-type plug has two blades and a third grounding

prong. The wide blade or the third prong are provided for your

safety. If the provided plug does not fit into your outlet, consult an

electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched,

particularly at plugs, convenience receptacles and the point

where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use with only the cart, stand, tripod, bracket, or table

specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when

moving the cart/ apparatus combination to avoid injury

from tip-over.

13. Unplug this apparatus during lightning storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way, such

as the power-supply cord or plug having been damaged, liquid has

been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate

normally, or has been dropped.

WARNING – To reduce the risk of fire or electric shock, do not expose

this unit to rain or moisture.

The unit must be installed in a manner that makes disconnection of

the mains plug from the mains socket outlet (or appliance connector

from the rear of the unit) possible. Where the mains plug is used as

the disconnect device, the disconnect device shall remain readily

operable. Only use the mains cord supplied with this unit.

Please ensure there is ample ventilation (at least 10cm clearance all

round). Do not put any objects on top of this unit. Do not situate it on

a rug or other soft surface and do not obstruct any air inlets or outlet

grilles. Do not cover the ventilation grilles with items such as

newspapers, tablecloths, curtains, etc.

This unit must not be used near water or exposed to dripping or

splashing water or other liquids. No objects filled with liquid, such as

vases, shall be placed on the unit.

The lightning flash with the arrowhead symbol within an equilateral

triangle is intended to alert the user to the presence of un-insulated

‘dangerous voltage’ within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

instructions in the service literature relevant to this appliance.

The symbol on this product indicates that it is of CLASS II

(double insulated) construction.

WEEE symbol

The crossed-out wheeled bin is the European Union symbol

for indicating separate collection for electrical and electronic

equipment. This product contains electrical and electronic

equipment which should be reused, recycled or recovered

and should not be disposed of with unsorted regular waste. Please

return the unit or contact the authorised dealer from whom you

purchased this product for more information.

CE mark

This product complies with European Low Voltage

(2006/95/EC) and Electromagnetic Compatibility

(89/336/EEC) Directives when used and installed according to this

instruction manual. For continued compliance only Cambridge Audio

accessories should be used with this product and servicing must be

referred to qualified service personnel.

C-Tick mark

This product meets the Australian Communications

Authority’s Radio communications and EMC requirements.

Ross Test Stamp

This product meets Russian electronic safety approvals.

FCC regulations

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO

OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS

TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER

AUTHORITY TO OPERATE THE EQUIPMENT.

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation.

If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

– Re-orient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

Produktspecifikationer

Varumärke:	Cambridge
Kategori:	Vagga/dockningsstation
Modell:	iD50
Inbyggda högtalare:	Nej
Fjärrkontroll ingår:	Ja
Produktens färg:	Svart
bruksanvisning:	Ja
Inbyggd kortläsare:	Nej
Kompositvideo ut:	1
Strömförbrukning (vanlig):	2.5 W
AC-inspänning:	100-240 V
Anslutningsteknologi:	Dockning
Nätverksansluten (Ethernet):	Nej
Likströmsingång:	Ja
Antal ljudutgångar vänster/höger:	1
Växelström Frekvens:	50 - 60 hz
AC-adapter inkluderad:	Ja
S-video ut:	1
Uttag för mikrofon/linje in:	Nej
Laddningskontakt:	Ja
