INSTALLATION INSTRUCTIONS
DURA
®
SPOT FILTER
INTERCHANGEABLE LENSES FOR CAMEO DURA SPOT
DS 60, DS 100, DS 200, DS 400 SPOTLIGHTS
Product number:CLDS60FILTER55
Type:55° interchangeable lens for DS60
Material:Plastic
Dimensions (Ø x height):79 x 1,5 mm
Weight:0.03 kg
Product number:CLDS60FILTER6010
Type:60° x10° interchangeable lens for DS60
Material:Plastic
Dimensions (Ø x height):79 x 1,5 mm
Weight:0.03 kg
Product number:CLDS100FILTER20
Type:20° interchangeable lens for DS100
Material:Plastic
Dimensions (Ø x height):115 x 1,5 mm
Weight:0.08 kg
Product number:CLDS100FILTER40
Type:40° interchangeable lens for DS100
Material:Plastic
Dimensions (Ø x height):115 x 1,5 mm
Weight:0.08 kg
Product number:CLDS100FILTER55
Type:55° interchangeable lens for DS100
Material:Plastic
Dimensions (Ø x height):115 x 1,5 mm
Weight:0.08 kg
Product number:CLDS100FILTER6010
Type:60° x 10° interchangeable lens for DS100
Material:Plastic
Dimensions (Ø x height):115 x 1,5 mm
Weight:0.08 kg
Product number:CLDS200FILTER20
Type:20° interchangeable lens for DS200
Material:Plastic
Dimensions (Ø x height):140 x 1,5 mm
Weight:0.12 kg
Product number:CLDS200FILTER40
Type:40° interchangeable lens for DS200
Material:Plastic
Dimensions (Ø x height):140 x 1,5 mm
Weight:0.12 kg
PRODUCT INFORMATION
This item is a product-specific accessory intended exclusively for use with Cameo Dura Spot
series spotlights.
These installation instructions do not replace the user manual of the associated product. Always
read the user manual first. This accessory has no influence on the intended use of the associated
product. Observe the safety instructions in the user manual of the associated product! The techni-
cal specifications stated in the user manual may change in connection with this accessory.
SAFETY INSTRUCTIONS
1. Please read this manual carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Use the accessory in the prescribed manner only.
DANGER: KEEP AWAY FROM CHILDREN! THE PRODUCT CONTAINS SMALL PARTS THAT CAN BE
SWALLOWED AS WELL AS PACKAGING MATERIAL THAT CAN BE SWALLOWED! PLASTIC BAGS
MUST BE KEPT OUT OF THE REACH OF CHILDREN!
PACKAGING CONTENT
Remove the product from the packaging and remove all packaging material. Please check the
completeness and integrity of the delivery and notify your distribution partner immediately after
purchase if the delivery is not complete or if it is damaged. Each product includes the correspon-
ding glare shield and installation instructions.
INSTALLATION

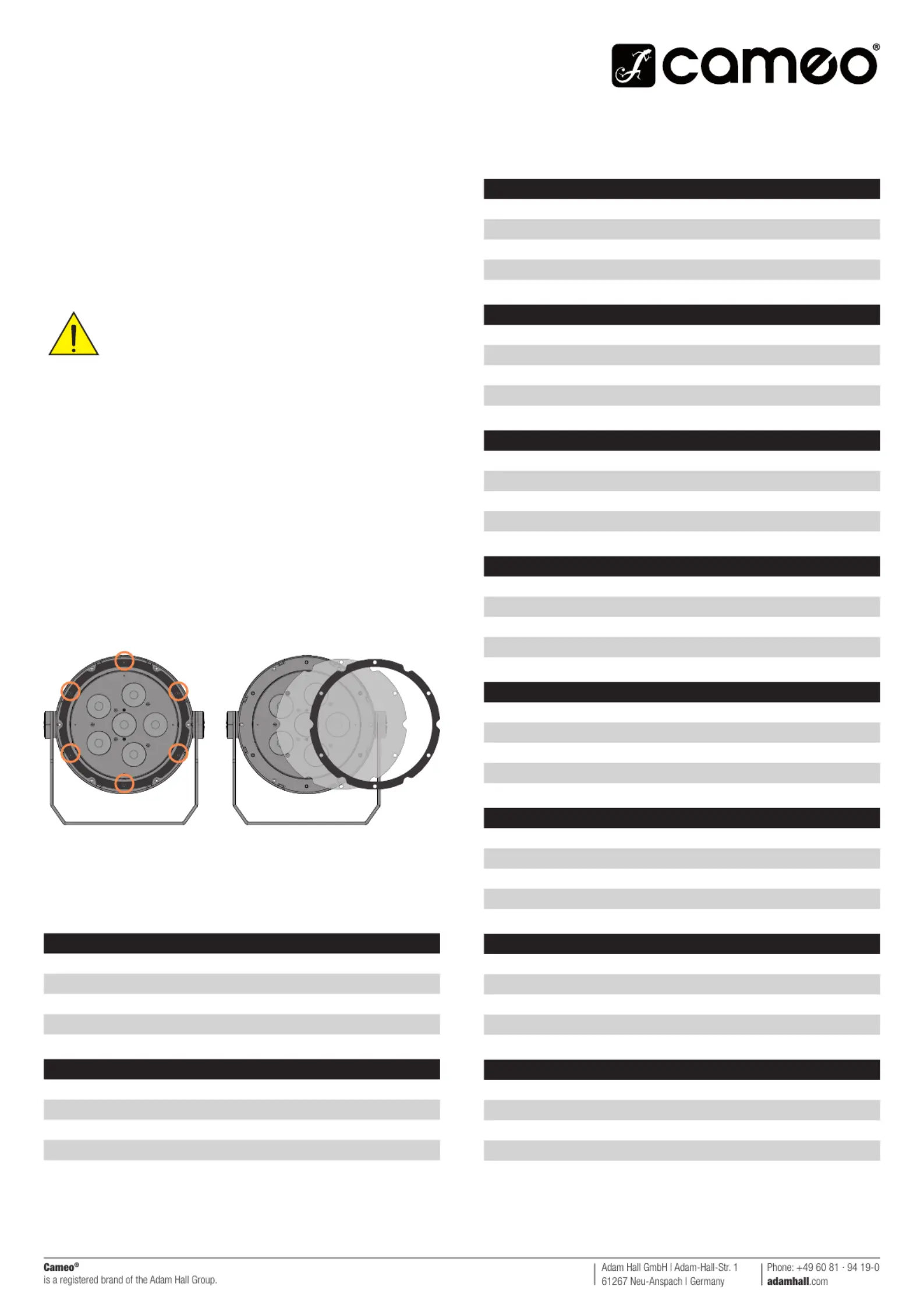

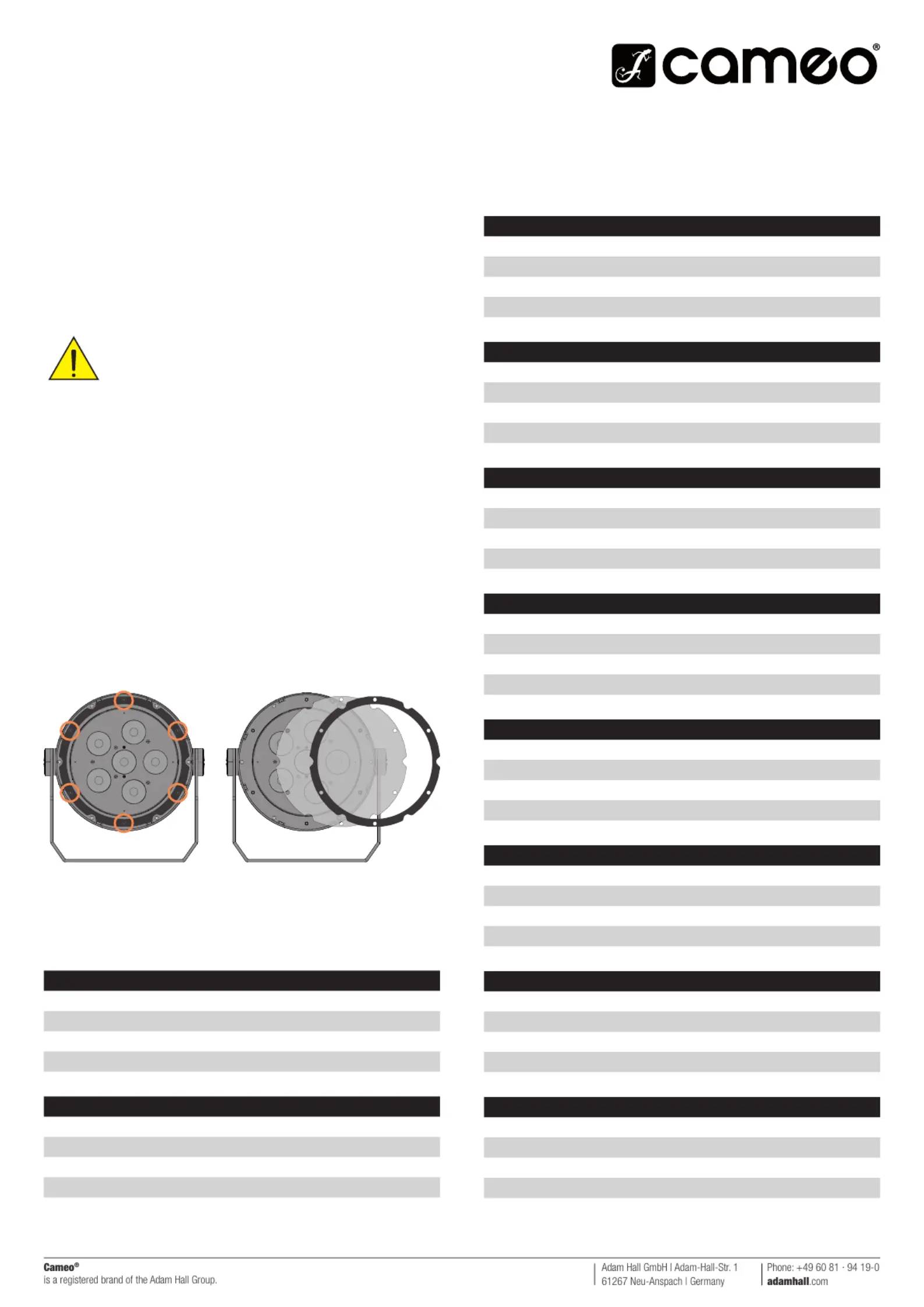

Remove the Phillips screws (see markings) from the mounting ring for the interchangeable lenses
and remove the ring from the glare shield of the spotlight (pictured: DS 100). Place the lens with
the textured side facing the lamp on the glare shield and then place the mounting ring over it whi-
le ensuring that the mounting holes of the lens and ring are exactly aligned with the screw holes
in the spotlight. Now attach the lens and ring to the glare shield using the previously removed
Phillips screws.
- Illustrations similar -
- Spotlight and mounting ring not included -
TECHNICAL SPECIFICATIONS
Product number:CLDS60FILTER20
Type:20° interchangeable lens for DS60
Material:Plastic
Dimensions (Ø x height):79 x 1,5 mm
Weight:0.03 kg
Product number:CLDS60FILTER40
Type:40° interchangeable lens for DS60
Material:Plastic
Dimensions (Ø x height):79 x 1,5 mm
Weight:0.03 kg
