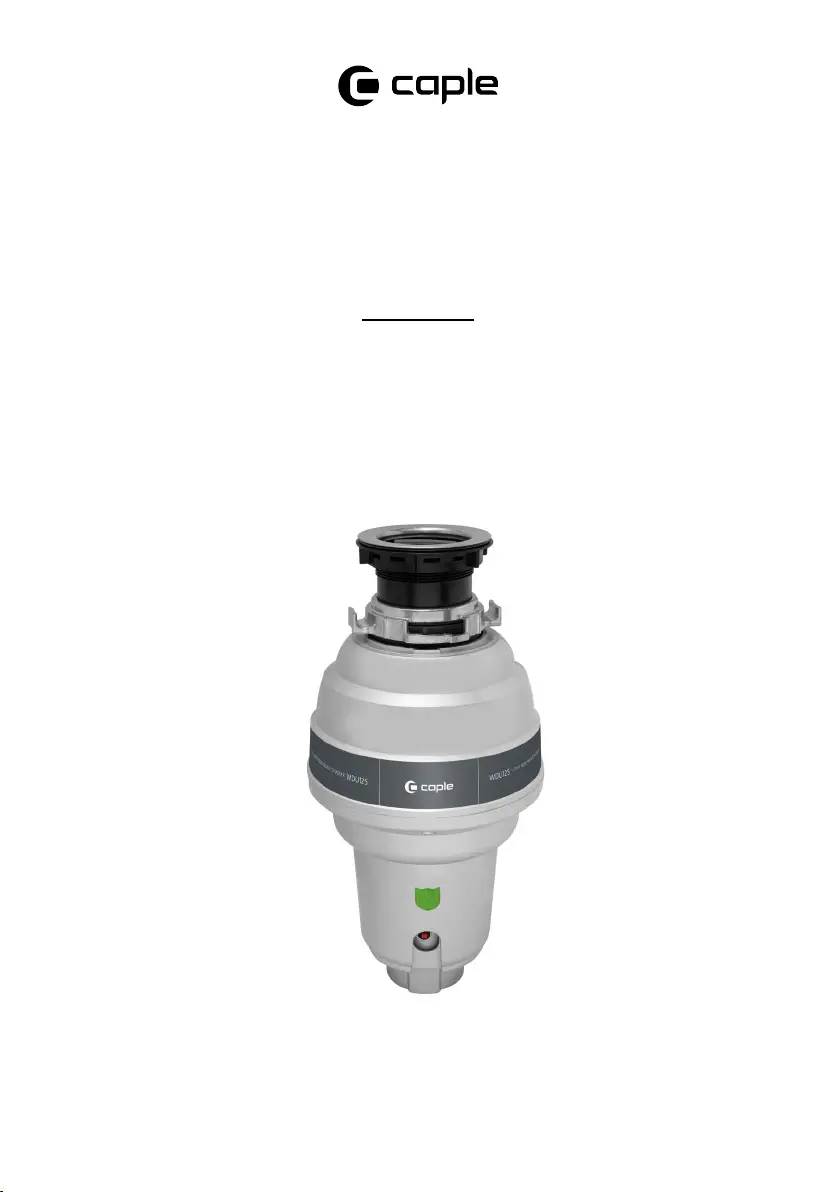

Wa s t e D i s p o s a l U n i t
I n s t r u c t i o n M a n u a l
W D U 1 2 5
Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk
Instruction manual WDU1252Please keep this instruction manual for future reference
C O N T E N T S
Instructions 3
Safety Instructions 4
Environmental Protection 6
Dishwasher Connection 7
Installation Of Mounting Assembly 7
Electrical Connections 9
Attaching Discharge Elbow 12
Operating Instructions 13
Cleaning And Maintenance 14
Installations Dimensions 14
Troubleshooting 15
Air Switch Assembly Instructions 16
Caple Service contact details 18
Instruction manual WDU125 3
Please keep this instruction manual for future reference
I N S T R U C T I O N S
Read these instructions carefully and completely before
using your Waste Disposal Unit, keep it in a convenient
place for reference when necessary.
NOTE: This Waste Disposal Unit has been designed to
operate at 220/240V~, 50/60 Hz household current
exclusively. Using any other voltage or Hz adversely affects
performance, and invalidates the warranty.
CAUTION: Be sure to review the Safety Instructions
Warning and Electrical Connection section before using
disposer.
N O T E :
Model information and serial number appears on the
rating label affixed to bottom of the disposer. For your
convenience,write down the model and serial numbers
prior to installation.
Instruction manual WDU1254Please keep this instruction manual for future reference
S A F E T Y I N S T R U C T I O N S
Instructions pertaining to a risk of fire, electric shock or
injury to persons. Save these instructions.
W A R N I N G :
When using electrical appliances, basic precautions should
always be followed, Including the following:
-Read all instructions before using the waste
disposal unit.
-To reduce the risk of injury, close supervision is necessary
when an appliance is used near children.
-Do not put fingers or hands into a waste disposer.
-Turn the power switch to the off position before
attempting to clear a jam or remove an object from
the disposer.
-When attempting to loosen a jam in a waste disposer,
use a long wooden object such as a wooden spoon or
the wooden handle of a broom or mop.
-When attempting to remove objects from a waste
disposer use long-handled tongs or pliers. If the disposer
is magnetically actuated, non-magnetic tools should
be used.
-To reduce the risk of injury by materials that may be
expelled by a waste disposer, do not put the following
into a disposer: clam or oyster shells; caustic drain
cleaners or similar products; glass, china or plastic;
large whole bones; metal, such as bottle caps, tin cans,
aluminium foil or utensils; hot grease or other hot liquids.
Instruction manual WDU125 5
Please keep this instruction manual for future reference
-When not operating a disposer, leave the stopper in
place to reduce the risk of objects falling into
the disposer.
-Do not operate disposer unless splash guard is in place.
-For proper grounding instructions see the electrical
connection section of this manual.
-Installation of this appliance must be done in accordance
to local plumbing codes and laws.
-If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent, or authorized person in
order to avoid hazard.
-This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
-Children should be supervised to ensure that they do not
play with the appliance.
Instruction manual WDU1256Please keep this instruction manual for future reference
E N V I R O N M E N TA L P R OT E C T I O N
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is
marked according to the European Directive on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The symbol on the product indicates that this
product may not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. Disposal must be carried
out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
C E D E C L A R AT I O N S O F C O N F O R M I T Y
This appliance has been manufactured to the strictest standards and complies with all applicable
legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
Instruction manual WDU125 7
Please keep this instruction manual for future reference
» Using a drill, drill out the entire plug, (see 2A). When knock
out plug falls into disposer, you may remove it or grind it
up when the disposer is used. This will not damage the
disposer in any way, but may take some time to grind).
» Connect dishwasher hose (see 2B) using hose clamp. Make
sure all plumbing connections are tight and in accordance
with all plumbing codes and ordinances. Run water and
check for leaks.
KNOCK/
DRILL OUT
PLUG
RUBBER
HOSE
DI WSH ASHER
HOSE
*
AIR GAP
*Air rgap may not be equi ed fo alr r l
installations. heck local plumbin C g
codes.
DRAIN
DI O RSP SE
SUPPORT RING
CUSHION MOUNT
MOUNT RING
SINK FLANGE
SINK FLANGE
GASKET
FIBER GASKET
* REMOVABLE SPLASH
GUARD
2A
2B
3A
READ COMPLETELY BEFOR E STARTING
NOTE:
Pay close attention to the order of mount assembly
parts, as they have been correctly assembled by the
factory (see 3A). Also, reference the cushion mount
detail in illustration 3G for the proper position of the
cushion mount.
Try practicing this assembly before you get under the
sink to get the “feel” of how the parts fit together.
» Disassemble mount assembly from disposer
by turning mount ring to the left (clockwise) and
remove.
D I S H W A S H E R C O N N E C T I O N
If you are utilizing a dishwasher, complete the following procedure. If dishwasher is not to be
connected go on to ‘Installation of mounting assembly’.
I N S TA L L AT I O N O F M O U N T I N G A S S E M B LY
Instruction manual WDU125 9
Please keep this instruction manual for future reference
I M P O R TA N T N O T I C E :
C U S H I O N M O U N T D E TA I L
When the cushion mount is installed correctly,
the lip of the sink flange fits into the groove on
the inside of the cushion mount and mount ring
can be pulled downward over cushion mount
and will be free to rotate. The bottom bead of
the cushion mount acts as a gasket between
the bottom of the sink flange and the top of the
disposer. See illustration 3G.
GROOVE
BOTTOM
“LIP” OF
SINK
FLANGE
MOUNT RING
SUPPO RT
RING
SINK
BOTTOM
BEAD
CUSHION
MOUNT
3G
E L E C T R I C A L C O N N E C T I O N S
WARNING:
This appliance must be earthed. In the event of a malfunction, Earthing provides
a path of least Resistance for the electrical current, Thus reducing the risk of electrical Shock.
The rating for this disposer is 220/240V~, 50/60 Hz and should be connected to a main
distribution board or consumer unit.
Prior to connecting the electrical supply, the installer must be thoroughly familiar with electrical
power and procedures. If the installer is not, an electrician should
be contacted.
Instruction manual WDU12510 Please keep this instruction manual for future reference
WHEN USING THE ATTACHED PRE-
WIRED MOLDED PLUG AND LEAD
(SEE 4A).
This waste disposer is engineered to be
connected to a 220/240v~-50/60 Hz electrical
supply through the attached three-pin plug
and into a wired Socket. The disposer must be
protected by a BS 1363 13 amp fuse. The fuse
is included within the molded plug and lead,
attached to the Disposer.
The 13 amp double pole switched spur switch
should be positioned higher Than the sink
worktop and at a minimum of one meter from
the side of the sink, away from water splashes
and out of the reach of children. This Spur switch
must be a double pole with at least 3mm contact
separation In each pole. 20 Amp dp switches BS
3676 meet this condition.
To avoid accidentally leaving the disposer
running, a switch with a neon Indicator lamp is
suggested. A 13 amp asta approved fuse, to BS
1363 Must be fitted in the fuse carrier of this
spur switch.
ELECTRICAL CONNECTIONS:
Simply insert the plug into the socket wired as previously described.
WHEN NOT USING THE PRE-WIRED PLUG BUT WIRING DIRECT WITH FIXED
WIRING (SEE 4B).
The switches used must be double pole type and have at least a 3mm Contact separation in each
pole (20 amp dp switches to BS 3676 meet This requirement).
Prepare the tips of the wires of the electrical lead and attach to the junction Box. Disconnect the
junction box from the electrical supply before Making the following connections:
13 AMP FUSED
DOUBLE POLE
SWITCHED SPUR
WALL MOUNTED
PLUG SOCKET
ELECTRICAL CONNECTION FOR
DISPOSER PROVIDED WITH PRE-
WIRED MOLDED PLUG AND LEAD .
For Continuous Feed Only - Not Batch Feed
13 AMP FUSED
DOUBLE POLE
SWITCHED SPUR
WALL MOUNTED
13 AMP FUSED
SPUR MOUNTED
UNDER SINK
4A
4B
Instruction manual WDU125 11
Please keep this instruction manual for future reference
The green and yellow wire must be connected to the terminal marked in One of the
following ways:
»With the letter “E”
»By the earth symbol ( )
»Coloured green or green and yellow.
The brown wire must be connected to the terminal that is marked with The letter “L”.
The blue wire must be attached to the terminal that is marked with the Letter “N”.
NOTE:
As your disposer has a molded plug on the lead and the plug Is not to be used, cut it off and
dispose of it wisely. A molded plug with A loose lead with disconnected wires can be hazardous
as an electrical Shock hazard could occur should such a plug be inserted into a 13 amp Socket
anywhere within the home.
WARNING:
THIS APPLIANCE MUST B E EAR THED.
In the event of a malfunction of breakdown, earthing reduces the risk of shock. This disposer must
be connected to an earthed, metal, permanent wiring conductor and connected to the equipment
earthing terminal or lead on the disposer.
GR OUNDING INSTRUCTIONS:
For waste disposers equipped with a grounded plug-in power cord.
» This appliance must be grounded. In the event of a malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric shock. This
appliance is equipped with a cord having an equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances. If the supply cord is damaged it
must be replaced by the manufacturer, its service agent or similarly qualified person in order to
avoid a hazard. The appliance must be installed so that reset button is readily accessible.
Instruction manual WDU12514 Please keep this instruction manual for future reference
C L E A N I N G A N D M A I N T E N A N C E
DO NOT ATTEMPT TO LUBRI CATE YOUR DISPOSER
The motor is permanently lubricated. The disposer is self cleaning and scours its internal parts with
each use.
WARNING:
Never put bleach or chemical drain cleaners into the disposer, as they cause serious corrosion of
metal parts. If used, resulting damage can be easily detected and all warranties are void. Mineral
deposits from your water can form on the stainless steel turntable, giving the appearance of rust.
Do not be alarmed, the stainless steel turntables used will not corrode and can be cleaned
accordingly.
I N S TA L L AT I O N S D I M E N S I O N S
SINGLE BOWL
255mm approx
Instruction manual WDU125 15
Please keep this instruction manual for future reference
T R O U B L E S H O OT I N G
Before seeking repair or replacement, we recommend that you review the following:
LOUD NOISES:
(Other than those during grinding of small bones and fruit pits): These are usually caused by
accidental entry of a spoon, bottle cap or other foreign object. To correct this, turn off electrical
switch and water. After disposer has stopped, remove splash guard, remove object with long
handled tongs, and replace splash guard.
TURNTABLE
REMOVE
SPLASH
GUARD
9A
UNIT DOES NOT START:
Unplug power cord or turn either the wall switch or breaker box
switch to “OFF” position, depending on your model and wiring
configuration. Remove stopper and/or splash guard. Check to see if
turntable will rotate freely using a wooden broom handle. If turntable
rotates freely, replace splash guard and check reset button to see if it
has been tripped. Reset button is red and located on the front of the
disposer. Push button in until it clicks and remains depressed.
Reset Button should be pressed only once. If reset button has not been tripped, check for shorted
or broken wire connecting to disposer. Check electrical power switch, fuse box or circuit breaker.
If wiring and electrical components are intact, the unit may have internal problems that require
service or replacement.
IF TURNTABLE DOES NOT ROTATE FREELY:
Turn off disposer, then check for any foreign object lodged between the turntable and grind ring.
Dislodge object by rotating table with a wooden spoon or broom handle (see 9A) and remove
object. If no foreign object is present, there may be internal problems.
Instruction manual WDU12516 Please keep this instruction manual for future reference
LEAKS:
If the unit leaks at the top, it may be due to:
»Improper seating of sink flange (gasket centering, putty or tightening).
»Support ring not tightened properly.
»Defective or improperly installed cushion mount.
If unit leaks at the waste elbow, leak may be due to improper tightening of elbow flange screws.
DO NOT PRESS THE RED RESET BU TTON UNLESS POWER IS SWITCHED OFF AT
THE POWER POINT.
Instruction manual WDU125 17
Please keep this instruction manual for future reference
A I R S W I T C H A S S E M B LY I N S T R U C T I O N S
D I S P O S E R A I R S W I T C H A S S E M B LY I S S U P P L I E D I N T H R E E
B A S I C PA R T S :
1.
2.
3.
4.
5.
6.
The Actuator which consists of:
1. Actuator Button
2. Actuator Nut
3. Actuator Outlet (Black Threaded portion)
The Air Switch is installed into the base of the
disposer. Only the air tube connection nozzle
(5) is visible from the outside of the disposer.
Air Tube Assembly which consists of:
4. Air Tube-Clear or black
5. Sensor Inlet nozzle to connect air tube
Actuator Image Representational
Instruction manual WDU12518 Please keep this instruction manual for future reference
I N S TA L L AT I O N A N D O P E R AT I N G I N S T R U C T I O N S :
A. Drill a hole of 33mm to 35mm into the sink or worktop where the Actuator Button (1) is to
be placed.
B. Insert, from the top, the Actuator Outlet (3) through the drilled hole and secure by tightening
the Actuator Nut (2).
C. Firmly connect Air Tube (4): one end to the Actuator Outlet (3) and one end to
Sensor Inlet (5).
D. Plug Disposer Power Cord (6) into main electrical service.
E. The Air Switch is supplied in the off position. To turn on the disposer, press Actuator Button (1).
To turn off, press Actuator Button again.
F. For use with the wall switch - first plug the disposer power cord into the outlet controlled by
the wall switch. Then install the tube and actuator button on the disposer and press the button
to place the air switch in the “on” position. Note: The disposer will turn on at this time. Then,
remove the tube and button. The disposer can now be controlled with the
wall switch.
Produktspecifikationer
| Varumärke: | Caple |
| Kategori: | Inte kategoriserad |
| Modell: | WDU125 |
Behöver du hjälp?
Om du behöver hjälp med Caple WDU125 ställ en fråga nedan och andra användare kommer att svara dig
Inte kategoriserad Caple Manualer
25 September 2024
20 September 2024
18 September 2024
13 September 2024
13 September 2024
Inte kategoriserad Manualer
- BlueDri
- Jensen
- Autoscript
- Realme
- FIMI
- I-Tec
- Triangle
- Ferguson
- EMeet
- MSolutions
- Arista
- Ocean Matrix
- VintageView
- Geze
- Team
Nyaste Inte kategoriserad Manualer
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
